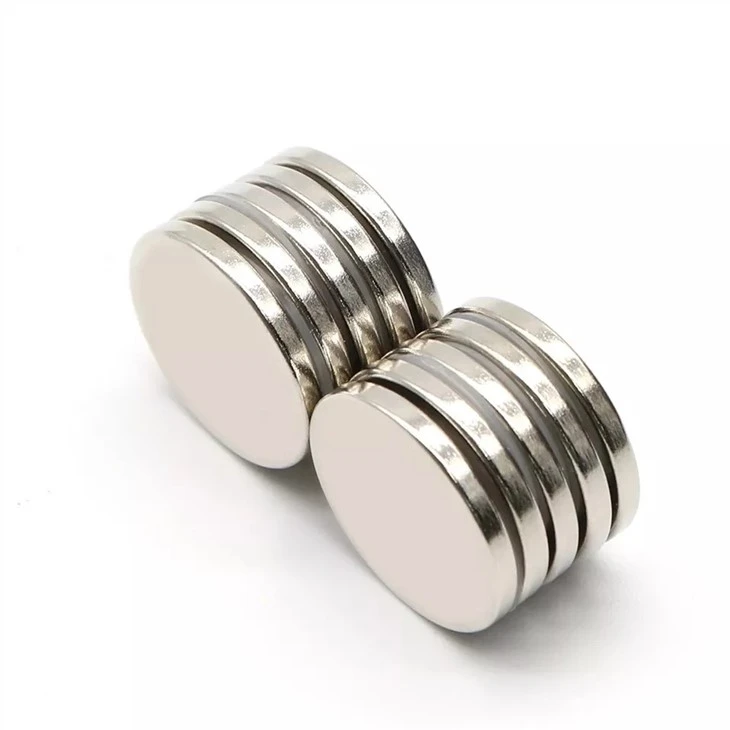

Disk magnet size customization
Parameter Information
Brand: QCM
Name: Disc Magnet
Magnetization direction: axial magnetization
Surface Coating: Nickel Plated
Material: rare earth magnet
Operating Temperature: No demagnetization for use up to 80℃.
Precautions: Be careful of fragile, be cautious of pinching hands, dry storage
Xiamen Qianci Magnet Technology Co., LTD is in the Jimei District of Xiamen City, China. It is a private magnet manufacturer integrating production, sales, and service. The company's specialty products mainly include NDFEB magnets, SMCO magnets, Alnico magnets, rubber magnets, and ferrites. Five lines of magnetic products, including ferrite magnet and s, widely used in audio, electronics are based on the business philosophy of "integrity, struggle, enterprise", the attitude with which the company strives to survive quality-oriented", and "quality-oriented, attention to detail" spiral keep rate the brand, andKeep developing the brand. Qianci Magnets has established a reputation for high, quality, service, and premium service at home and abroad, to meet the requirements of new and old customers.
Disk magnet size customization
| Size | Outer Diameter/Length | Inner diameter/Width | Thickness | |
|
|
Maximum | 150mm | 50.00mm | |
| Minimum | 1mm | 0.50mm | ||
|
|
Maximum | 100mm | 100mm | 50.00mm |
| Minimum | 0.5mm | 0.50mm | 0.50mm | |
|
|
Maximum | 150mm | 140mm | 50.00mm |
| Minimum | 1.00mm | 0.60mm | 0.50mm | |
|
|

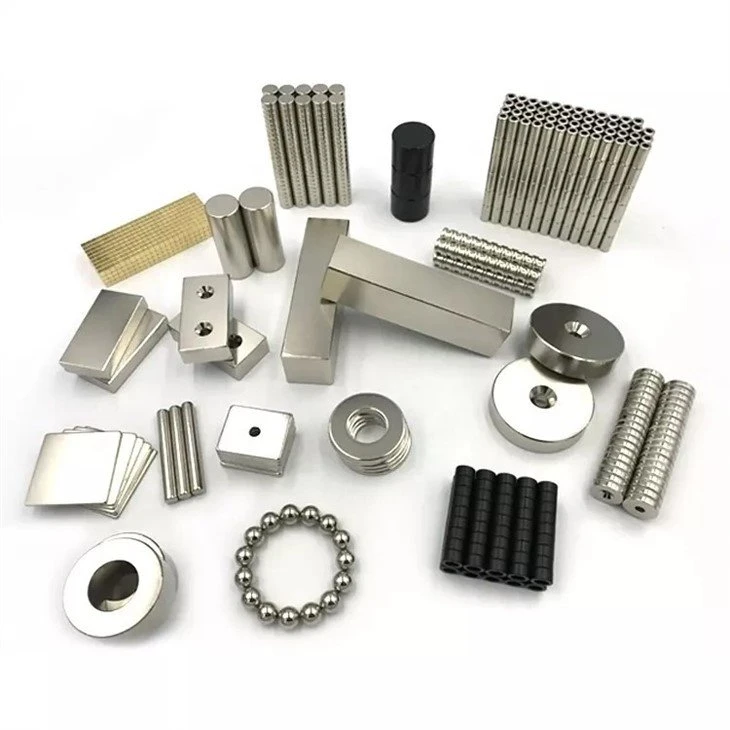

Segment, Arc, and other irregular shapes can be made according to the customer's samples or drawings. | |||
| Coating | Code | Color | Minimum Local Thickness |
Memrge etching time | Working temperature | |||
| Neutral salt Spray test |
Humid heat test | Pressure Vessel test |
||||||
| Ni(Barrel plating) | Ni | Silver | 10 | 24 | 300 | 48 | <200 | |
| Ni(rack plating) | Ni | Silver | 10 | 8 | 300 | 48 | ||
| NiCuNi(barrel plating) | NiCuNi | Silver | 10 | 72 | 500 | 48 | ||
| NiCuNi(rack plating) | NiCuNi | Silver | 10 | 48 | 500 | 48 | ||
| Zinc | White zinc | Zn | White Zinc | 4 | 24 | 48 | / | <170 |
| Color zinc | CZn/Zn | Color Zinc | 6 | 48 | 48 | / | ||
| Chemical plating Ni | Ni | Silver | 12 | 96 | 500 | 48 | <200 | |
| Electrophoresis epoxy | Epoxy | Black, grey | 10 | 48-96 | 120 | 0-24 | <130 | |
| Parylene | Parylene | Colorless and transparent | 12.7-25.4 microns Meet the MIL-I-46058C standard |
48 | / | / | <130 | |
In order to get a suitable quote quickly from us, please provide us with the following:
1. The grade of neodymium magnet you need, and you can choose the one below you prefer;
The number(such as 35, 42, 52, etc) represents magnetic strength, N52 is stronger than N35.
The Letter (M, H, SH, etc) represents the working temperature, and the max working temperature of TH(AH) is the highest.
2. Dimensions of the neodymium magnet you need, drawing will be perfect.

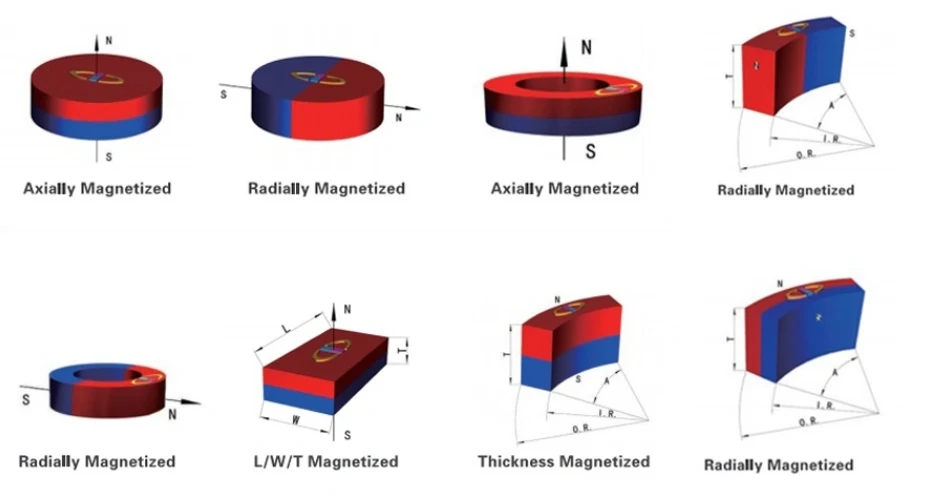

3. Magnetized Direction, Axially, Radially, Thickness etc.
4. Coating, like Nickel, Zinc, Black Epoxy, Au, etc.
5. Quantity
6. Shipping Method, By Express, By Air, or By Sea.
7. Other requirements (Package, Inspection, etc)
