Magnetic Chuck

Manufacturer of Magnetic Chuck

Xiamen Qianci Magnet Technology Co., Ltd. was founded in 2000, has a history of more than 20 years, ourcompany is located in Xiamen, Fujian province, is a specialized production and sales of magnet materials, magnet components suppliers. has established a complete production line for magnetic components. Production processes such as bending, welding, cutting and stamping can be carried out to create customized shapes and sizes. The factory is also equipped with advanced testing equipment to ensure that each batch of products undergoes high-standard quality inspections before leaving the factory.

First 12 Last 1/2

Magnetic chucks are an alternative to traditional workpiece holding machines because they use the magnetic force of permanent magnets to clamp and hold the workpiece in place. Permanent magnet sucker is very suitable for holding heavy workpieces, there are two kinds of fine magnetic pole and standard magnetic pole. Depending on your application, use lightweight thin chucks of various diameters to maximize the use of your machining space.

Why Choose Us

Product Application

The company focuses on the research, development, and production of precast concrete magnets, fishing magnets, magnet hooks, and magnetic separators. Our products are widely used in precast concrete, food, medicine, chemicals, minerals, industrial filtration, recycling, and other industries.

Quality Service

Service Guarantee: We maintain high standards of excellence and strive for 100% customer satisfaction! If you are satisfied with our products and services, please leave us positive feedback, and you will receive 5 feedback points.

Fast Delivery

Shipping Guarantee: Package information can be tracked. If you have not received your package after 45 days, please contact us, and we will issue a full refund.

Our Certificate

We believe that our company's success is directly related to the quality of the products we offer. They meet the highest quality standards as stipulated by ISO 9001, ISO 14000:14001, SGS guidelines, and our stringent quality control system.

Benefits of Magnetic Chuck

Improved Machining Accuracy

A magnetic chuck holds the workpiece evenly across its entire surface, reducing the risk of deformation or warping. This leads to higher precision in grinding, milling, and turning operations.
Reduced Setup Time

Compared to mechanical clamping methods, magnetic chucks enable faster workpiece setup. This leads to increased productivity, especially in high-volume manufacturing environments.
Enhanced Workpiece Accessibility

Since a magnetic chuck holds the workpiece without mechanical clamps, all sides of the material are easily accessible for machining. This allows for more complex cuts and shapes.
Increased Safety

With a magnetic chuck, there are no moving parts that can loosen over time, reducing the risk of workpiece detachment. This makes machining operations safer.

Types of Magnetic Chuck

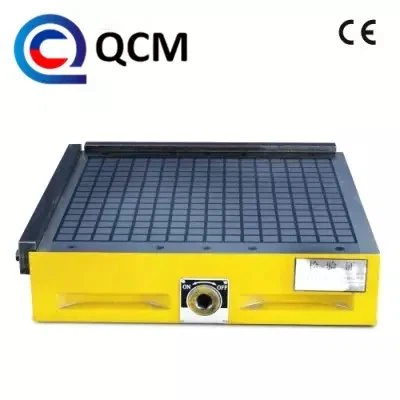

Permanent magnetic chuck
With permanent poles and constantly pull on the part.

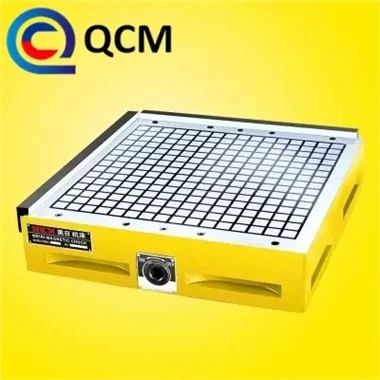

Electromagnetic chuck
Which is engaged only while the electrical current is on. This workholding chuck has the advantage of being able to turn the magnetic pull off, releasing the metal part quickly and easily. The disadvantage of this chuck is that it releases the part when the electrical current is stopped, often putting the worker at risk of injury if it happens during a work process.

Electro-permanent magnetic chuck
A hybrid of the permanent and electromagnetic type. This device locks the part with a jolt of electricity and then uses another jolt of electricity to unlock it. If there is a power outage while working a part, the chuck continues to hold tightly. Each magnet has an electrical coil around it that can reverse the polarity of the magnet extremely quickly. Another function of the coil is to control the amount of magnetic pull the magnetic chuck exerts.

Application of Magnetic Chuck

Metal Cutting Processing

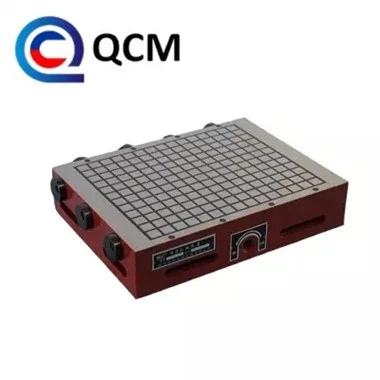

Magnetic chucks are widely employed in metal cutting processes such as turning, milling, grinding, planing, and drilling, among others. They can be used for general machine tool applications and machining center applications without any changes required to the original design of the machine tools.

Quick Mold Change

This name is critical in quick mold change measures, particularly in injection molding machines and ceramic dry presses. It does not require a lot of alteration as only one control is needed by it to keep track of time refreshing the molds at high speed; this is possible because of injection molding machines that have electro-permanent magnetic chucks, which become profitable with more significant profit margins and thus most users prefer them over other types.

Magnetic Lifting

Magnetic chucks are used in lifting/handling operations, primarily on individual steel plates related to industries such as automotive axles, car chassis, or container shipbuilding. For example, steel plates handled using an electro-permanent magnetic lifting system will be flat-picked up from sticking places, making it suitable for these cases.

Welding Clamping

Welding involves using magnetic chucks as efficient clamping devices when working on pipe sections and steel plates. Electromagnetic permanent magnets for clamp welding are superior to any other current form of clamping due to their powerful adhesive capabilities, dependability, and user-friendliness.

Product Description

Model	Size(Mm)			Magnetic Block	Magnetic Force Block	Total Suction
Model	A	B	H	Magnetic Block	Magnetic Force Block	Total Suction
1530C	150	300	55	116	15	1740
1540C	150	400	55	184		2760
2040C	200	400	65	207		3105
3040C	300	400	65	368		5520
2025B	200	256	50	56	25	1400
2025A	253	252	90	90		2250
2040A	200	400	80	136		3400
3030A	300	300	90	132		3300
3040A	300	400	90	176		4400
3040B	293	376	60	132		3300
30100A	300	1000	90	352		8800
3060A	300	600	90	275		6875
3535A	350	350	90	183		4575
4040A	400	400	90	240		6000
4050A	400	500	90	300		7500
4060A	400	600	90	375		9375
4080A	400	800	90	480		12000
5050A	500	500	110	400		10000
50100A	500	1000	110	800		20000

Lead Time

Quantity (sets)	1 - 100	101 - 500	501 - 1000	> 1000
Lead time (days)	7	12	20	To be negotiated

Packaging & Shipping

productcate-666-666 productcate-666-994

Certifications

FAQ

Q: Can you provide customized services if I have specific needs?

A: Yes, we can provide customized services. We will formulate corresponding plans based on the customer's needs to meet their special requirements.

Q: How to get prompt quotation?

A: Kindly offer us your requirements about magnet grade, size, quantity, coating, magnetic direction, work tempreture ect.. Then best price will be offered during 24 hours.

Q: What's your MOQ ?

A: We have no strict MOQ , if we can do , we will try our best to cooperate. If any questions as small quantity , we will be open to communicate with you for better solution.

Q: What materials can a magnetic chuck hold?

A: A magnetic chuck is designed to hold ferrous metals such as steel, iron, and cobalt-based alloys. Non-ferrous metals like aluminum or brass are not affected by magnetic fields.

Q: Do magnetic chucks require electricity?

A: Permanent magnetic chucks do not require electricity. Electro-permanent chucks only need power to activate or deactivate the magnetic field.

Q: How do I maintain a magnetic chuck?

A: To maintain a magnetic chuck, clean its surface regularly, check for wear, and ensure proper storage when not in use to prevent magnetic degradation.

Q: How strong is a magnetic chuck?

A: The magnetic force can be as strong as up to 16kg/cm², and will not fade along with the time; the magnetic line of force won't penetrate through the surface of workpiece, won't magnetize the tool and the spindle of the machine, and do not affect the machining accuracy and chip removal. Deformation-free clamping.

Q: How does a magnetic chuck turn on and off?

A: With the switch lever in the OFF position, the magnetic field is closed within the magnet. In the ON position, the switch lever moves the magnets inside the magnetic device, changing their polarity as a result. This opens the magnetic field to the outside of the magnet.
