Ndfeb Neodymium Magnet

Ndfeb Neodymium Magnet

It is easily formed into various sizes, widely used in motor, sensor, meter, sound device, magnetic separator, automobile, aviation, aerospace and other applications.

Send Inquiry

Product Introduction

Name:	Magnet neodymium
Material:	Sintered NdFeb
Grade & Working Temperature:	Grade	Temperature
	N35-N52	80ºC
	30M-52M	100ºC
	28H-50H	120ºC
	28SH-48SH	150ºC
	28UH-42UH	180ºC
	28EH-38EH	200ºC
	28AH-33AH	200ºC
Magnet Shape:	Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available
Magnet Coating:	Ni,Zn,Au,Ag,Epoxy,Passivated,etc
Features:	The most powerful permanent magnet, offers a great return for cost & performance, have the highest field/surface strength(Br), high coercivity(Hc), can be easily formed into various shapes and sizes. Be reactive with moisture and oxygen,usualy supplied by plating (Nickel, Zinc, Passivatation, Epoxy coating, etc.).
Applications:	Sensors,motors,filter automobiles,magnetics holders,loudspeakers,wind generators, medical equipments, etc.

Grades of Neodymium Magnet

Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number following the 'N'),

the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter following the grade refers to the temperature rating of the magnet.

If there are no letters following the grade, then the magnet is standard temperature neodymium.


Xiamen Qianci Magnet Technology Co., LTD is located in Jimei District of Xiamen City, China. It is a private magnet manufacturer integrating production, sales and service. The company's specialty products mainly include NDFEB magnets, SMCO magnets, Alnico magnets, rubber magnets and ferrites. Five lines of magnetic products, including ferrite magnets, widely used in audio, electronics are based on the business philosophy of "integrity, struggle, enterprise", the attitude with which the company strives to survive dedicated service", and "quality oriented, attention to detail" spirit to create the brand, andKeep developing the brand. Qianci Magnets has established a reputation for high quality, high efficiency and premium serviceAt home and abroad, to meet the requirements of new and old customers.

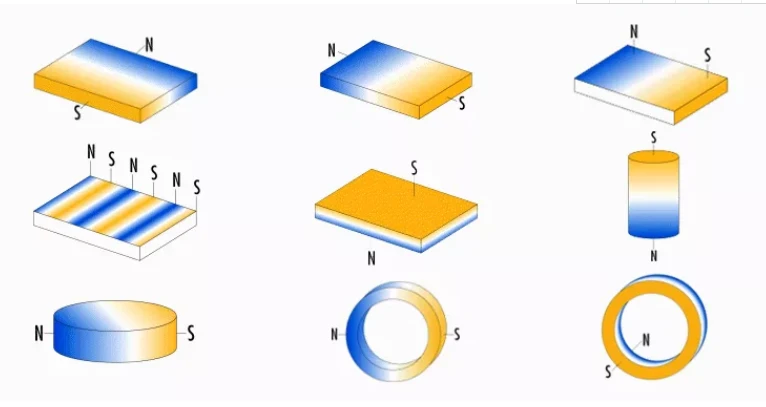

Common direction of magnetization showed in picture bellow:

1> Disc, cylinder and Ring shape magnet can be magnetized Axially or Diametrically.

2> Rectangle shape magnets can be magnetized through Thickness, Length or Width.

3> Arc shape magnets can be magnetized Diametrically, through Width or Thickness.

NdFeB magnets can be found in a variety of applications including high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors and loudspeakers.

Professional Service

When you contact us, we will provide you with the following services professionally and enthusiastically: 1. 24-hour product service for professional business personnel 2. The most up-to-date product catalogue 3. Accurate quotation of products you like 4. Free ODM & OEM sample service 5. Provide one-stop purchasing service for related products free of charge 6. One-stop customs clearance service to support all trade terms 7. Free visit to the factory reception service 8. Full order tracking data visualization service and free after-sales technical service. 9. International product sales consultant market analysis, planning, marketing and other services
