Earth Magnet Hooks

Earth magnet hooks are highly useful and versatile tools made from N36 neodymium magnets encased in a steel cup with a threaded end hook. N36 neodymium magnets are compact yet incredibly strong; a magnetic hook with a 48mm cup diameter can generate a vertical magnetic pull of up to 180 pounds on a flat iron or steel surface. The Q235 mild steel shell is also electrolytically plated with three layers of nickel, copper, and nickel (Ni-Cu-Ni) to provide maximum protection against corrosion and oxidation. Neodymium rare earth magnets are axially magnetized along their thickness, resulting in optimal vertical pull strength.

Available in a variety of sizes with M4, M5, M6 and M8 threaded end hooks

Details

·The hook magnet can support up to 180 pounds.

·The 180 lbs capacity is based on horizontal application; reduce this capacity by two-thirds if used vertically.

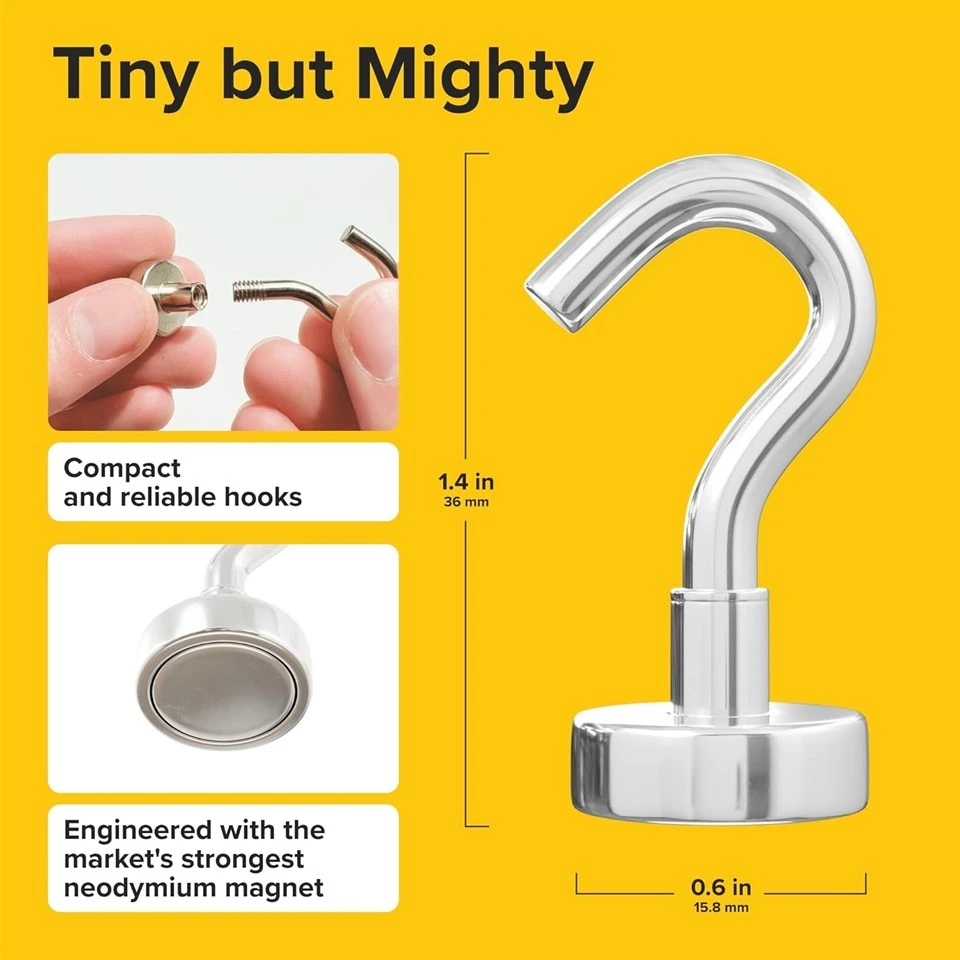

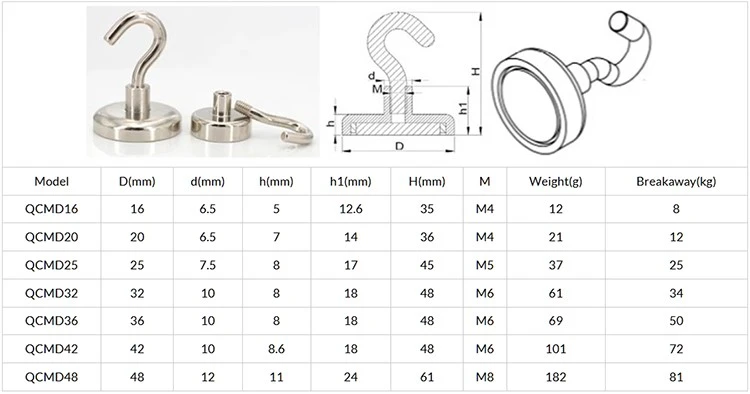

·Hook size: 16-48 mm in diameter, 35-61 mm in height.

·The eyebolt is removable and can be replaced with other threaded components. The thread size ranges from M4 to M8.

·Material: Q235 low-carbon steel shell with neodymium magnet

·Grade: N35-N52 (Support customized service; choose high-grade materials if a strong magnetic force is required.)

·Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)

·Magnetization: Along the thickness direction

·Maximum Pulling Force: 180 lbs

·Keep the hook magnet out of reach of children.

Magnets will maintain their nominal pull when placed vertically, such as on a steel beam or the underside of a table. Magnets mounted laterally or horizontally, such as on the side of a refrigerator or filing cabinet, will only maintain 30% or less of their nominal pull due to gravity and the possibility of the magnet sliding off the surface it is attached to.

Earth magnet hooks are designed to hang objects from metal surfaces, making them ideal for a variety of applications, including hanging heavy items, kitchen utensils, decorations, lights, equipment, signs, and banners. They are also effective for organizing cables, wires, and tools in sheds, filing cabinets, steel doors, cruise ships, refrigerators, and more, in settings such as warehouses, offices, and workstations. Essentially, any location with a metal surface can be transformed into a convenient storage solution.
