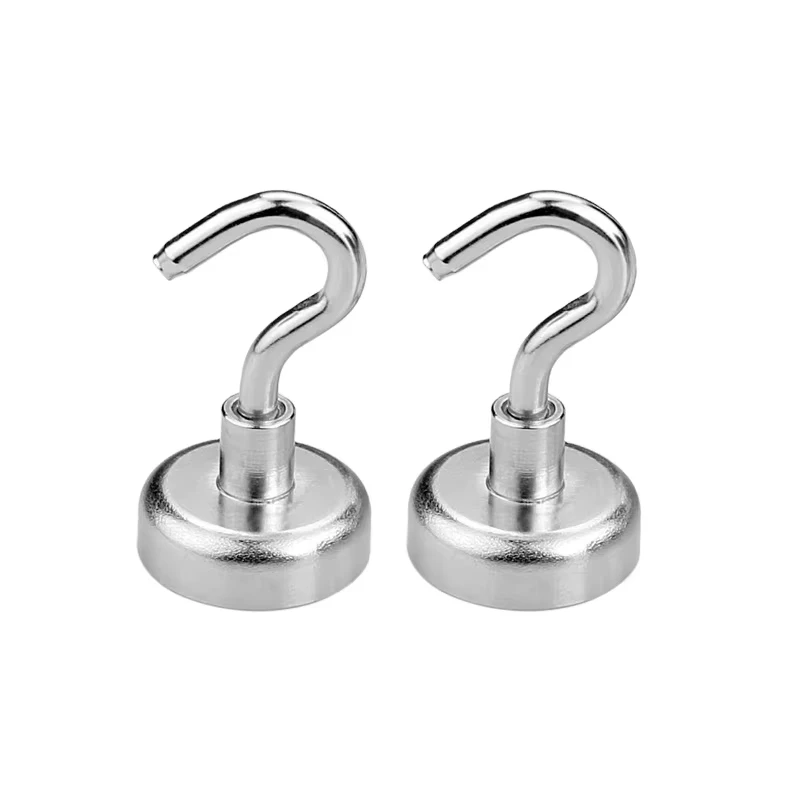

Magnet With Screw Hook
A magnet with a screw hook typically refers to a type of hook that combines the functionality of a magnetic attachment with a screw-based design, allowing for secure hanging of items on ferromagnetic surfaces. These hooks are often used in various applications, from home organization to industrial settings, due to their versatility and ease of use.
Features of Magnetic Hooks with Screw Hooks
- Magnetic Base: The primary feature is a strong magnet that allows the hook to adhere to metal surfaces without the need for drilling holes or using adhesives. This makes installation quick and damage-free.
- Screw Hook Design: The hook itself may have a screw or threaded design, which can provide additional stability and strength when hanging heavier items. Some designs incorporate a screw socket, allowing for further customization or attachment of different hook types.
- Load Capacity: Many magnetic hooks are designed to hold significant weight, with some models capable of supporting up to 112 pounds or more, depending on the strength of the magnet and the design of the hook.
|
|
||||||||
|

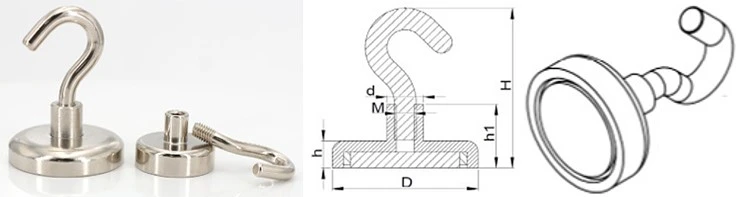

Model |
D(mm) |
d(mm) |
h(mm) |
h1(mm) |
H(mm) |
M |
Weight (g) |
Breakaway (kg) |
|
QCMD16 |
16 |
6.5 |
5 |
12.6 |
35 |
M4 |
12 |
8 |
|
QCMD20 |
20 |
6.5 |
7 |
14 |
36 |
M4 |
21 |
12 |
|
QCMD25 |
25 |
7.5 |
8 |
17 |
45 |
M5 |
37 |
25 |
|
QCMD32 |
32 |
10 |
8 |
18 |
48 |
M6 |
61 |
34 |
|
QCMD36 |
36 |
10 |
8 |
18 |
48 |
M6 |
69 |
50 |
|
QCMD42 |
42 |
10 |
8.6 |
18 |
48 |
M6 |
101 |
72 |
|
QCMD48 |
48 |
12 |
11 |
24 |
61 |
M8 |
182 |
81 |
- Materials and Coating: These hooks are often made from durable materials like neodymium magnets encased in steel, with protective coatings (such as nickel or zinc) to resist rust and corrosion, making them suitable for both indoor and outdoor use.
Applications
Magnetic hooks with screw hooks can be used in various settings, including:
- Home Organization: Ideal for hanging tools, kitchen utensils, or decorative items on metal surfaces like refrigerators or metal shelving.
- Workshops and Garages: Useful for organizing tools and equipment, as they can easily be reposition without leaving marks or holes.
- Temporary Installations: Perfect for events or exhibitions where items need to be hung without permanent fixtures.
- Outdoor Use: Some models are designed to withstand moisture and can be used for hanging items outdoors, such as plants or decorations.

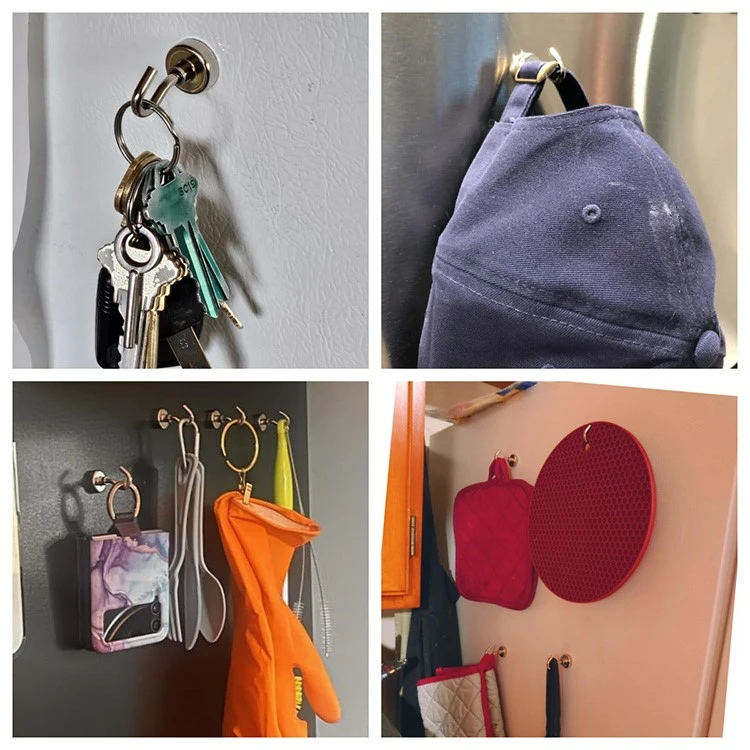

application of magnet with screw hook
Products Description
In summary, a magnet with a screw hook provides a convenient and flexible solution for hanging items securely on metal surfaces. Its combination of magnetic strength and a screw hook design allows for easy installation and removal, making it a popular choice for both home and professional use.
