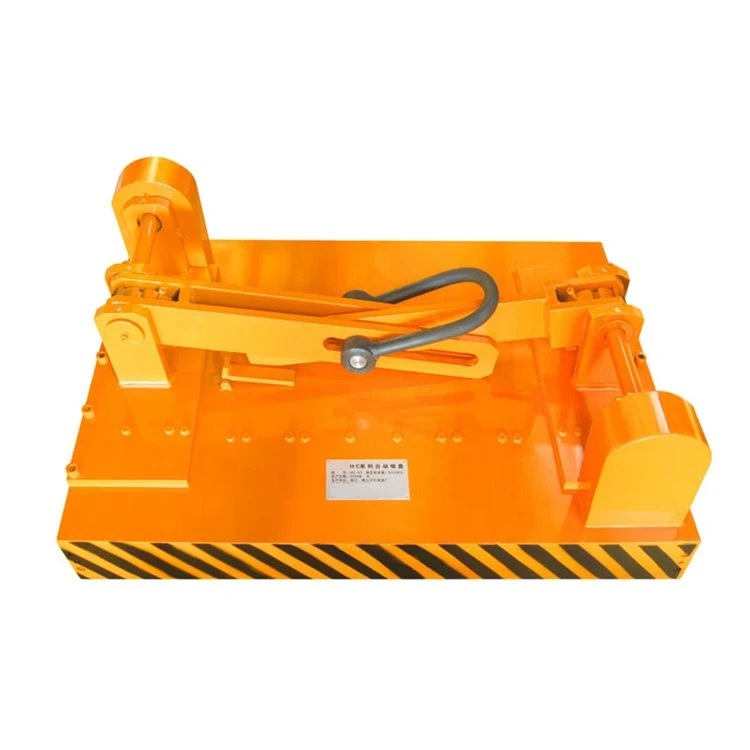

Automatic Permanent Magnet Lifter

Introduction: This is an automatic permanent magnet lifting magnet, using high-performance NdFeB magnetic material.

Safety Factor: The maximum pull-off force is 3.5 times the rated lifting force.

Operation: The automatic permanent magnet lifting magnet does not require manual operation and is controlled by the lifting of the electric crane hook.

Features and Applications

Application: Suitable for round steel, steel plate lifting, widely used in steel lifting, flat machinery parts installation and transportation, mold installation, and transportation.

Industry： It is suitable for lifting and transporting steel plates at room temperature in shipbuilding, engineering machinery, automobile, and other industries.

Advantages: easy to operate, safe and reliable, compact structure, lightweight, improved loading and unloading operation efficiency.

Working Principle

Control device: There is a control device above the automatic lifting magnet to change the direction of magnetic inductance and realize demagnetization and re-magnetization.

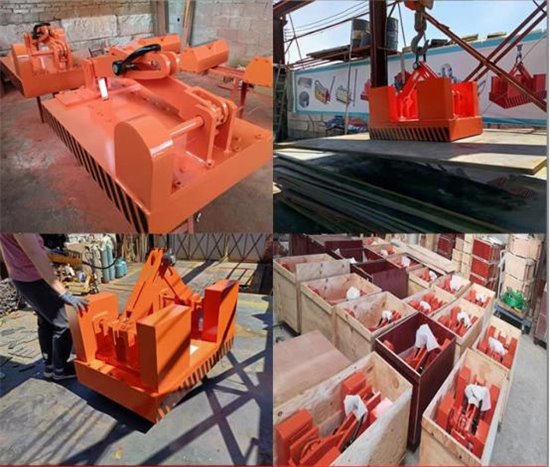

Use scene

Details

Precautionary measures

Clean the surface of the workpiece before lifting to ensure that the centerline of the lifting magnet coincides with the center of gravity of the workpiece.

Strictly prohibit overloading, the human body is strictly prohibited from passing under the workpiece, the temperature of the lifting workpiece, and the ambient temperature shall not be higher than 80 degrees, with no violent vibration or impact.

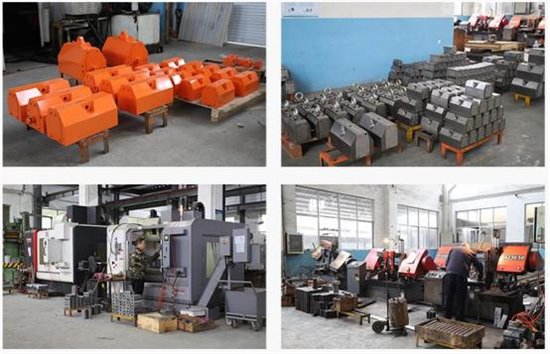

Our factory:

Our Qianci Magnet technology is advanced, with a wide range of applications and strict quality inspection. Welcome to consult.

Use：

1. Automatic Permanent Magnet Lifter is widely used as a promotion tool in the factory terminal and warehouse.

2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.

3. Using a high-performance permanent magnet, ensures power and high safety.

4. With a "V" style design at the bottom of the lifter, can lift both round steel and steel plates.

5. Maintain constant and reliable magnetism without electricity, the residual magnetism approach is naught.

6. The maximum pull-off force is 3.5 times as rated lifting force which contributes to improving the working conditions of loading operation and labor productivity.

7. The lifting has high resistance to demagnetization, the lifting value will remain constant and stable.
