Disc Shape Ferrite Magnet D6*3mm

A Ferrite disc magnet is a permanent magnet in the shape of a disc made of ferrite material.



Product Details

Name: Ferrite Disc Magnets

Features: Ferrite black magnets, strong magnets

Coercivity: 250 (KA/m)
Remanence: 4000 (T)
Intrinsic coercivity: 260 (KA/m)
Maximum magnetic energy product: 3.8 (KJ/m3)
Material grade: y25, y30, y35bh
Density: 4.8 (g/cm3)
Working temperature: 80-200 (℃)
Curie temperature: 300 (℃)

Note: Be careful of fragile. It is normal to have a few small pits on the edges and corners.

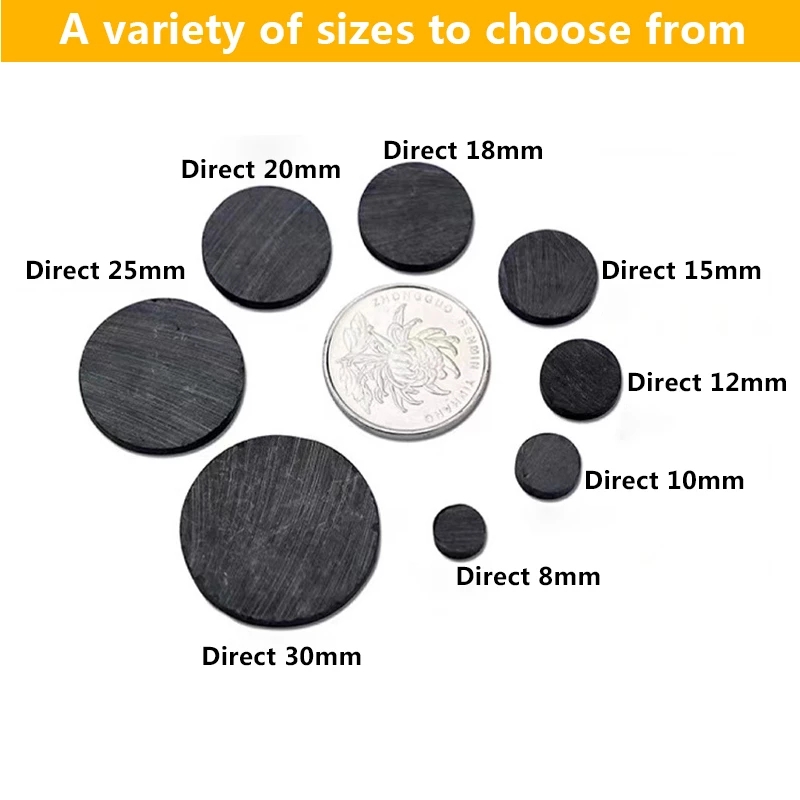

Specifications

D6*3mm

D8*2mm

D8*3mm

D8*4mm

D9*3mm

D9*4mm

D9*5mm

D10*3mm

D10*4mm

D10*5mm

D12*3mm

D12*4mm

D12*5mm

D12*6mm

D12.5*3mm

D12.5*3.8mm

D12.5*4mm

D14*3mm

D14*4mm

D15*3mm

D15*4mm

D15*5mm

D18*3mm

D18*4mm

D18*5mm

D20*3mm

D20*4mm

D20*5mm

D22*3mm

D24*3mm

D24*4mm

D25*3mm

D25*4mm

D25*5mm

D30*3mm

D30*4mm

D30*5mm

D30*6mm





Composition and characteristics



Main ingredients: SrO or BaO and Fe₂O₃ are usually the main raw materials 127.



Characteristics: It has high magnetic permeability and resistivity, stable magnetism, not easy to demagnetize, and low cost, but its magnetic force is relatively weak and its texture is brittle and fragile.



Application field



Electronic equipment field: In audio equipment such as speakers and headphones, it is used to generate magnetic fields and drive the voice coil to vibrate and make sounds; in hard disk drives, it is used to control the read and write position of the magnetic head.



Automobile field: It is used in the electric power steering system, electric seat adjustment system, car audio system, etc. of automobiles to provide magnetic fields for various motors and sensors.



Home appliance field: For example, the magnetic material used in refrigerator door seals is usually ferrite disc magnets, which can provide enough suction to keep the refrigerator door tightly closed; it is also used in the motors of home appliances such as washing machines and air conditioners.



Industrial field: In motors, generators, magnetic separators, sensors, and other equipment, it is used to generate magnetic fields or realize magnetic induction functions.



Medical device field: In some small medical devices, such as blood glucose meters and blood pressure meters, it is used to achieve certain specific functions, such as sensor triggering or data transmission.



Toys and crafts field: Because of its low cost and certain magnetic properties, it is often used to make various toys and crafts, such as magnetic puzzles, magnetic ornaments, etc.















Inner sponge paper outsourcing five floor double corrugated boxes. If you have any other package requirements. Please contact us.
