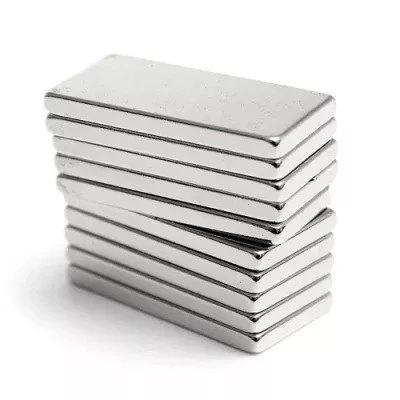

Ndfeb N45 Block Magnet
Product Name:Square Magnets
Toleranc:±1%, 0.05mm
| Product Information | ||
| Product name | Permanent, Nd Rectangular Block magnet, Neo Rectangular Block magnet, Rare earth Rectangular Block magnet | |
| Material | Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet | |
| Grade & working Temperature | Grade | Max Operating Temperatures |
| N35-N54 | 80°C (176°F) | |
| 35M-52M | 100°C (212°F) | |
| 35H-50H | 120°C (248°F) | |
| 33SH-48SH | 150°C (302°F) | |
| 28UH-45UH | 180°C (356°F) | |
| 28EH-42EH | 200°C (392°F) | |
| 28AH-40AH | 230°C (446°F) | |

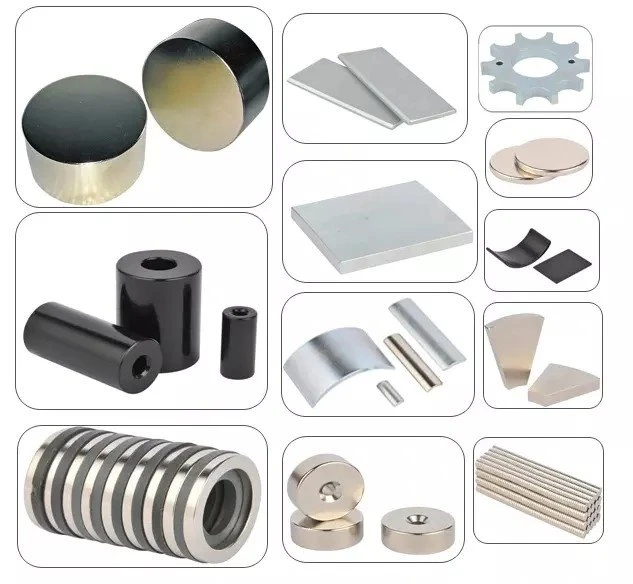

| Shape | Block or Rectangular or Cuboid, but Disc, Ring, Cylinder, Arc and Irregular shape are also available | |
| Coating | Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc. | |

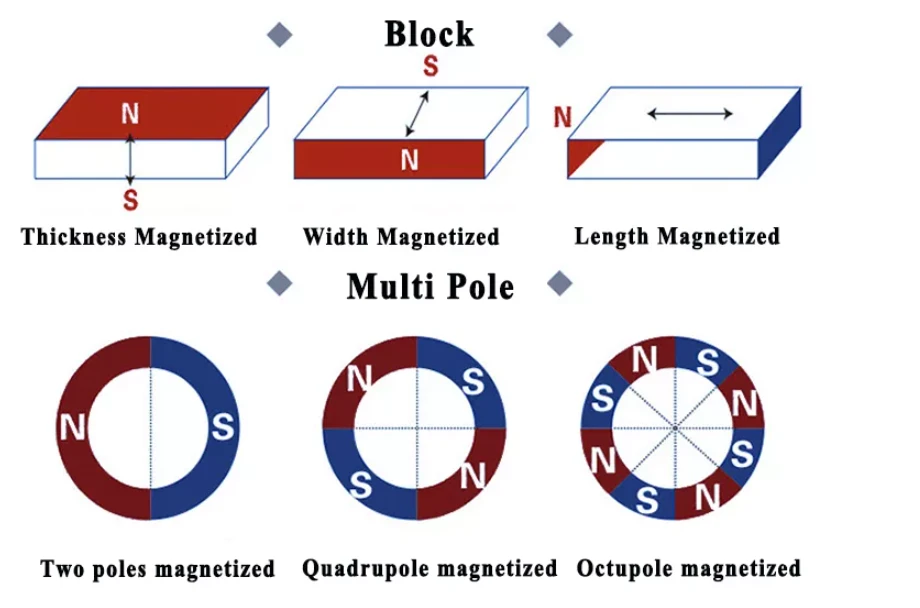

| Magnetized direction | Thickness Magnetized, but Axially, Diametrical, Multipoles and Radial magnetization are also available, Customized magnetization is welcome. | |
| Application | Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc. | |
| Certificate | ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH | |
| Packing | Standard sea or air packing, such as carton, wooden box, pallet etc. | |
| Lead time | 7 days for samples, 15-20 days for mass production. | |
| Transportation | All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea. Shipper or freight forwarder can be appointed by either purchaser or TC. | |
Xiamen Qianci Magnet Technology Co., LTD is located in Jimei District of Xiamen City, China. It is a private magnet manufacturer integrating production, sales and service. The company's specialty products mainly include NDFEB magnets, SMCO magnets, Alnico magnets, rubber magnets and ferrites. Five lines of magnetic products, including ferrite magnets, widely used in audio, electronics are based on the business philosophy of "integrity, struggle, enterprise", the attitude with which the company strives to survive dedicated service", and "quality oriented, attention to detail" spirit to create the brand, andKeep developing the brand. Qianci Magnets has established a reputation for high quality, high efficiency and premium serviceAt home and abroad, to meet the requirements of new and old customers.
1.The coatings of magnets are in paint, zinc, black zinc, nickel, nickel, copper, nickel, chromium, etc. are mainly anticorrosive
2.Neodymium iron to boron material is characterized by hard and brittle, magnetizing weight is more than 600 times its own weight, easy to suck knock. In the operation process, attention should be paid to avoid bump and disability for small specifications, and more attention should be paid to personal safety and protection for large specifications.
Qianci Standard packages that keep weight to a minimum to save shipping costs and avoid destruction during shipping help you save money and get the perfect magnet
Save money shipment way ：
Cooperate with FedEx, DHL, UPS and TNT over 6 years , confidence to get the minimum your shipping cost.
Experienced shipping forwarder for Ocean and Air shipments. When the Net weight of the Neodymium N52 magnet is over 200Kg, by sea is the best way.
Q: Is your company a trading company or a manufacturer?
A: We are a professional manufacturer of neodymium magnets and magnetic products with over 10 years of experience in China.
Q: Can I get samples?
A: Of course. We usually provide ready-made samples free of charge, but you have to pay for shipping or freight collect. If it is a custom sample, we need to charge the basic fee.
Q:. What is the delivery time of the sample?
A: The finished sample will take about 2-3 days. If you need your own size, it will take about 7 days.
Q: How long is the lead time for production?
A: Usually 5-10 days if they are available. If there is no stock, it will take 25-30 days.
Q: What certificates do you need?
Answer :iso9001, rohs, reach, msds.
What are your payment terms?
A: The total amount is less than or equal to $5,000, 100% in advance. Total amount > $5,000, 30% in advance by telegraphic transfer, balance before shipment.
