Magnetic Chamfer Strips For Precast Production
Application of magnetic chamfer strips in precast concrete production
The application of magnetic chamfer strips in precast concrete production is mainly to form chamfers when pouring concrete to protect the edges and corners of concrete parts and prevent them from being knocked or chipped during use. It also increases the aesthetics of concrete components. The following are several ways to use magnetic chamfer strips in precast concrete production:

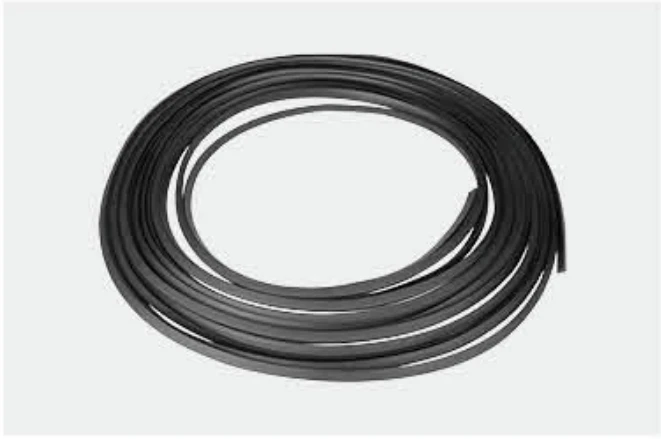

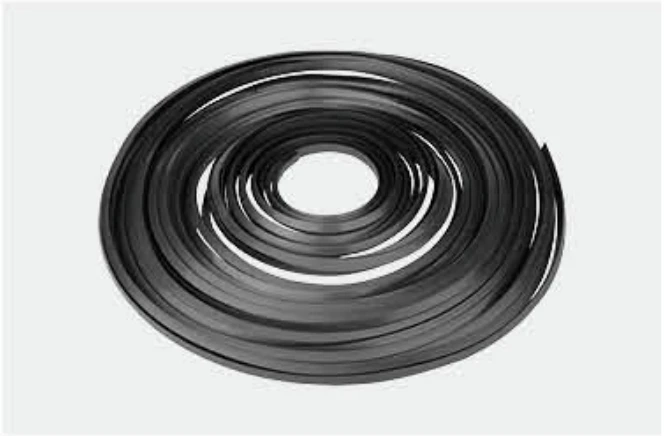

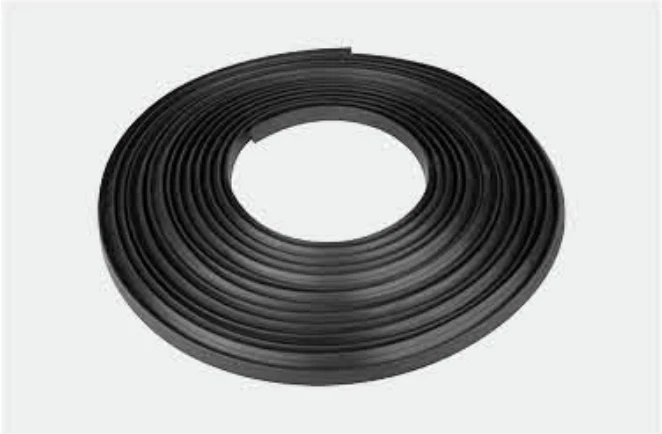

1. Rubber magnetic chamfer strips: In the process of precast concrete, rubber magnetic chamfer strips can be used to generate chamfers. When using a non-chamfered side mold, if a chamfer needs to be generated, the rubber magnetic chamfer strips can be used flexibly. Rubber magnetic chamfer strips are lighter than iron chamfer strips, both right-angled sides are magnetic, and have a certain degree of bendability, which is extremely convenient in actual production and use. Rubber magnetic chamfer strips are relatively simple to produce and have a short delivery time.
2. Iron magnetic chamfer strips: A magnetic chamfer strip for concrete pouring, including an iron anti-collision strip for protecting the corners of concrete pieces, and a strong magnet for connecting the iron anti-collision strip to the formwork when pouring concrete pieces. The side of the iron anti-collision strip is provided with a groove arranged along the length direction, and the strong magnet is arranged in the groove and connected to the iron anti-collision strip through its own magnetism.
3. Installation of magnetic chamfer strips: When using magnetic chamfer strips, the iron anti-collision strip can be sucked onto the pouring mold with a strong magnet, and then concrete is poured to form a concrete component with an iron anti-collision strip. This method makes the installation of iron anti-collision strips more convenient, and the position of iron anti-collision strips can be continuously adjusted before concrete pouring, ensuring the accurate positioning of iron anti-collision strips.
4. Customized size: Magnetic chamfer strips can be customized in different sizes according to customer requirements, such as 10X10MM, 15X15MM, etc., to adapt to concrete edges of different widths and shapes.
5. Diversity of shapes: Magnetic chamfer strips can be customized into different shapes, such as trapezoids, triangles, etc., to adapt to more complex production processes.
6. Magnetic drip strips: Magnetic drip strips are also called magnetic chamfer strips. Their main function is to make chamfers for precast concrete products. Magnetic drip strips can be divided into rubber magnetic drip strips and iron drip strips according to the material.
Iron chamfer strips/drip strips have high strength, are non-slip, and are not easy to deform. They are embedded with NdFeB strong magnets and can be accurately positioned at any position of the bottom mold or side mold. The chamfer strips can be reused, saving costs, and are extremely convenient in actual production use.
7. Magnetic trapezoidal strips: Magnetic trapezoidal strips are used to generate drip grooves during the precast concrete process. Due to the magnetic fixing effect, the trapezoidal strips can be placed at any position of the mold to produce a variety of precast drip grooves or component decorative patterns. The product specifications are upper bottom 12*lower bottom 16*height 10mm, the lower bottom is magnetic, and the product length can be customized according to customer needs.
Through these applications, magnetic chamfering strips not only improve the production efficiency of concrete precast parts, but also improve the quality and aesthetics of the products.
