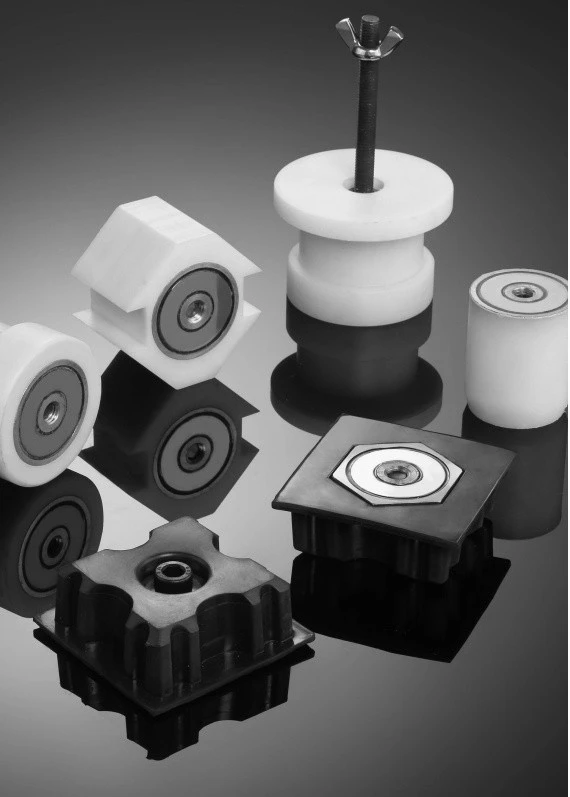

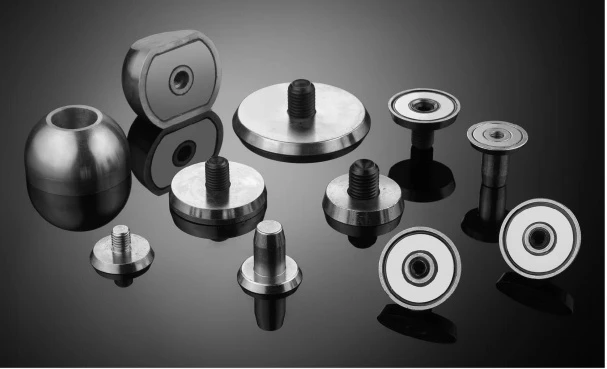

Insert Magnets For Precast Concrete Formwork

What are Insert Magnets?

Insert magnets to secure embedded elements to steel formwork, including switches, pipeline holes, and embedded connecting and lifting socket.The precise positioning and secure fixing of the magnets during use is critical to achieving the final shape of the precast concrete part.

Functionality of Insert Magnets

1. Positioning Embedded Elements:

Insert magnets are primarily used to secure embedded parts such as wiring troughs, pipe fittings, and anchor plates within the concrete molds. By using strong magnetic forces, these magnets hold the components in place, preventing them from shifting or sliding during the pouring of concrete. This ensures that the final product has precise locations for electrical and plumbing fixtures, which is essential for functionality in construction projects.

2. Enhancing Efficiency:

The use of insert magnets significantly accelerates the assembly and disassembly of formwork compared to traditional methods that rely on clamps or screws. This efficiency reduces labor time and costs, allowing for quicker project completion without compromising quality. The magnets can be easily repositioned and reused, contributing to cost savings over time.

3. Precision and Quality Control:

Insert magnets help achieve high levels of precision in the alignment and positioning of precast components. This accuracy minimizes errors during production, leading to a reduction in rework and ensuring that the finished elements meet strict quality standards. The strong magnetic hold provided by these devices ensures that the embedded elements remain stable throughout the curing process.

Advantages of Using Insert Magnets

- Durability: Insert magnets are designed to withstand harsh conditions typical in concrete production environments. They are often encased in protective materials to prevent corrosion from concrete exposure, thereby extending their lifespan.

- Versatility: These magnets can be customized in size and strength to accommodate various applications, including different types of embedded parts like pipes, electrical boxes, and lifting sockets.

- Cost-Effectiveness: By reducing labor needs and minimizing material waste through precise placement, insert magnets contribute to overall cost savings in precast concrete production.

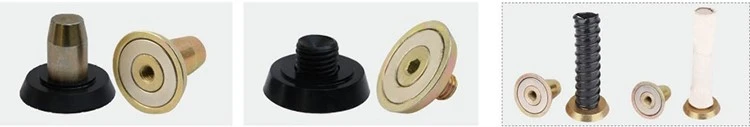

QCM-D40 Series Insert Magnet

QCM-D40 Series Insert Magnet, thickness 6mm, suction force up to 35Kgs, polished rod diameter is 18.1 and 19.3mm, we can also customize the polished rod diameter according to customer needs.

QCM-D50 Series Insert Magnet

QCM-D50 Series Insert Magnet, thickness 8mm, suction force up to 75Kgs, can be equipped with M10-M16 screw.

QCM-D54 Series Insert Magnet

QCM-D54 Series Insert Magnet, thickness 10mm, suction force up to 75Kgs, can be equipped with M18-M24 screw.

QCM-D64 Series Insert Magnet

QCM-D64 Series Insert Magnet, thickness 12mm, suction force up to 120Kgs, screw can be customized according to customer needs.

Hanging nail type Insert Magnet



China 86# Electrical-Box Insert Magnet Precast Concrete

The bottom of the bracket of this product adopts a unique hexagonal design, which can effectively prevent the wire box bracket from slipping, loosening and demolding, and is highly praised by users.



Octagonal Wire Box Insert Magnet

The Octagonal Wire Box Insert Magnet can be used repeatedly for a long time and have a long service life. Since the sizes of domestic octagonal wire boxes are not uniform, our company is equipped with high-precision CNC lathes and can quickly customize wire box fixtures of various sizes according to customer requirements.



Round Wire Box Insert Magnet

The Round Wire Box Insert Magnet is designed for the wire box hole when making precast concrete components. It is made of nylon rods and can be flexibly customized according to customer needs. It can be used with strong magnets to make the components more beautiful.



Waterstop Anchor

Our Waterstop Anchor is uniquely designed to be reusable, cost-saving and easy to operate. Once the fixture is positioned, it can effectively avoid slipping and loosening due to the super strong magnetic adsorption.
We can customize the size according to customer requirements, D150, D110, D75, D45, etc.



Metal Bellows Insert Magnet

The Metal Bellows Insert Magnet is specially designed for fixing metal bellows in the production of PC components. When the rubber column is inserted into the bellows, the rubber expands under the squeeze force. The rubber column is tightly attached to the inner wall of the bellows after being stressed. At the same time, the fixed magnetic seat at the bottom is firmly adsorbed on the mold table, thereby achieving the purpose of fixing. According to the expansion degree of the rubber column, a holder can be used for metal bellows of various sizes, which greatly saves the cost of use.

Using QianCi Magnet magnetic base for fixing does not damage the platform, ensures that the embedded parts do not slip, and are firmly fixed. Moreover, the magnetic base can be used repeatedly for a long time, saving costs, simple operation, and improving efficiency.By reasonably designing the magnetic structure, we can make this fixed magnet into various shapes, which can be used with pipes and wire boxes of different shapes and sizes.
