Magnetic Ferrule Insert Threaded Bushing Magnets
Definition and Use

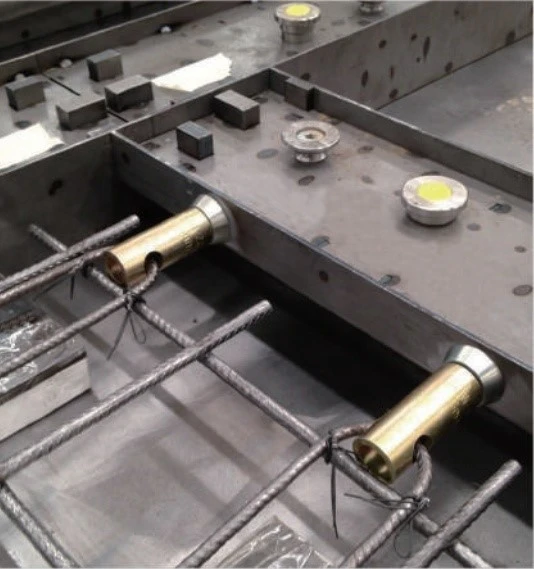

The magnetic threaded disc is a magnetic device used in precast concrete production. Its main function is to fix the conrete ferrule to ensure that the threaded ferrule is stably positioned during the concrete pouring process until the concrete solidifies. The threaded ferrule is a commonly used component in precast concrete components and is used for subsequent connection and fixation of other components or equipment.
Specifications matching
|
|
||||
|
Type |
Diameter |
H |
Screw |
Force |
|
|
mm |
mm |
|
kg |
|
QCM-D50 |
50 |
8 |
M10,M12,M14,M16 |
60 |
|
QCM-D54 |
54 |
10 |
M18,M20,M24 |
65 |
|
QCM-D64 |
64 |
12 |
M16 |
100 |
Description
Outer diameter, suction force, screws, shell laser LOGO printing, etc. can be customized according to customer needs. Unique bottom steel plate design to protect the magnet from rust and impact damage.
All QCM threaded ferrule magnets are made of high-quality or solid bars, and for each batch of products, QCM will check the tolerances and deviations that may occur. QCM can design and manufacture threaded ferrule magnets of different lengths according to special requirements. All products meet internal quality control.
Benefits of Use
Improved Construction Efficiency: The use of precast concrete threaded bushing magnets can enhance construction efficiency.
Reduced Mold Damage: They can reduce damage to molds.
Extended Mold Service Life: Help to extend the service life of molds.
Enhanced Product Quality and Precision: Contribute to improving the quality and precision of the final product.
Application
|
Accessory Name |
Description of Fixing Method with magnetic threaded disc |
|

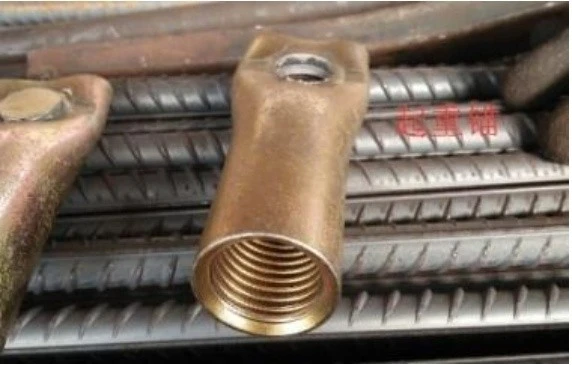

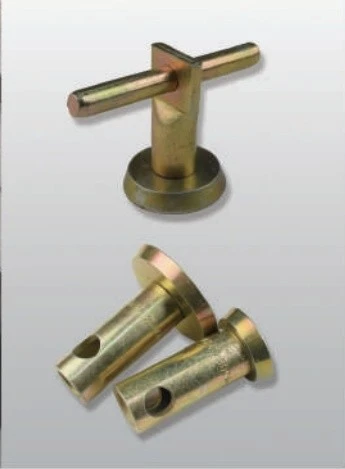

Embedded Threaded Bushings |
Play a role in connecting and fixing in precast concrete components. |
|
Switches, Pile Holes and Connection or Lifting Sockets |
Used to fix them in place during the precast concrete production process. |
|
Metal Bellows |
Specially designed magnets to fix metal bellows in precast component production. |
|
Pipes or Grouting Pipes |
Use a combination of high-performance rubber and magnets to fix on columns, adhesives, special beams, TT boards and walls. |
|
PVC Seals |
Designed to fix the sealing part when producing precast concrete, long-term usable and cost-saving. |
|
Round Wire Boxes |
Insertion magnets are designed to leave wire box holes when making precast concrete components. |
|
Ball Head Lifting Anchor |
Lifting anchor magnetic holder made of iron material with high-performance magnets to fix it. |
|
Octagonal Electric Box |
Magnetic holder can be reused and has a long service life for fixing electric boxes. |
|
86 Wire Box |
Newly upgraded cable box fixing device with a unique hexagonal design at the bottom to prevent sliding, loosening and demolding. |
|
Rectangular Electric Box |
Customized electric box magnet composed of rubber, iron and magnet to prevent sliding. |
