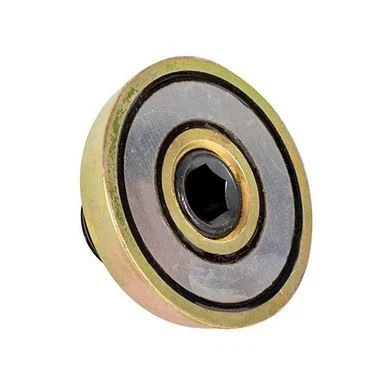

35kg Magnetic Base For Fixing Precast Concrete Embedded Pipes

The embedded casing positioning magnetic base is used to fix PVC wire pipes, as well as the positioning of hoses such as grouting bellows, and to prevent cement from invading the hoses. The main size is the base of D40mm, and the suction force can reach 35KGS. According to customer needs, 18.1mm and 19.3mm connecting rods can be produced. Alternatively, a threaded hole can be designed at the upper end to facilitate the removal of the fixed magnetic base during later demoulding. It can also be designed to wrap the smooth bar with rubber to protect the magnet from damage by cement. Effective maintenance of the fixed magnetic base can increase the reuse rate, and make the wire pipe fixation more precise and firm, not easy to loosen, ensure the quality of precast concrete components, save costs for you, and improve work efficiency.

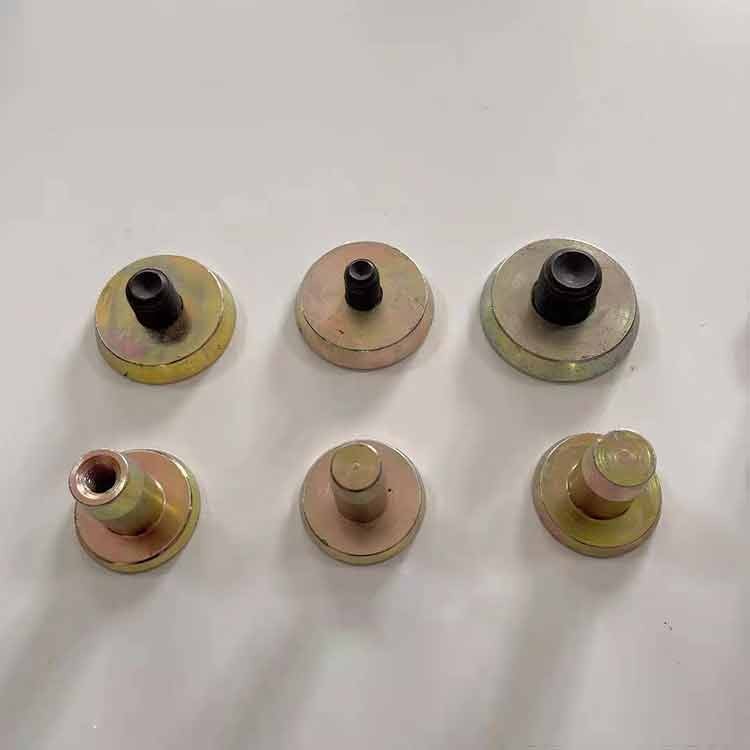

Pre-buried casing fixing magnet, composed of neodymium magnet, steel shell and steel threaded rod. The magnet is nickel-copper-nickel plated, the steel shell is zinc plated, and the threaded rod is black epoxy plated. These surface treatments can provide good corrosion protection for casing fixing magnets. The maximum operating temperature of PVC pipe fixing magnets is 80 degrees. Please keep the corrugated pipe fixing magnet away from fire or heating. If higher operating temperature is required, a higher grade of neodymium iron boron magnet is required.

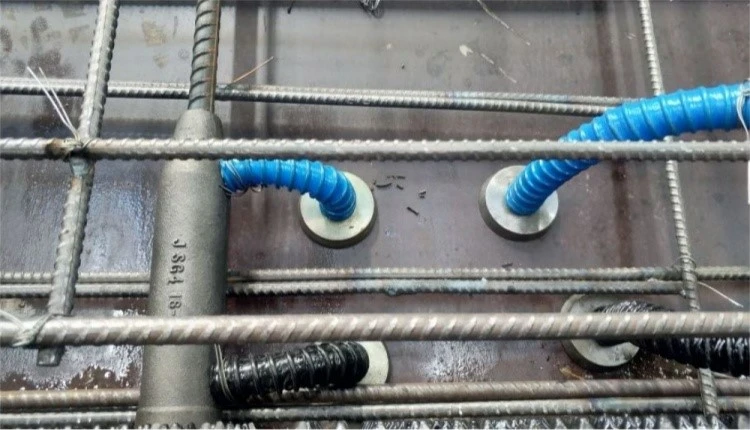

Application scenarios of inserting magnets to locate corrugated pipes embedded in precast concrete

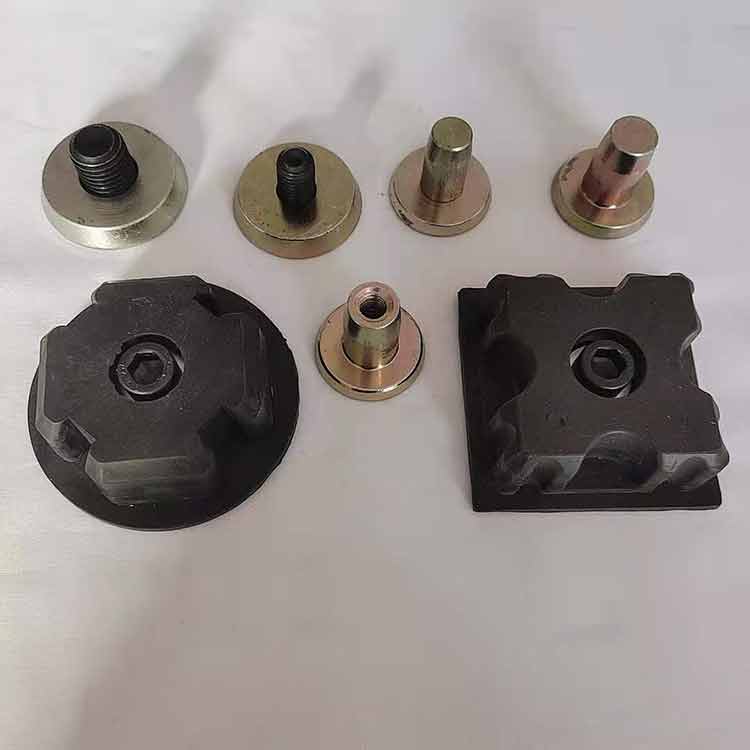

QianCi Magnet mainly produces prefabricated magnetic boxes, architectural magnetic boxes, stainless steel magnetic boxes, PC magnetic boxes, fixed magnetic boxes, template magnetic boxes, embedded parts fixed magnetic bases, wire box fixed magnetic bases, embedded hanging nails, sleeves, PVC pipes and other embedded parts fixed magnetic bases, wire box magnetic fixers, magnetic chamfer strips, and integral magnetic side mold products for robots on automated assembly platforms, etc. They are widely used in the production of prefabricated components such as wall panels, stairs, roofs and bridges.
