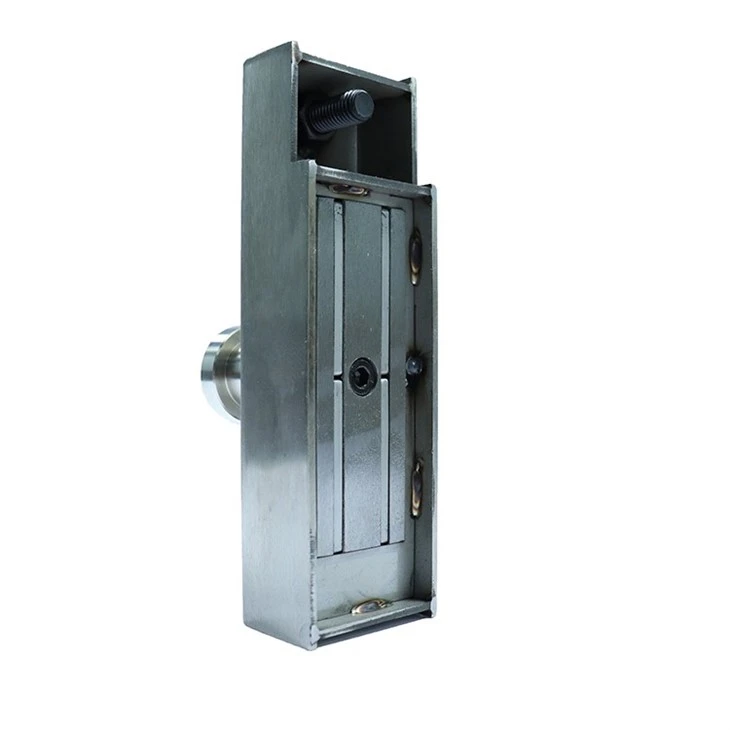

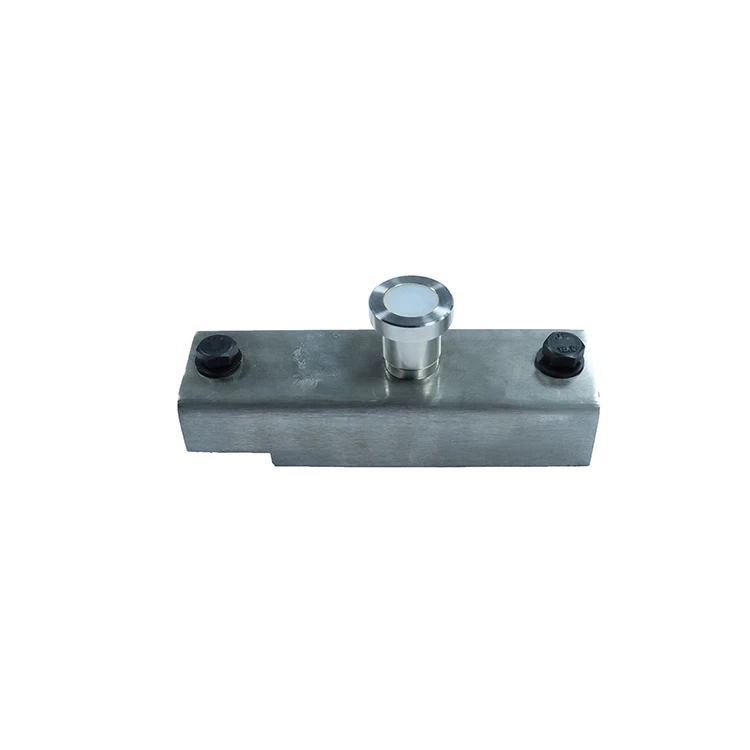

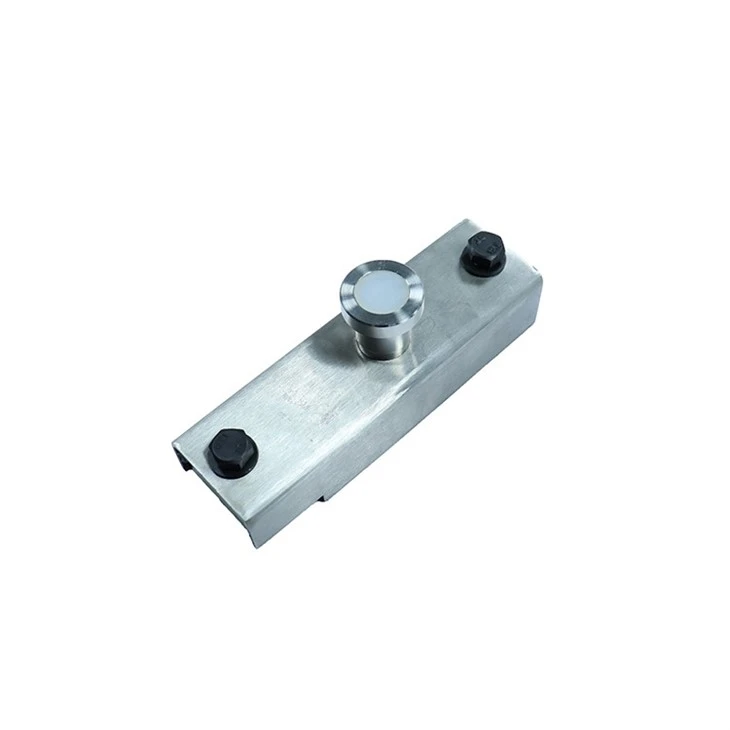

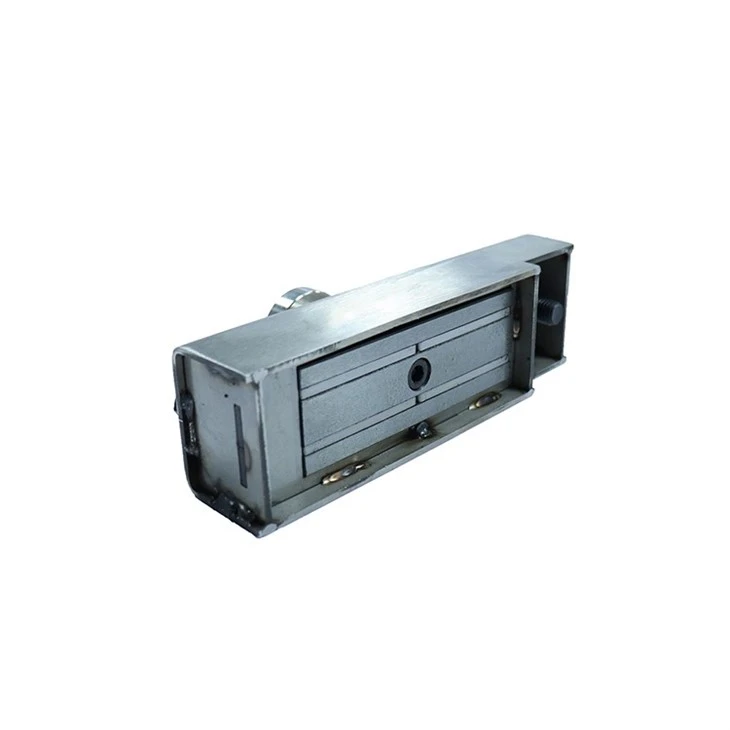

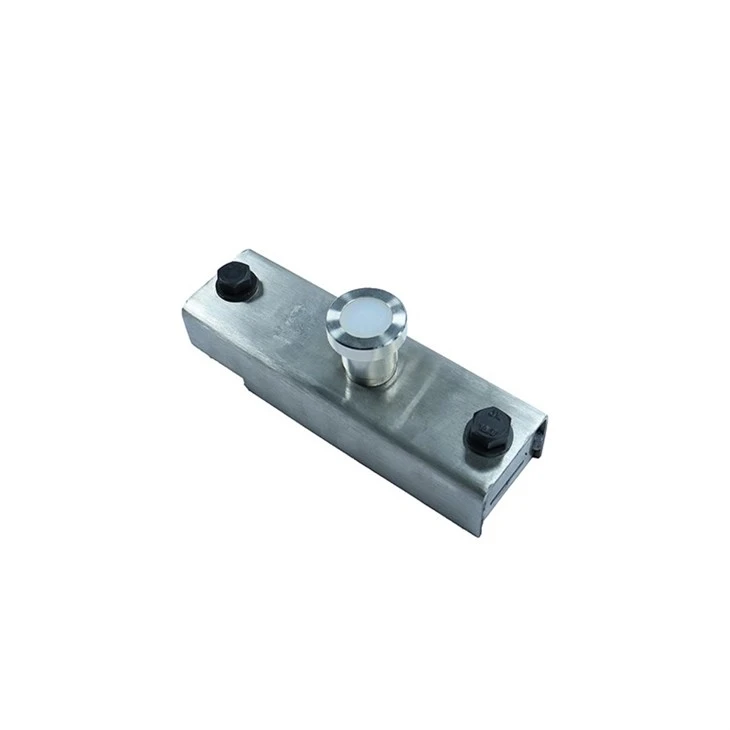

600 Kg/1320 Lbs Magnetic Force Shuttering Magnet



600kg/1320 lbs magnetic force shuttering magnets Specifications

Precast Concrete Magnetic Box Description：

Name:Precast concrete magnet/Shuttering magnet/construction magnetic box / Magnetic holder

Item: QCM-600

Tensile force: 600kg/1320lb

Size: 210*60*40 mm

Finish/Material: Iron

Colour: Silver

Use: Suitable for producing precast concrete components.

Transportation: sea, air, express

The 600kg Shuttering Magnet is primarily used in formwork systems for precast concrete construction and is designed to provide an efficient, economical and secure fixing method. This magnet has a strong vertical suction force (≥600kg) that securely holds steel panels, beams, fences and molds in place. In addition, it has a release function that allows the user to easily remove the workpiece again.

In terms of economic benefits, the use of the 600kg Shuttering Magnet significantly reduces the need for traditional fastening methods such as nails and clamps, resulting in significant time and labor savings. In addition, labor costs are further reduced as no additional personnel are required for installation, which can be done quickly by a single person. At the same time, the magnets prevent rigid damage to the steel mold table and reduce the need for repetitive mounting and dismounting operations.

Below are two application cases:

1. Precast concrete panel production: In the production process of precast concrete panels, 600kg mold closure magnets are widely used to fix the side molds. By using this magnet, it can effectively resist the shear force after concrete pouring and vibration to ensure the stability and safety of the mold.

2. Prefabricated building envelope: In the prefabricated building envelope, 600kg mold closure magnets are used to fix the sandwich panel molds. These magnets are not only suitable for molds with steel reinforcement, but also for recommended mold heights of 40-70 mm. This makes the whole construction process more efficient and reliable.

600kg Precast Concrete Shuttering magnets have an important application value in the precast concrete industry, which not only improves the construction efficiency and safety, but also brings significant economic benefits.

Shuttering Magnets QCM-600 Application Shows:

Other shutter magnet product specifications

The 600kg Precast Concrete Shuttering magnets have the following features:

-Compact and robust design with NdFeB magnets permanent magnets.
-Optimized performance with no magnetic weakening even in harsh working environments.
-Certified demagnetization.
-Fully enclosed, compact and lightweight design with safety latch mechanism.
-Rugged design with very lightweight magnet switch.
-Magnet adsorption surface with two longitudinal reinforcement strips.

What are the time and labor cost savings of using 600kg Shuttering magnets compared to traditional fastening methods?

The use of 600kg Shuttering magnets offers significant time and labor cost savings compared to conventional fastening methods. Specifically, the QCM Magnetic Mold Shuttering System is able to save more than 90% of mold change time by using permanent magnets to achieve rapid mold loading and unloading.

What are the best practices and considerations for applying 600kg Shuttering magnets in prefabricated building envelopes?

1. Selecting the right magnet: Firstly, it is necessary to ensure that the 600kg Shuttering magnets used have sufficient suction and stability to ensure that they are able to effectively hold the prefabricated components in place. This requires careful examination and comparison of the material, design and brand of the magnet when shopping.

2. Optimization of installation position: The installation position of precast magnet should be determined according to the structural characteristics and stress situation of precast components to maximize its fixing effect. Usually, it should be installed in the center or main load-bearing part of the prefabricated components to disperse and evenly distribute the pressure.

3. Regular inspection and maintenance: Since prefabricated buildings may be affected by various external factors in the course of use, such as temperature changes, humidity, etc., precast magnets need to be inspected and maintained on a regular basis to ensure that their performance is not affected. This includes checking the magnets for damage, corrosion or other abnormalities and repairing or replacing them in a timely manner.

4. Avoid over-reliance on a single fastening method: Although precast wall production magnets can provide a strong holding force, it is recommended that you do not rely solely on magnets as the only fastening method in order to ensure the safety and reliability of the overall structure. Other fastening techniques such as screws, pins, etc. can be used in combination to create multiple insurance.

5. Train professional staff: Using 600kg Shuttering magnets requires a certain amount of technical knowledge and operating experience. Therefore, it is recommended to provide professional training to relevant staff to ensure that they understand the correct installation method of the magnet, maintenance knowledge and emergency response.
