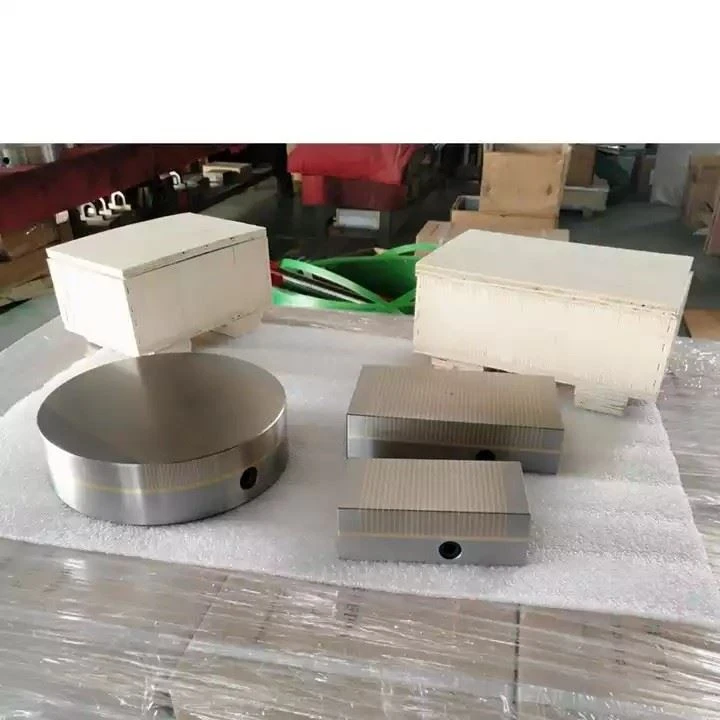

Special Suction Cup For Edm Machine
Special Suction Cup For Edm Machine
Special Suction Cup For Edm Machine

Special Suction Cup For Edm Machine

1.Applies to surface grinder, EDM machine and linear cutting machine. 2.Pole space is fine, magnetic force is distributed uniformly. It performs well on thin and tiny workpiece machining. The working table precision doesn't change during magnetizing or demagnetizing. 3.The panel through special processing,with no leakage, prevents corrosion by cutting fluid, extends working life and enables to work longer time in cutting fluid. 4. Fine grinding on six faces. Can be used vertically in linear cutting machine. 5. The chuck with high performance magnetic steel, powerful magnetic force and almost no residual magnetism.

Send Inquiry

Product Introduction

Item	Permanent magnetic chuck	Electromagnetic magnetic chuck	Electro permanent magnetic chuck
Magnetic source	NdFeB	Coil and core	NdFeB,Alnico
Magnetic force principle	Internal magnetic fields	Constant current	Conversion by electronic control device
Control method	Manual	Electric control device	Electric control device
Precision	About 0.02-0.05 (the error increased by sizes)	About 0.02-0.05	About 0.002-0.005
Potential risk	safe	Prone to security incidents	Absolute safe
Magnetic regulation	Unable to adjust	Electric control device to adjust suction	Electric control device to adjust suction
Residual magnetism	Few remanence	Few remanence	Automatic surface demagnetization
Thermal deformation	None	Few heat generation and thermal deformation after continuous power o n	None
Serive life	6-10 years	3-5 years	Above 10 years

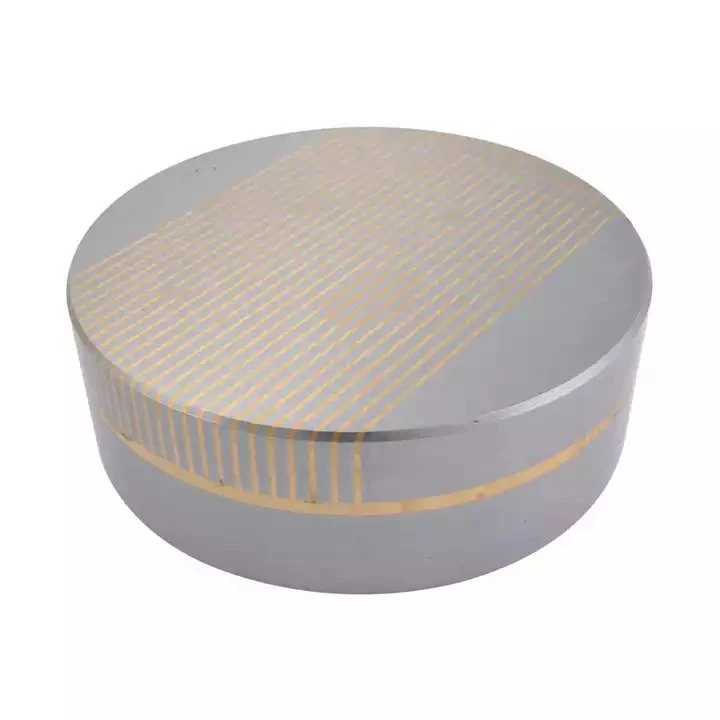

magnetic chuck for surface grinder price

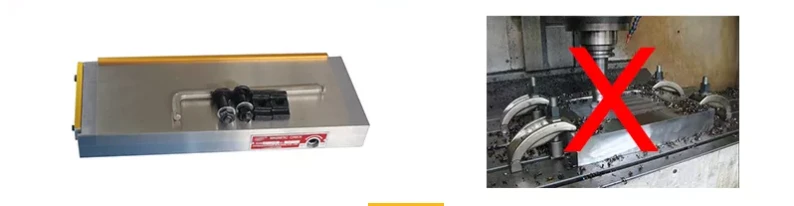

Suitable for clamping of various workpieces without deformation	1	Clamping tends to deform the workpiece
Uniform suction, improve processing accuracy	2	During the machining process, the workpiece generates vibrations, which reduces the machining accuracy and the surface flatness.
Accurate positioning, convenient clamping	3	Difficult clamping and inaccurate positioning reduce work efficiency
No interference position, workpieces can be fmachined on five sides at one time	4	clamping with processing interference positions, workpieces can not be processed in one operation

Q:Are you manufactory or trade company.
A:We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us your need, there is always a product suitable for you.

Q:Where do you located:
A:Qianci magnet Technology Co., Ltd. is located in Jimei District, Xiamen Province, half an hour from Xiamen Airportc

Q:Production time:
A:Normally,We'll have regular items in stock, customized products will take 7-14 work days.

Q:Payment term:
A:TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.

Q:What's your work time:
A:Normally, our work time is 9:00 AM to 17:00 PM Beijing time, but if you have emergency, Please contact us freely at any time. Our salesman will sulove your problem as soon as possible.
