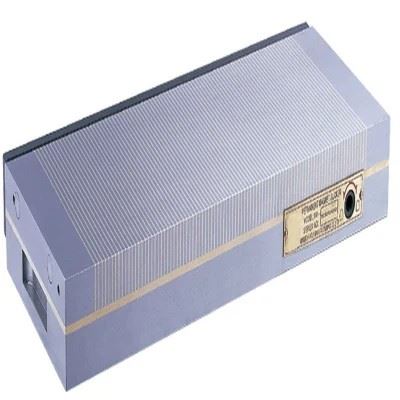

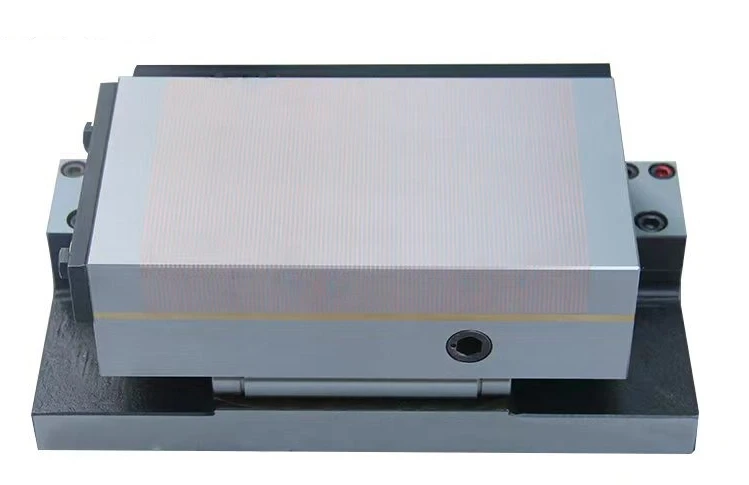

Permanent Magnetic Chuck
Magnetic line is dense, which makes the magnetism uniform, especially suitable for holding thin and small work piece
suction up to 100 N/cm2.
The Permanent Magnetic Chuck is an ideal solution for use with flat grinding machines, spark machines, cutting machines, and more. Its dense magnetic lines ensure uniform magnetism, making it particularly suitable for securely holding thin and small workpieces with precision. With a powerful suction force of up to 100 N/cm², this magnetic chuck provides stable and reliable clamping, ensuring high performance and accuracy during machining operations. Its durable and efficient design makes it a valuable tool for a wide range of industrial applications.
| Type | Length mm |
Width mm |
Height mm |
Pole pitch mm |
Magnetic power N/cm² |
N.W. kg |
| XM91 125x250 | 250 | 125 | 50 | 1.5+0.5/3+1/4+2 | ≥100 | 14.5 |
| XM91 150x150 | 150 | 150 | 50 | 1.5+0.5/3+1/4+2 | ≥100 | 10.5 |
| XM91 150x300 | 300 | 150 | 50 | 1.5+0.5/3+1/4+2 | ≥100 | 20 |
| XM91 150x350 | 350 | 150 | 50 | 1.5+0.5/3+1/4+2 | ≥100 | 24 |
| XM91 150x400 | 400 | 150 | 50 | 1.5+0.5/3+1/4+2 | ≥100 | 28 |
| XM91 150x450 | 450 | 150 | 50 | 1.5+0.5/3+1/4+2 | ≥100 | 32 |
| XM91 200x400 | 400 | 200 | 55 | 1.5+0.5/3+1/4+2 | ≥100 | 38 |
| XM91 200x450 | 450 | 200 | 55 | 1.5+0.5/3+1/4+2 | ≥100 | 43 |
| XM91 200x500 | 500 | 200 | 55 | 1.5+0.5/3+1/4+2 | ≥100 | 47 |
1.Flexibility :
• Allow single set-up machining with 5-sided accessibility
• workpieces larger than the table are machinable
2.Safety
• No electric power supply during clamping
• Constant and uniform magnetic power over entire area.
• No temperature rise in operation. so no impact on precision and work piece deformation due to temperature rise.Can used for long time.
3.Efficient
• Easy and quick position,reduce set-up time and increase available machine time.
• High accuracies and tolerances
4.Cost-effectiveness
• no maintenance
• no machine modifications
• reduced tool consumption
