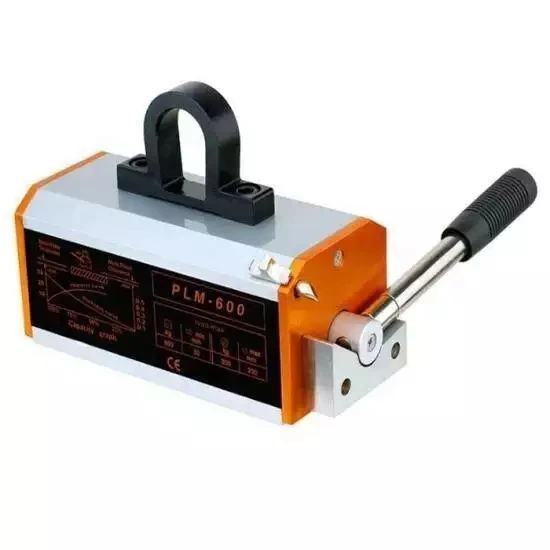

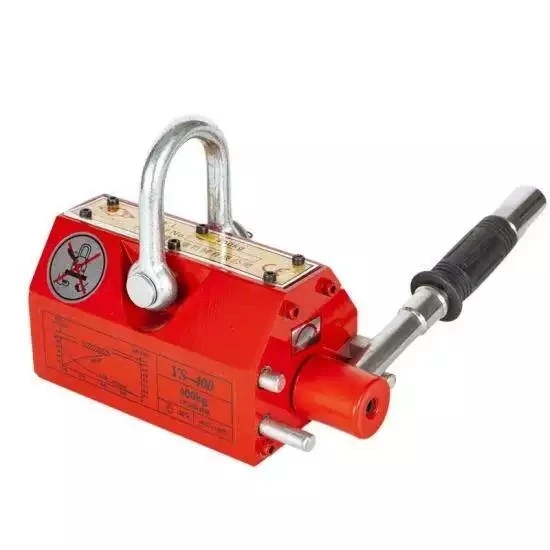

Magnetic Lifting Device

Magnetic lifting is a technique used in a variety of industrial and mechanical environments to move heavy ferrous objects without direct contact. This method utilizes magnets to create a powerful magnetic field that allows for the safe and efficient handling of materials such as steel while avoiding the risks associated with traditional lifting methods such as slings and chains.

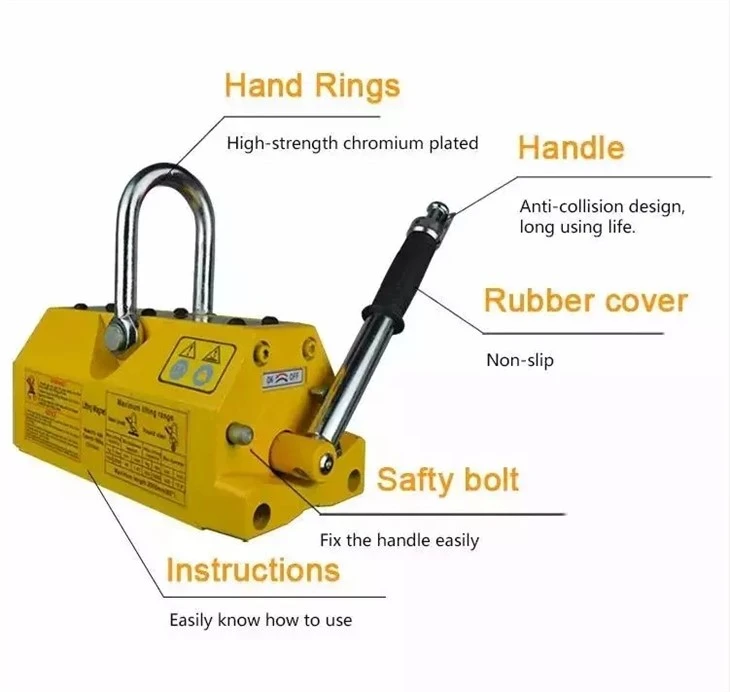

Features of Magnetic Lifting

1. Alloy steel galvanized lifting rings
Alloy steel galvanized rings are more stable, alloy steel material greatly improves the stability of the rings, and galvanized anti-corrosion.

2. Handle design
Rubberized handle design

3. Bottom U-channel design
Bottom U-channel design is more versatile, U-channel design can be adsorbed with flat plate and round steel, the use of a wider range.



4. Flexible rotary axis
Flexible rotating shaft control is more convenient, rotating shaft left turn on, right turn off, control is more convenient.

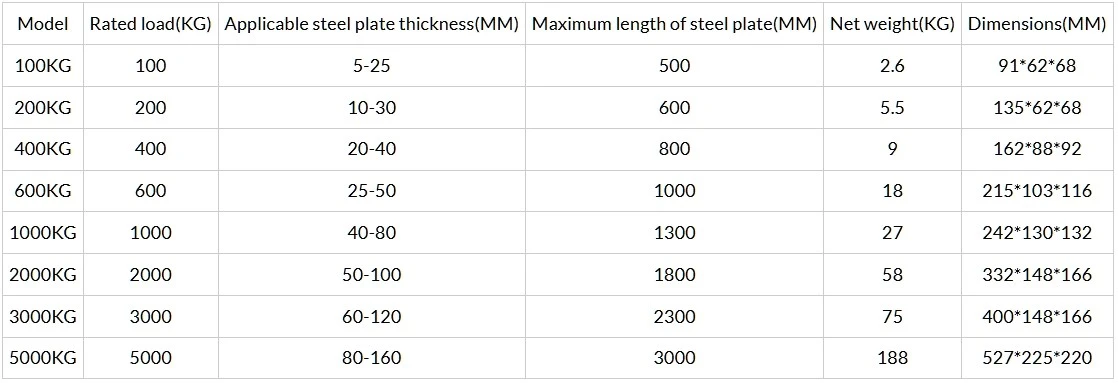

Magnet Specification

Applications of Magnetic Lifting

Magnetic lifting is used in a wide range of industries due to its efficiency and safety benefits. Common applications include

- Scrap yards: For efficient movement of scrap metal.
- Manufacturing: where heavy steel components need to be lifted or moved.
- Construction: for the handling of large steel plates and beams.
- Transportation In warehouses, heavy items can be loaded and unloaded without manual labor.

Advantages of Magnetic Lifting

There are several advantages to using magnetic lifting:
- Safety: Reduced risk of injury compared to manual handling.
- Efficiency: Heavy loads can be lifted by a single person, thus speeding up operations.
- Cost-effective: Low maintenance costs, especially with permanent magnets that do not require a power source.

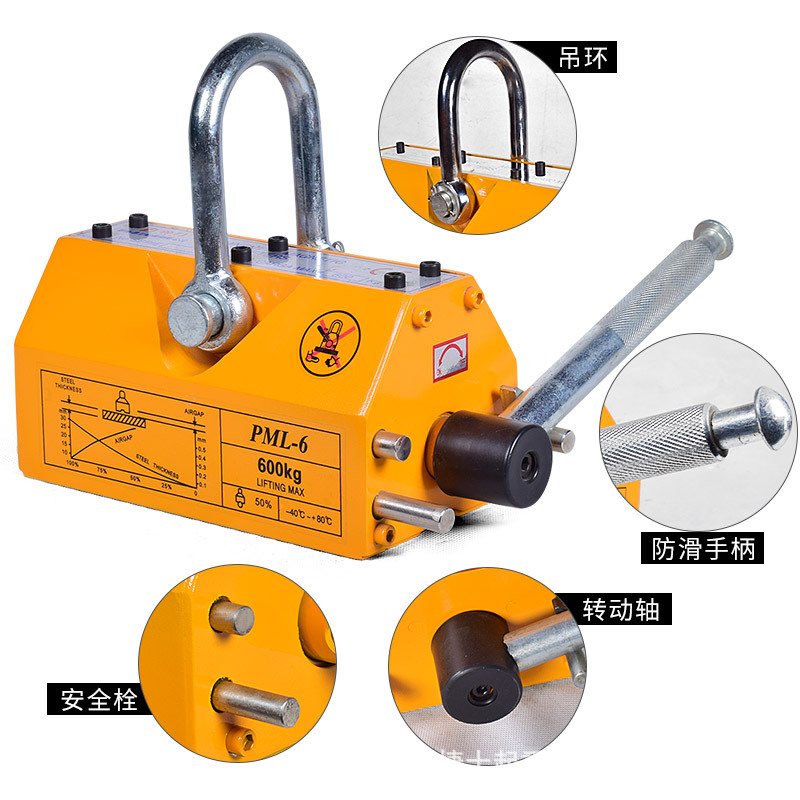

Magnet lifter details







Workshop show



Magnetic Lifter Application





Company Information
