pm Dc Motor

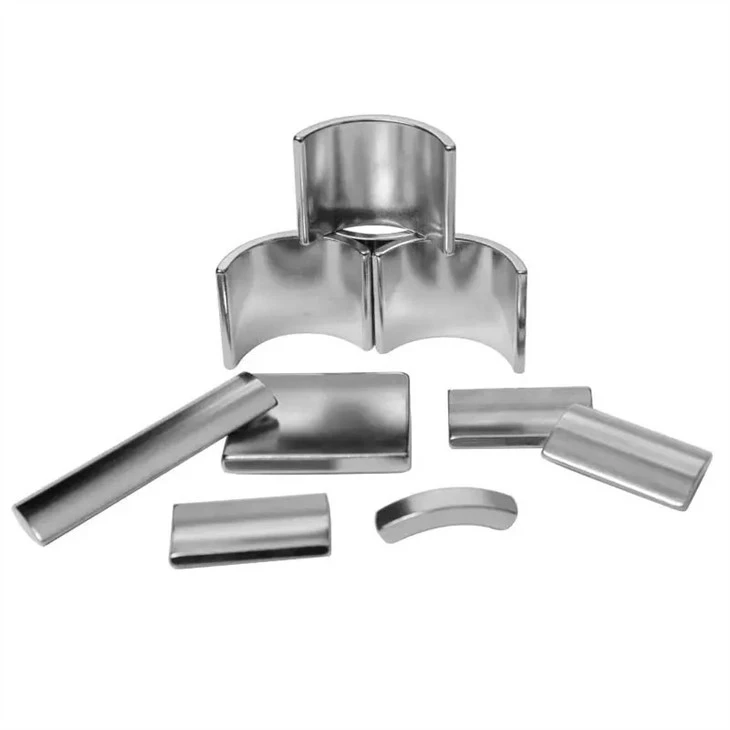

PM DC Motor Magnet

Type: Permanent
Composite: Neodymium Magnet
Shape: sheet, block, bar, disc, ring, cylinder, segment and irregular

Send Inquiry

Product Introduction

Essential details

Place of Origin: Fujian, China
Brand Name: QianCi
Model Number: AM002
Type: Permanent
Composite: Neodymium Magnet
Shape: Sheet, Block, Bar, Disc, Ring, Cylinder, Segment, and irregular
Application: Industrial Magnet
Tolerance: ±1%
Processing Service: Bending, Welding, Cutting, Punching, Moulding
Grade: Iron + Neodymium magnet

Delivery Time: 8-14 days

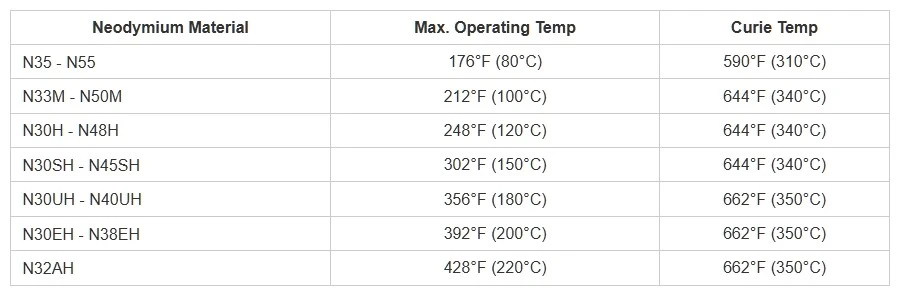

magnet Grade: N42SH or N35-N55, N33-50M, N30-48H, N30-45SH, N30-40UH, N30-38EH, N32AH
Coating: Ni, Zn, Sn, Gold, Epoxy, Silver etc
Max Working Temperature: Max 80 /176
Sample: Available
Certification: ISO9001/TS16949/Reach/Rosh
Usage: Widely Used
Magnetism direction: Thickness. Axial. Radial
Size: Customer's Requirement
Feature: Strong Magnetic Power

Hcj：≥1592kA/m,≥20kOe

(BH)max：318-334 kJ/m3,40-42 MGOe
