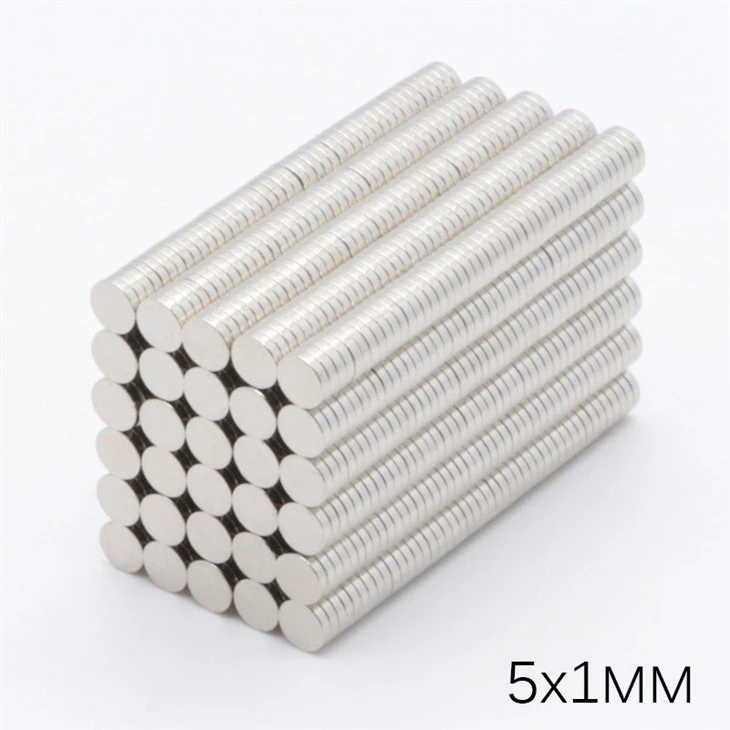

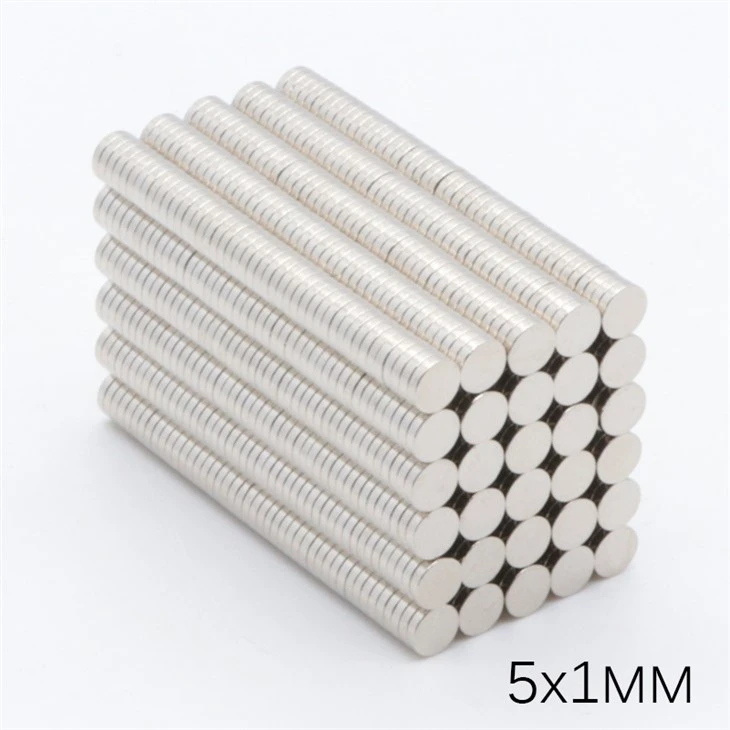

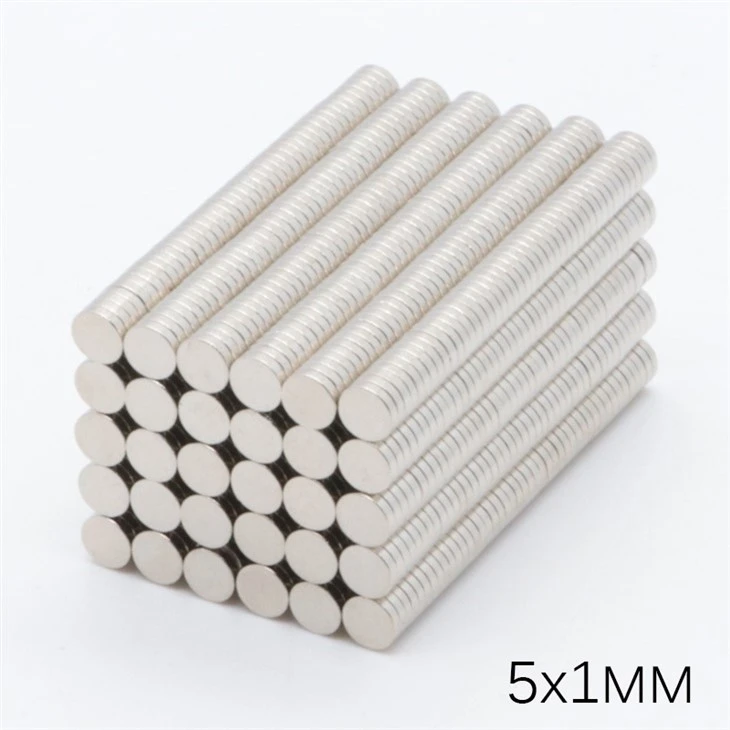

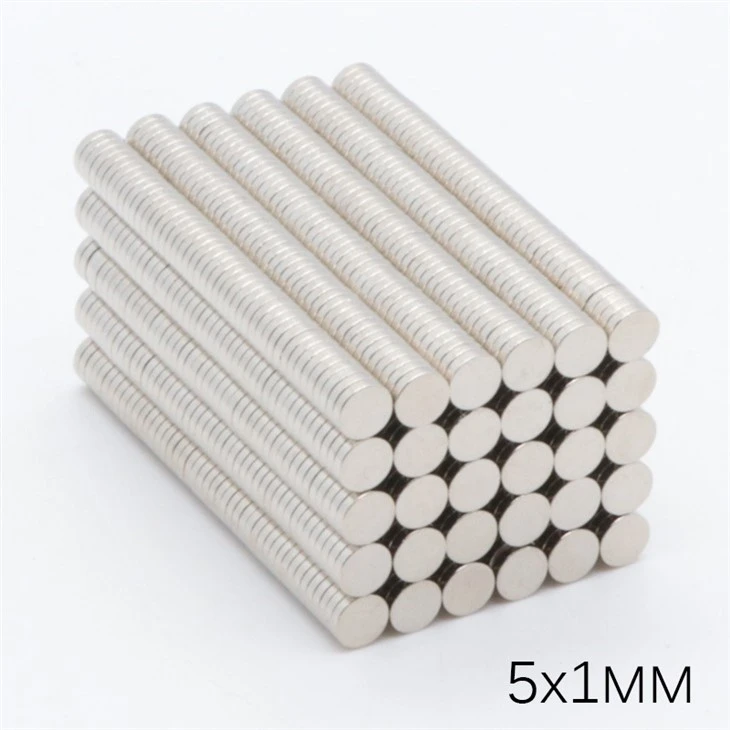

5x1mm Neodymium Magnets

Ndfeb has the characteristics of small size, lightweight, and strong magnetism. This is the best performance/cost ratio magnet ever made. Ndfeb is widely used in motor, engine, computer, communication, information, automobile and household appliances, and other industries.

We are an ISO/TS 16949:2002 certified manufacturer with over 10 years of manufacturing experience and 12 years of export experience. We offer a variety of products, we also provide you with customer design services.

Material	Sintered Neodymium-Iron-Boron ( NdFeB )
Size	Various kinds or according to customers' request

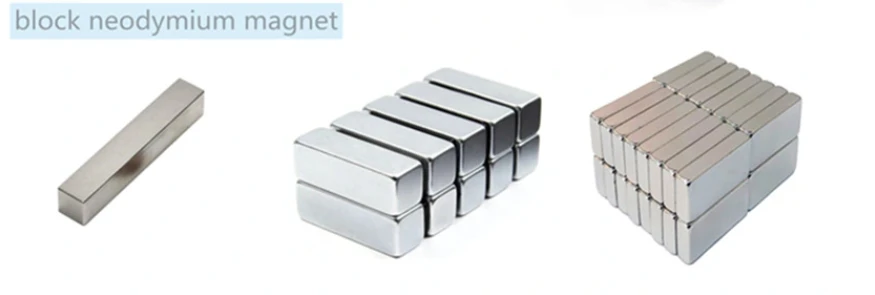

Shape	Customized(block, disc, Cylinder, Bar, Ring, Countersunk, Segment, hook, cup, Trapezoid, Irregular shapes, etc)
Performance	Customized (N33 N35 N38 N40 N42 N45 N48 N50 N52 …...)

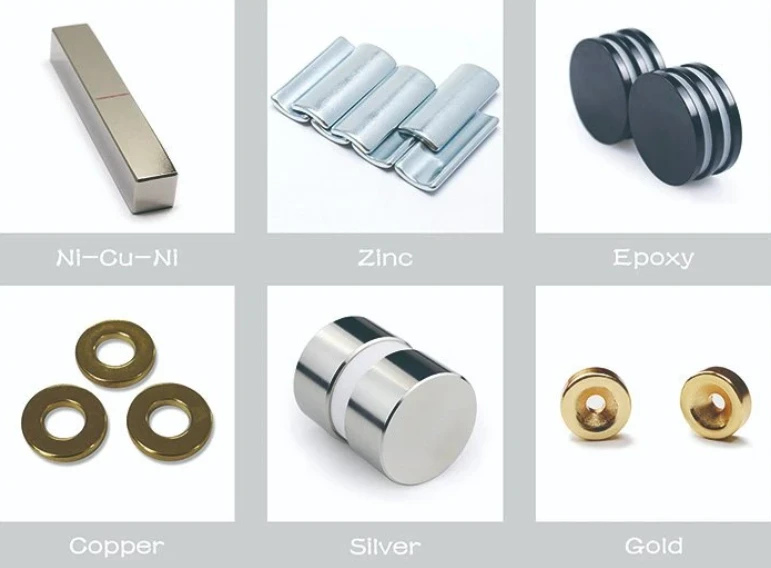

Coating	Customized (Zn, Ni-Cu-Ni, Ni, Gold, Silver, Copper, Epoxy, Chrome, etc)
Size Tolerance	±0.05mm for diameter /thickness, ±0.1mm for width/ length
Magnetization	Thickness Magnetized, Axially Magnetized, Diametrally Magnetized, Multi-poles magnetized, Radial Magnetized. (Customized specific requirements magnetized)
Max. Working  Temperature	Grade	Max. Operating Temperatures
	N35-N52	80°C (176°F)
	33M- 48M	100°C (212°F)
	33H-48H	120°C (248°F)
	30SH-45SH	150°C (302°F)
	30UH-40UH	180°C (356°F)
	28EH-38EH	200°C (392°F)
	28AH-35AH	220°C (428°F)
Applications	Neodymium(NdFeB) Magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, printers, switchboards,  packing boxes, loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, etc.



Reference Specifications

shape	size
round	5mm*1mm
round	5mm*2mm
round	5mm*3mm
round	5mm*4mm
round	5mm*5mm
round	5mm*6mm
round	5mm*10mm
round	5mm*15mm
round	5mm*20mm



Parameters

Product Name	NdFeB	Item number	Diameter 5mm	Coercivity	48(KA/m)
remanence	remanence	Intrinsic coercivity	42(KA/m)	Maximum magnetic energy product	20(KJ/m3)
Material grade	N35-N52	density	7.5(g/cm3)	Operating temperature	80(℃)
Curie temperature	310℃	brand	QCM	Specification	Refer to the specification table, other sizes can be customized













1. Does QCM Company supply permanent magnets with standard sizes?

No. QCM accepts OEMs considering our many years of experience in serving our customers, because different have different requirements in grade, size, coating, tolerance, etc.

2. Can I have a free sample of your magnets?

QCM will provide a free sample if the sizes are in stock, otherwise, we will charge the sample cost which will be returned to our clients after the order is confirmed.

3. How long will it take to receive your price quotation?

Usually, it takes 1- 2 working days.

4. What is your lead time after I place a purchase order?

Usually takes 1 week for the usual size. If it is needed to make a mold, it may take a little longer.

5. What kind of payment do you accept?

Company's checks, TT, LC, Paypal, Western Union
