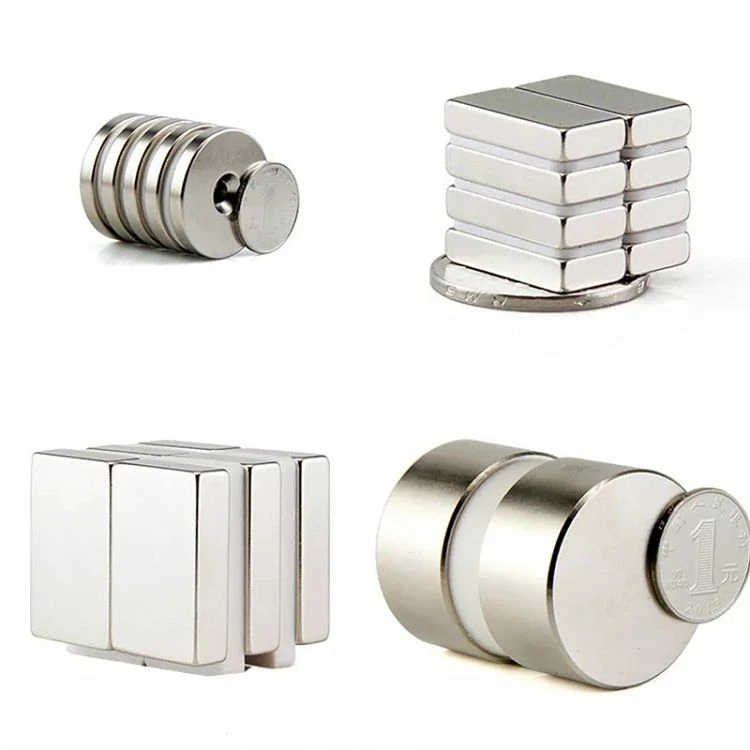

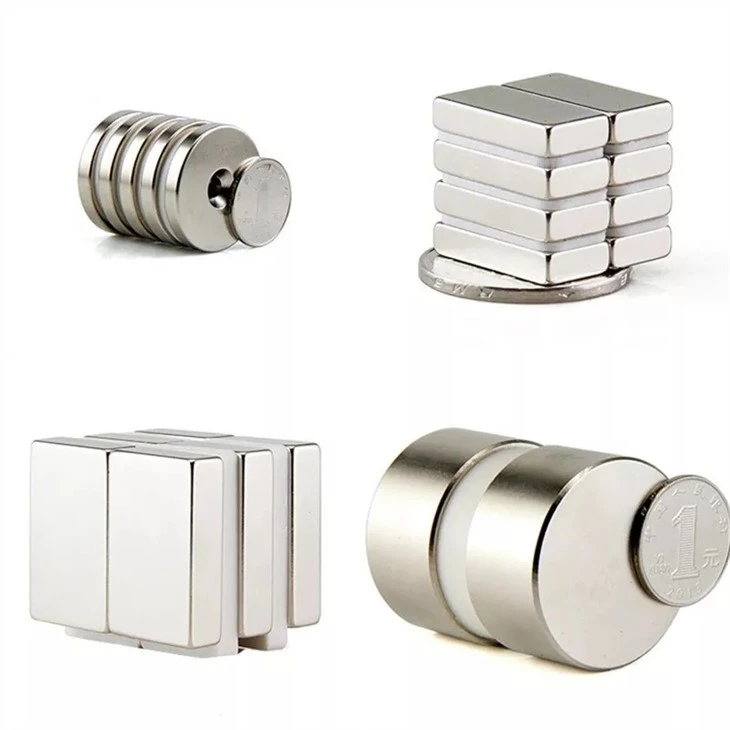

Neodymium Ceramic Disc Magnets

Manufacturer: QCM
Product Name: NdFeB Strong Magnetic Disc
Product Material: NdFeB (Samarium Cobalt, Ferrite can be customized)
Magnetic Performance: N35-N52 (various levels of performance can be customized)
Plating Process: Default Nickel Plating (Optional Nickel Plating, Zinc Plating, Tin Plating, Gold Plating, Epoxy Plating, Silver Plating, etc.)
Working Temperature: Below 80°C (Can be customized up to 350°C)



Magnet Specification

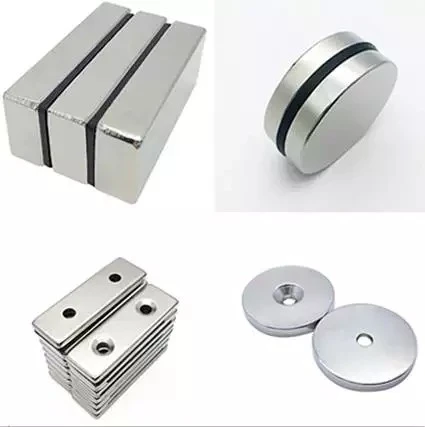

Shape	Customized, Block, Disc, Cylinder, Bar, Ring, Countersunk, Arc, Half Ring, etc.

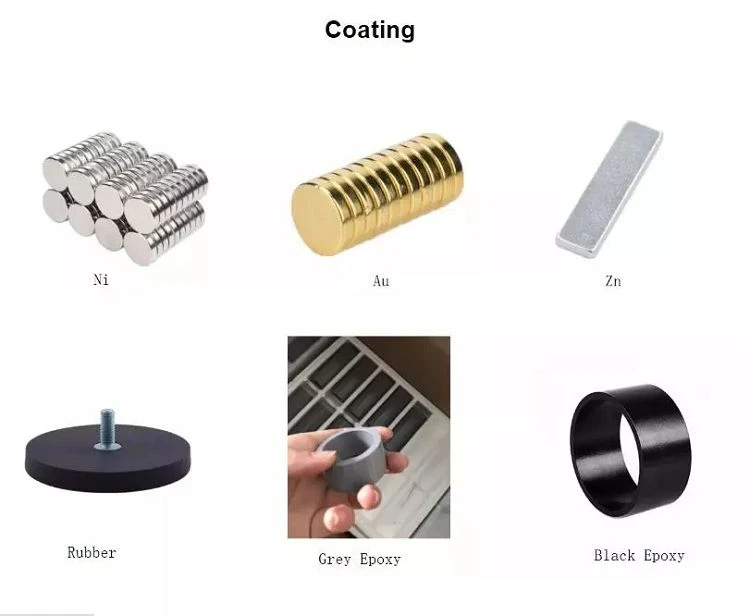

Coating	Ni-Cu-Ni, Ni, Zn, Gold, Silver, Epoxy,  etc.
Size Tolerance	For different sizes, tolerance will be from  - 0.05mm  to +0.1mm
Max.  Working  Temperature	Grade	Max. Working Temperature
	N35-N52	80°C
	35M-48M	100°C
	35H-48H	120°C
	33SH-45SH	150°C
	33UH-40UH	180°C
	30EH-38EH	200°C
	28AH-35AH	220°C



Size

Diameter (mm)	Thickness (mm)
3	1/2/3
4	1/2/3/4
5	1/2/3/4/5/10
6	1/2/3/4/5/6/10/15
8	1/1.5/2/3/4/5/6/8/10/30
10	1/1.5/2/3/4/5/6/8/10/15/20/30
12	1/1.5/2/3/4/5/6/8
15	1/2/3/4/5/6/8/10/20/30
18	2/3/4/5/6/8
20	1/2/3/4/5/6/8/10/15
25	2/3/4/5/8/10
30	2/3/4/5/6/8/10/15/20/30
40	3/4/5/8/10/15/20/30
50	5/10/20/30

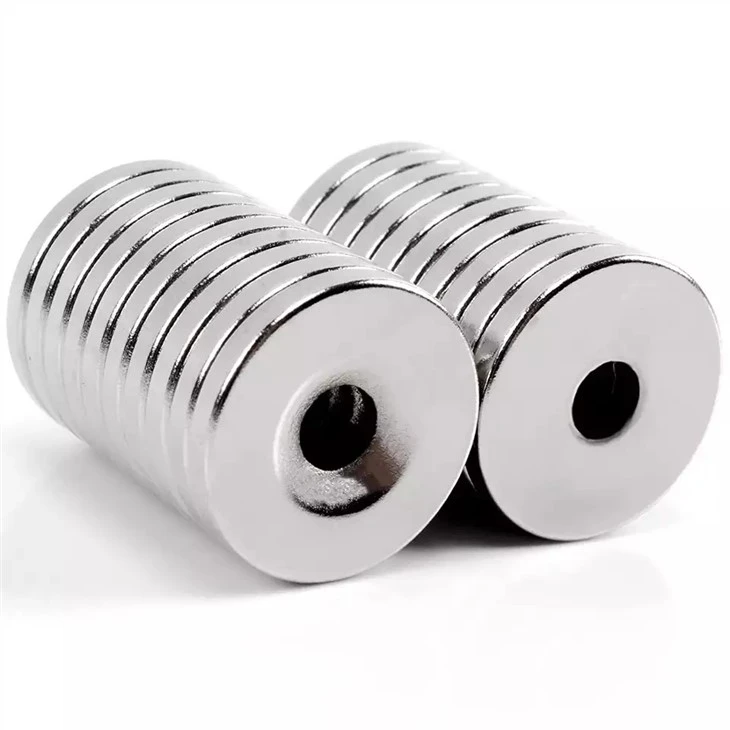

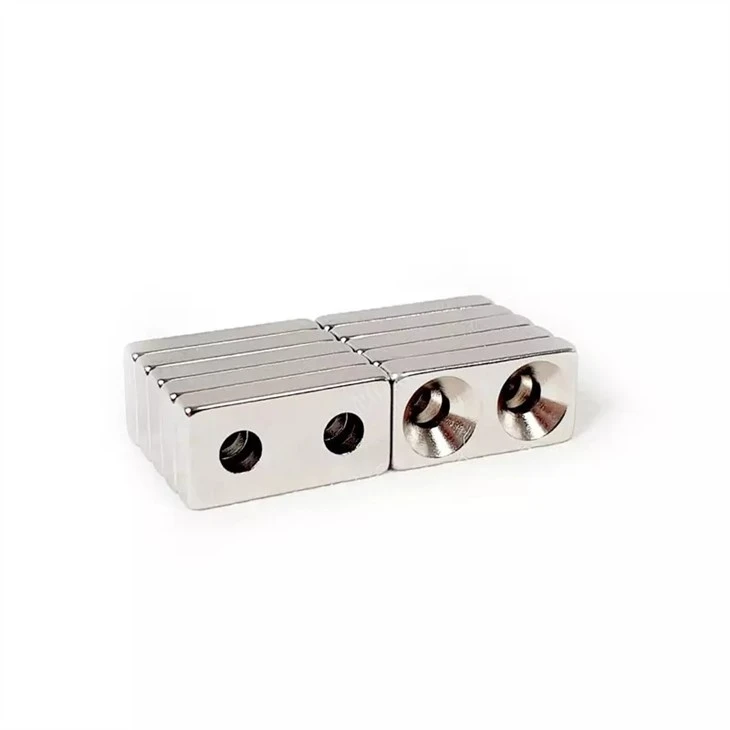

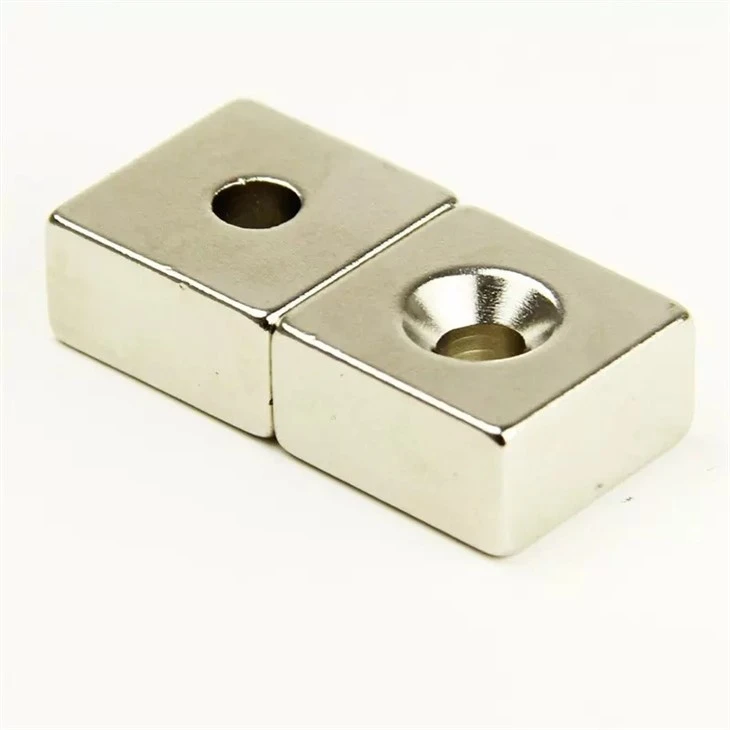

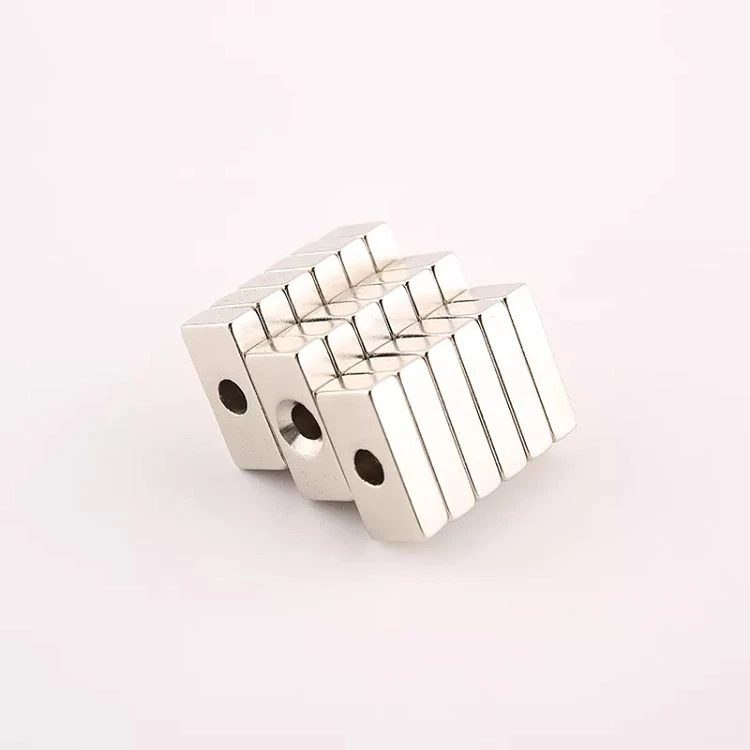

Countersunk magnet display

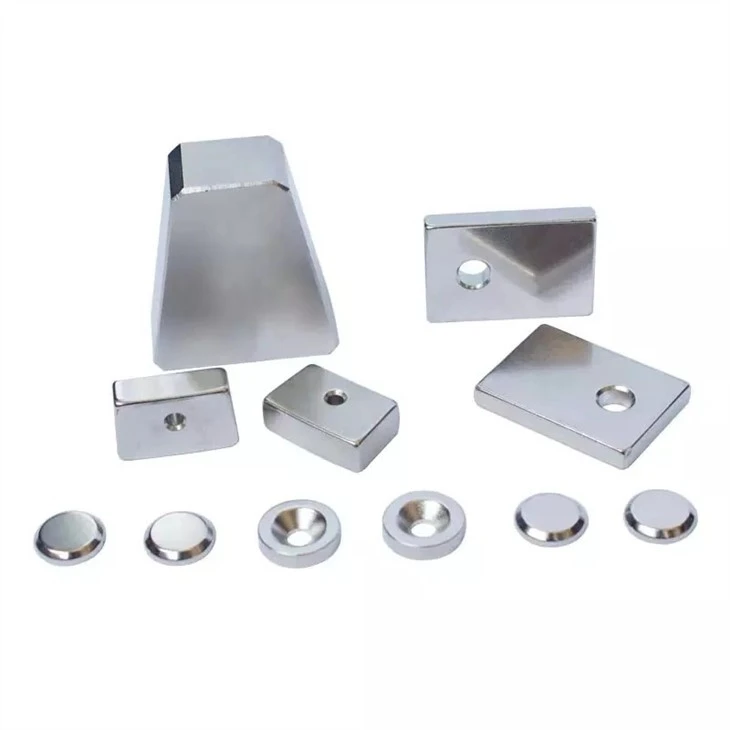

Related magnet Products

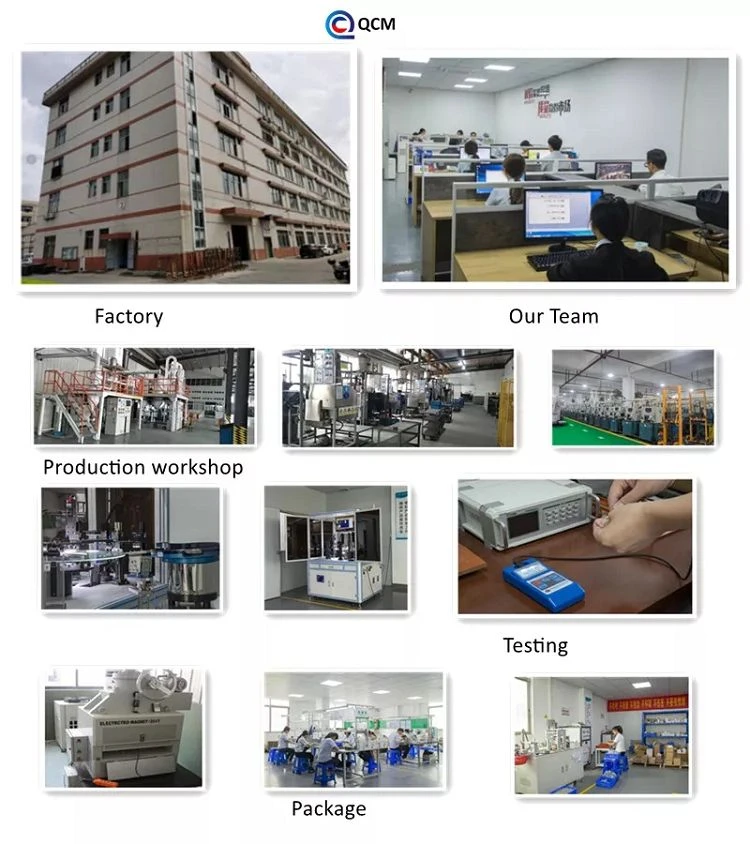

Company Information
