Sm2Co17 Magnet

Sm2Co17 Magnet

Essential details

Place of Origin: Fujian, China

Brand Name: QC

Model Number: QCSC - 001

Type: Permanent

Material: SmCo

Shape: ARC

Application: Industrial Magnet

Tolerance: ±1%, 0.05mm - 0.1mm

Processing Service: Bending, Welding, Decoiling, Cutting, Punching, Moulding

Grade: YXG26, YXG28, YXG30, YXG26H, YXG28H, YXG30H

Delivery Time: 15 - 21 days

Size: Customized

Coating: Ni, Zn, NiCuNi

Magnetism direction: Axially Magnetized

Density: 7.6g/cm³

Max Working Temperature: 250 - 350°C

Payment Terms: 30% Deposit, 70% Balance before shipping

Certification: MSDS





Product Description

1. Dimensions: According to your requirements

2. Grade: YXG26, YXG28, YXG30, YXG26H, YXG28H, YXG30H

3. Max Operating Temperature: 250 - 350 degrees Celsius

4. Material: SmCo5, Sm2Co17

5. Magnetized Directions: Axial, Diametrial, width-wise

6. Advantages: High working temperature, extremely resistant to demagnetization, and resistant to corrosion



Product Detail

Parameter Name	Unit	SmCo5	Sm2Co17
Density	g/m³	8.2 ~ 8.4	8.3 ~ 8.5
Curie Temperature	℃	700 ~ 750	800 ~ 850
Max. Operating Temperature	℃	250	350
Temperature Coefficient Of Br	%/℃	-0.05	-0.03
Vickers Hardness	HV	450 ~ 500	550 ~600
Electronic Resistivity	Ω.cm   10(-5)	5 ~ 6 x 10(-5)	8 ~ 9 x
Thermal Conductivity	W/mK	12	13



Typical product Specification

We have a professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes magnets as customer requirements which can be ensured with very high quality and precise tolerance. Please see below the dimensions of the arc SmCo Magnet.

Length(mm)	Width(mm)	Thickness(mm)	Tolerance(mm)
L 2-120	W 1-60	T 1-60mm	+/-0.05 - +/-0.1





Typical Applications of Samarium Cobalt Magnet

1. High-temperature Motors and Generators: Samarium cobalt magnets are utilized in motors and generators operating in high-temperature environments due to their excellent temperature stability. They can maintain magnetic properties, ensuring the efficient operation of these devices in such conditions.



2. Military Applications: In military fields, these magnets are applied in various equipment such as precision guidance systems, communication devices, and weapon systems. Their high magnetic strength and reliability under harsh conditions make them suitable for military use.



3. Automotive Sensors: In the automotive industry, samarium cobalt magnets are used in sensors like wheel speed sensors, position sensors, and torque sensors. They help in accurately measuring parameters, which is crucial for vehicle safety and performance control systems.



4. Aerospace Sensors: For aerospace applications, these magnets are employed in sensors for aircraft and spacecraft. They are used in navigation sensors, attitude control sensors, etc., to provide precise measurements in the demanding aerospace environment.



5. Magnetic Pump Couplings: Samarium cobalt magnets are used in magnetic pump couplings to transfer torque across a sealed barrier. This allows for leak-free pumping of fluids, especially in applications where leakage is not acceptable, such as in chemical processing plants.



6. Oil Drilling Applications: In oil drilling operations, these magnets can be found in downhole sensors and drilling equipment. They can withstand the high temperatures and pressures present in oil wells, helping in monitoring and controlling the drilling process.



7. Cryogenic Applications: At extremely low temperatures, samarium cobalt magnets are used in superconducting magnet systems, cryogenic sensors, and some cryogenic cooling equipment. Their stable magnetic performance at cryogenic temperatures makes them an ideal choice for these applications.

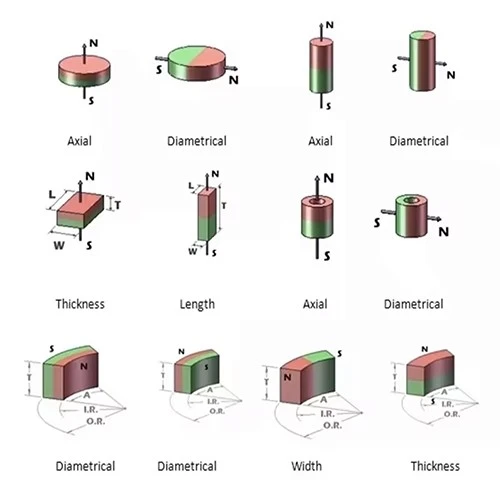

Magnetism Direction

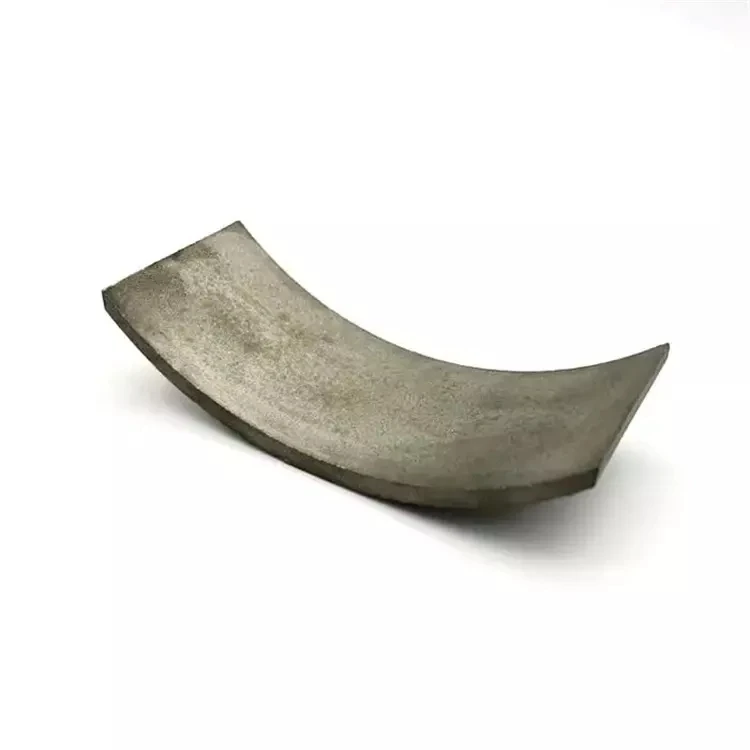

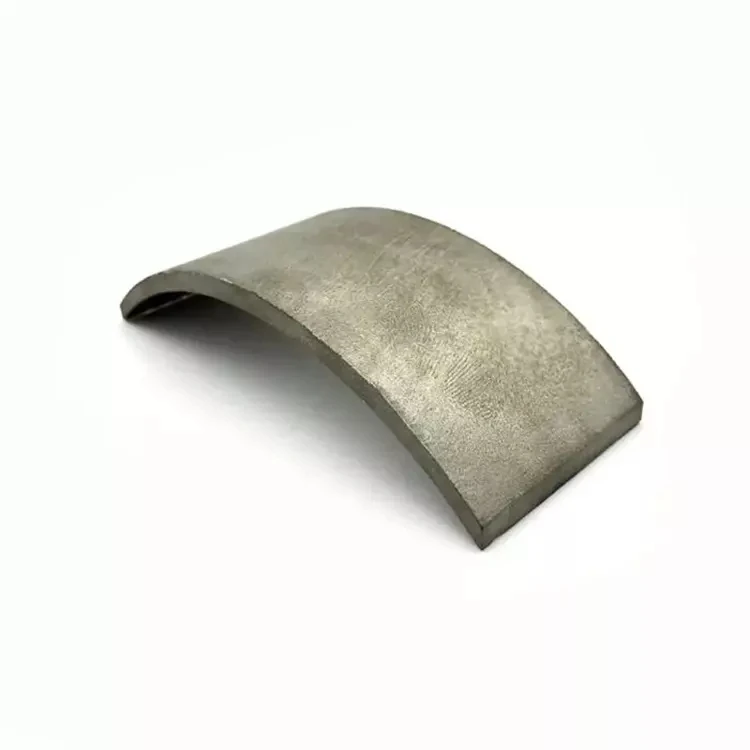

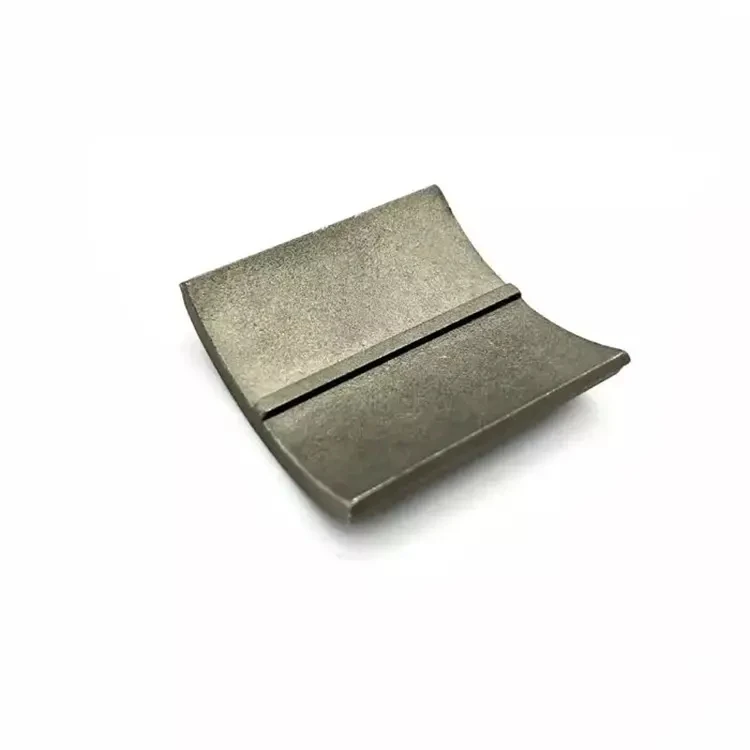

Sm2Co17 Magnet

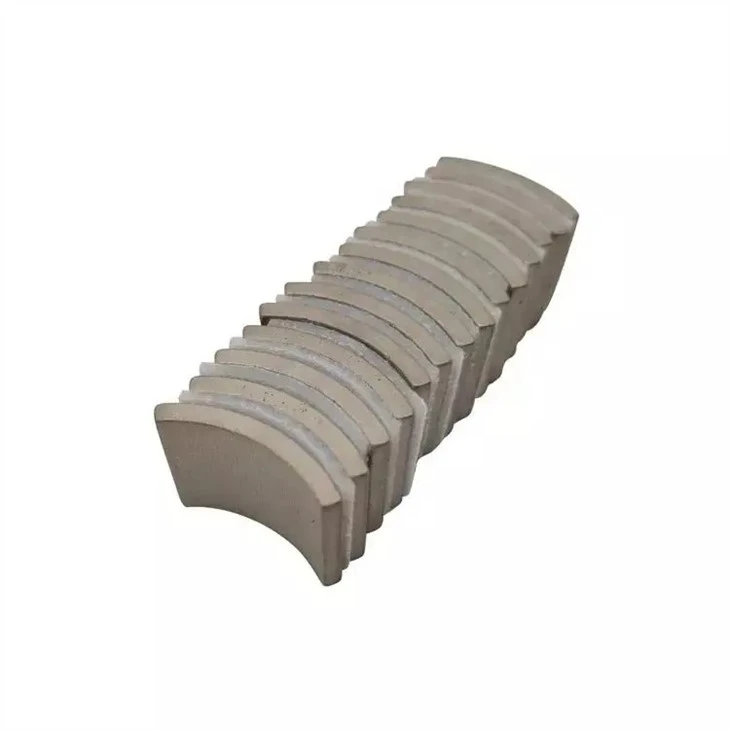

Product Showing



Magnet Coating

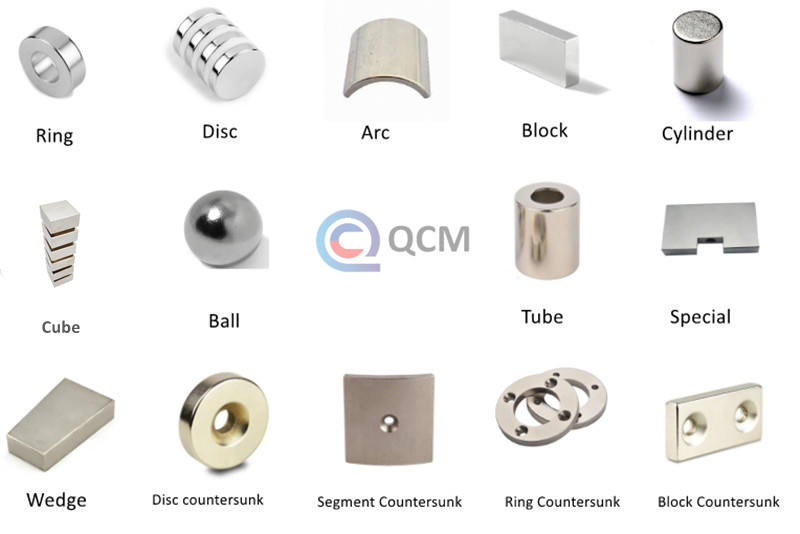

Magnet Shape

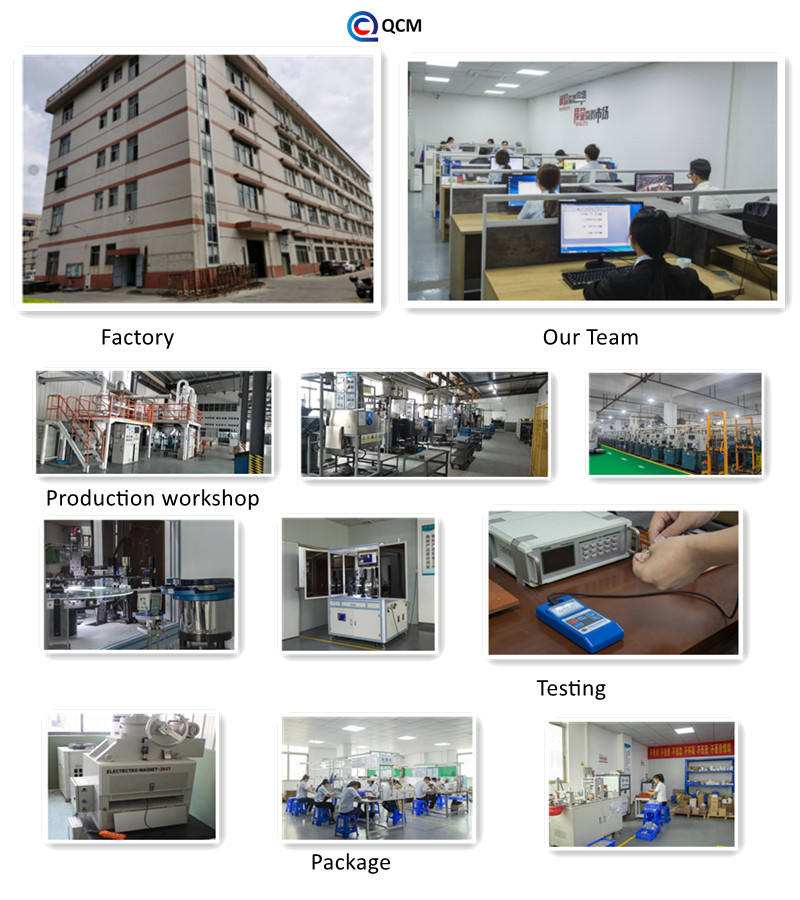

Company Information

Xiamen Qianci Magnet Technology Co., Ltd is located in Jimei District, Xiamen City, China. It is a private magnet manufacturer that integrates production, sales, and service. The company's professional products include NdFeB Magnet, SmCo Magnet, Alnico Magnet, Rubber Magnet and Ferrite Magnet. These five series of magnetic products are widely used in audio, electronic products, motors, toys, medical equipment, magnetizers, hardware and plastics, leather goods, packaging and printing, etc.



Based on the business philosophy of "integrity, struggle, enterprising", the company strives for survival with the attitude of "quality first, dedicated service", and creates the brand with the spirit of "quality-oriented, attention to detail". QianCi Magnet has become a well-known enterprise at home and abroad with high quality, high efficiency and excellent service, meeting the requirements of new and old customers at home and abroad.

Product Processing



Our Services

Scope of work
1. Supply all kinds of permanent magnets and magnetic components.

2. Help customers obtain optimization solutions in the field of magnetism.

3. Provide a full set of simulation and testing services to ensure the reliability of the product.

4. With the trend of market development, the internal logistics department will provide more economical and efficient freight services.

We look forward to becoming the long-term partner you need and trust!



Application Of Magnet

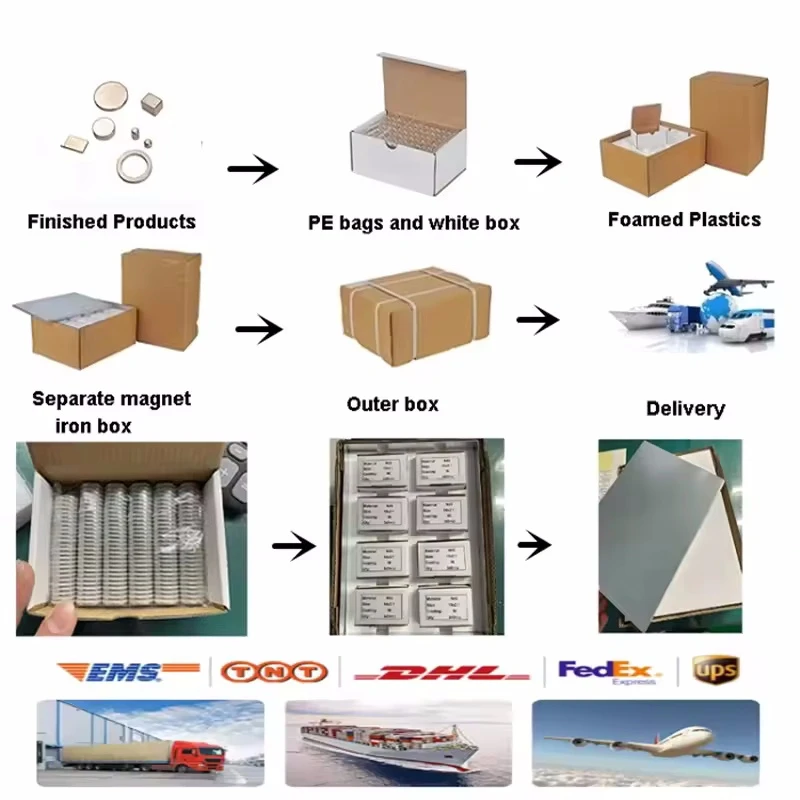

Packaging & Shipping

Package: The inner layer is sponge paper, and the outer layer is five-layer double-corrugated boxes. If you have any other package requirements, please contact us.



Our packaging is designed to better ensure the safety of your goods. We will provide professional, environmentally friendly, convenient and efficient packaging services.



Shipping: It can be shipped by sea, air, express delivery, and so on.





FAQ



Q1: What's your advantage?
A: Honest business with competitive prices and professional service on the export process.



Q2: How can I believe you?
A: We consider honesty as the life of our company; we can tell you the contact information of some other clients so you to check our credit. Besides, there is trade assurance from Alibaba, which guarantees that your order and money will be well-protected.



Q3: Where are you? Can I visit you?
A: Sure, welcome to visit our factory at No.5, Unit 1006, No.492, Xinglinwan Road, Jimei District. We are located in Xiamen.



Q4: How about the delivery time?
A: Within 15 - 35 days after we confirm your requirement.



Q5: What information do I need to provide to you before the quotation?
A: You need to provide the following information:
a. Dimension or drawing with tolerance;
b. Magnetic Direction;
c. Magnet grade or pull Force;
d. Coating;
e. Quantity and delivery time.



Q6: What kind of payment does your company support?
A: T/T, 100% Letter of Credit at sight, Cash, and Western Union are all accepted.



Q7: Do You Provide Samples? Is It Free Or Extra?
A: Yes, we can offer the sample for free, but the client needs to pay the cost of freight.
