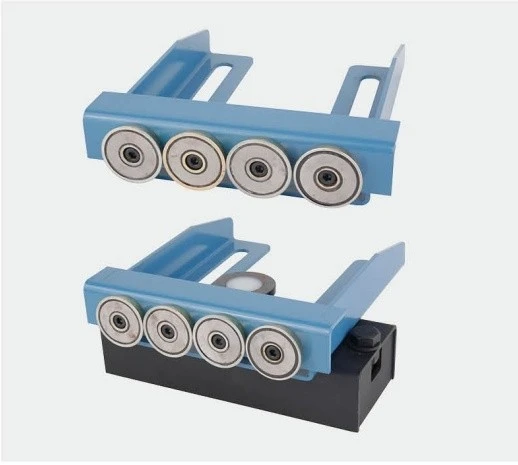

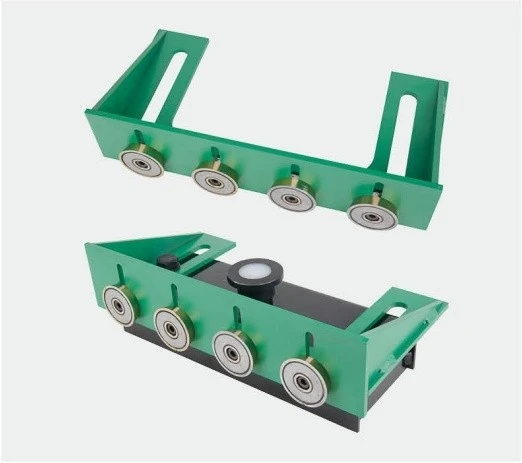

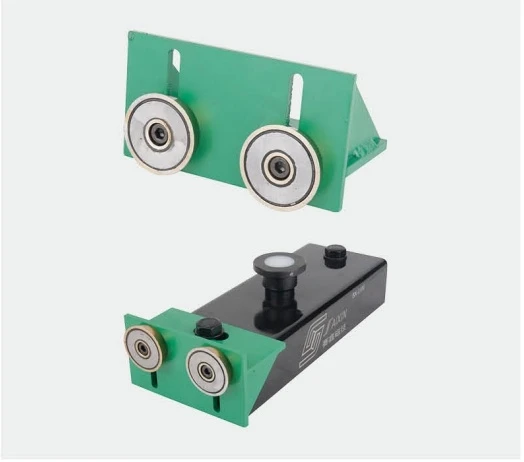

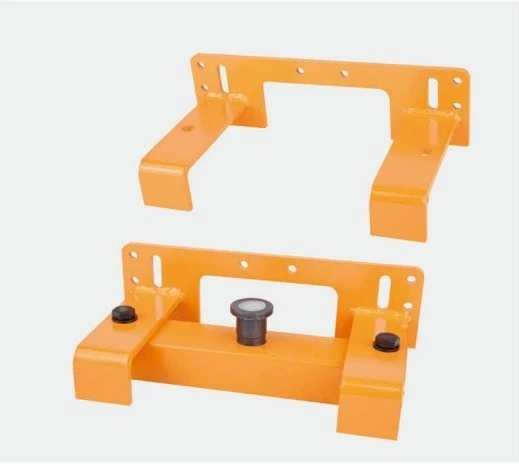

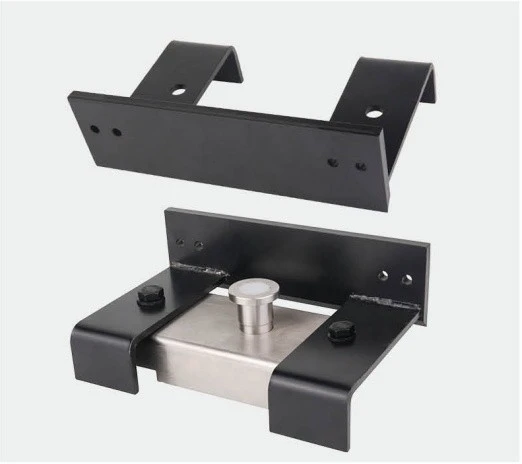

Adaptor For Precast Concrete Shuttering Magnet
Importance of Precast Concrete Shuttering Magnet
The Precast Magnet is a very important standard tool in the design and production of formwork systems.
Why do you need an adapter?
This is to solve the adaptability problem of the shuttering magnet fixed template. Due to the different bottom widths of the angle steel or channel steel molds, the QCM Precast concrete magnet may not be suitable for all molds.

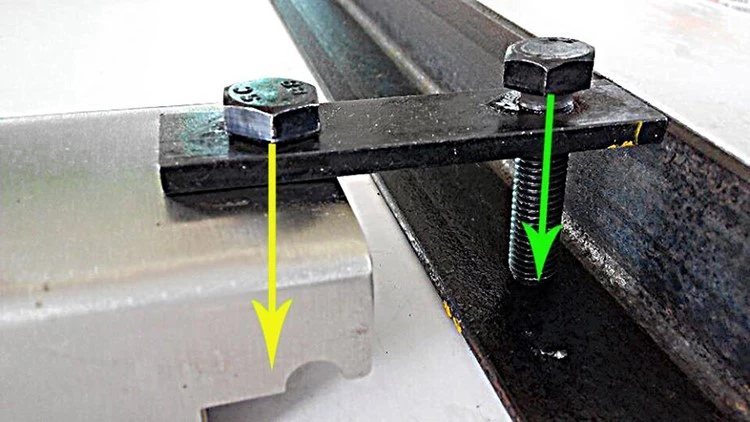

Step-type shuttering magnet with adapter usage scenario
Customizable adapters
o Design various customized adapters according to customer needs
o Purpose: Make the shuttering magnet better adapt to the mold platform and achieve better fixing effect
Function of adapters and tools
The combination of precast magnets and adapter or tool can effectively and safely fix a variety of formworks (including wooden formworks), ensure the safe and reliable connection between magnet and formwork during construction, improve the stability of magnet, and is particularly suitable for use on lifting platforms.
Features of the adapter
| category | Details |
| The risks of not having an adapter | The shutter magnets will not function at their best, which can lead to safety hazards and inefficiencies. |
| Adapter Application | Meet any fixing requirements of the formwork system (such as fixing grooves, right-angle ends, L-shaped side forms) |
| Steel adapter use | Steel adapters are used to quickly fix formwork elements such as door and window recesses, wooden formwork, reinforced concrete columns, etc. |
| Adapter compatibility with precast magnets | Suitable for shuttering magnets of 600KG, 800KG, 900KG, 1000KG, 1350KG, 2100KG |
| Design advantages of adapters | Tightly combined with the magnetic chuck, it is not easy to produce gaps and looseness under the action of external forces, helping to achieve the best quality of concrete wall panels. |
| Adapter assembly convenience | Supports M12, M16, M18 double-start threads, and can be easily assembled into the template magnet |

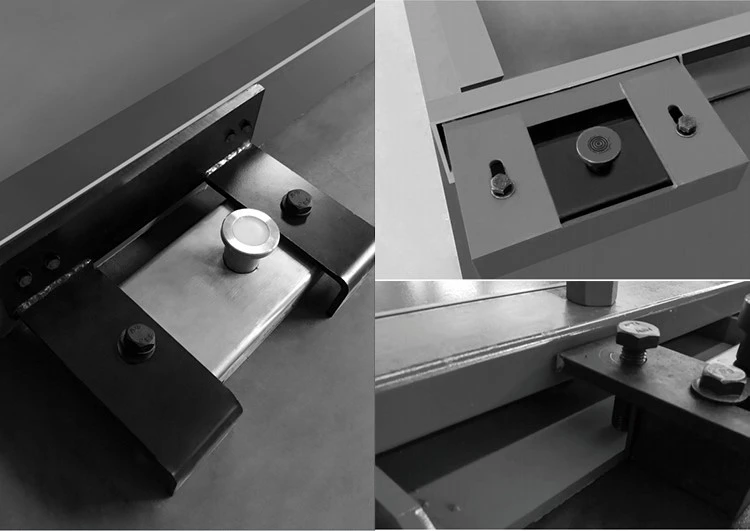

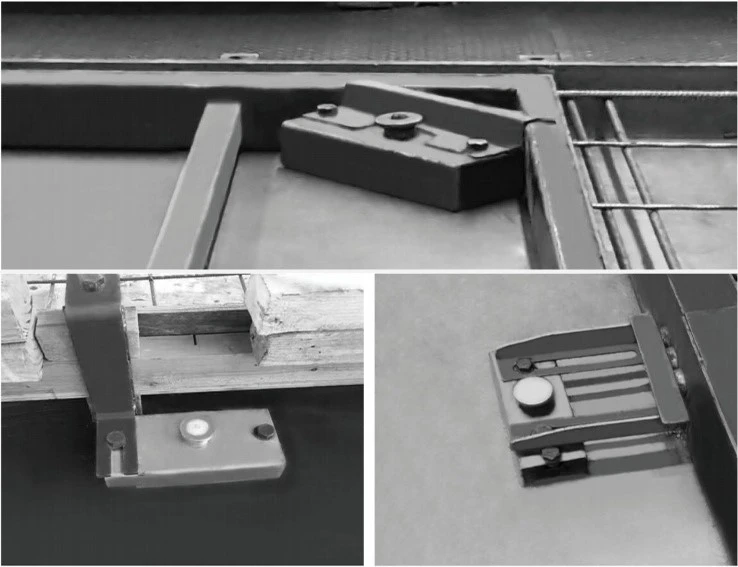

Adapter and Assembly Parts Usage Scenarios
