Fully Grouted Coupler Filled Sleeve For Rebar Connections
What is a grout sleeve connection?
Grouting sleeves are metal cylinders used for rebar connection. Two reinforcing bars are inserted from both ends of the sleeve, which is filled with cementitious grout to realize the butt jointing of reinforcing bars through the force transferring effect of the grout. Sleeves connected at both ends with sleeve grout are full grouted sleeves. Sleeves that are connected by sleeve grouting at one end and mechanically connected (e.g., by screwing) at the other end are semi-grouted sleeves. Grouting sleeve is the most important connecting member of assembled concrete structure, used for the connection of longitudinal stress steel bar. The tensile strength of the reinforcing sleeve grouted connection joint should not be less than the standard value of the tensile strength of the connecting reinforcement, and the damage should be broken in the reinforcement outside the joint.
|
|
||||||||
|
Item |
Reinforcement Steel Dia. (mm) |

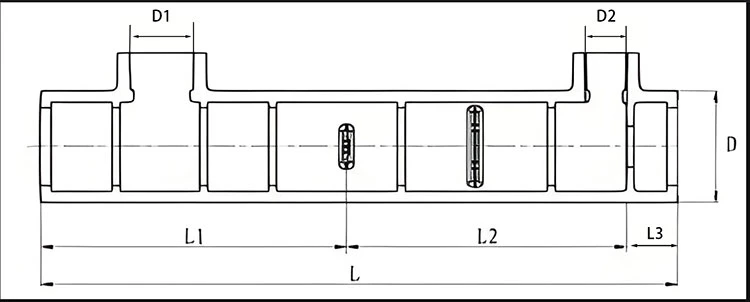

Dimensions(mm) |
||||||
|
L |
L1 |
L2 |
L3 |
D |
D1 |
D2 |
||
|
GTZQ4 12 |
12 |
250 |
120 |
108.5 |
21.5 |
44 |
25 |
16 |
|
GTZQ4 14 |
14 |
280 |
135 |
123.5 |
21.5 |
46 |
25 |
16 |
|
GTZQ4 16 |
16 |
310 |
150 |
138.5 |
21.5 |
48 |
25 |
16 |
|
GTZQ4 18 |
18 |
350 |
170 |
158.5 |
21.5 |
50 |
25 |
16 |
|
GTZQ4 20 |
20 |
370 |
180 |
168.5 |
21.5 |
52 |
25 |
16 |
|
GTZQ4 22 |
22 |
410 |
200 |
188.5 |
21.5 |
54 |
25 |
16 |
|
GTZQ4 25 |
25 |
450 |
220 |
208.5 |
21.5 |
58 |
25 |
16 |
|
GTZQ4 28 |
28 |
505 |
250 |
233.5 |
21.5 |
62 |
25 |
16 |
|
GTZQ4 32 |
32 |
570 |
280 |
268.5 |
21.5 |
66 |
25 |
16 |
|
GTZQ4 32Q |
32 |
650 |
320 |
308.5 |
21.5 |
75 |
25 |
16 |
|
GTZQ4 36 |
36 |
650 |
320 |
308.5 |
21.5 |
75 |
25 |
16 |
|
GTZQ4 40 |
40 |
810 |
405 |
375 |
30 |
95 |
G1/2 |
G1/2 |
Features:
1. Plastic expansion: after mixing with water, it starts to expand continuously, which can compensate for the plastic contraction brought about by evaporation of water and so on;
2. Post-expansion: Post-expansion (expansion after hardening) under closed conditions ensures that the reinforcement is firmly connected with the sleeve;
3. Early strength: 3D strength grout 28D can reach the common requirements, up to more than 100MPa final strength;.
4. Green development and environmental protection: non-toxic, odorless, non-polluting, will not burn, no harm to the environment and operating managers;
5. Mobility: initial flow up to 340mm, up to 380mm;
6. 100% rebar breaking performance
7. Full tension joints, rebar breakage under tensile test
8. High tensile strength and yield strength, up to JGJ107, JG / T398 standards, etc;

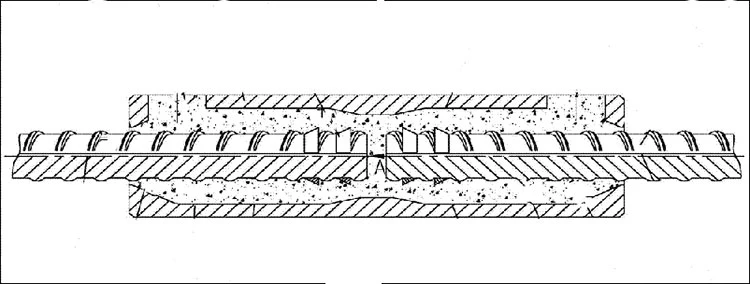

Working principle of the fully grouted coupler

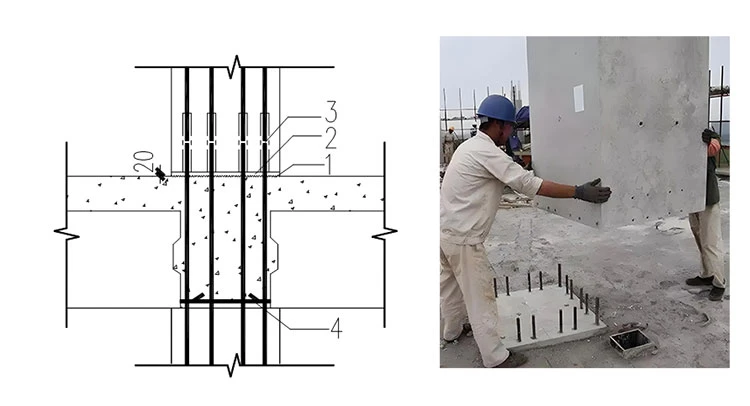

Application of Fully Grouted Coupler - Column
Application of Fully Grouted Coupler---Shear Wall
1-unconnected vertical distribution steel bars; 2-connected vertical distribution steel bars; 3-connection joints

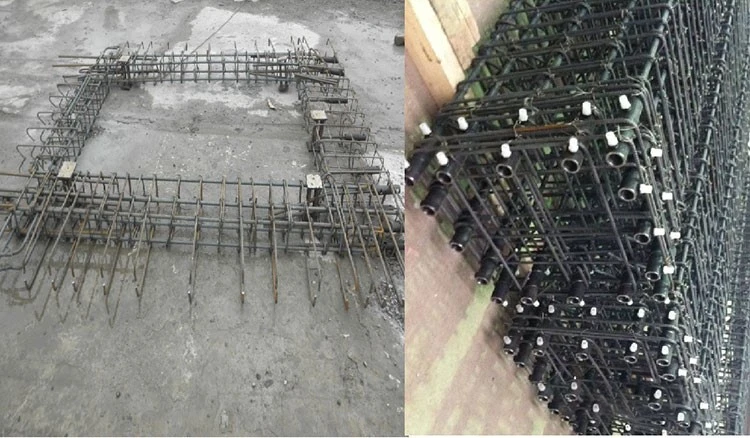

Application of grouted coupler in precast concrete shear wall

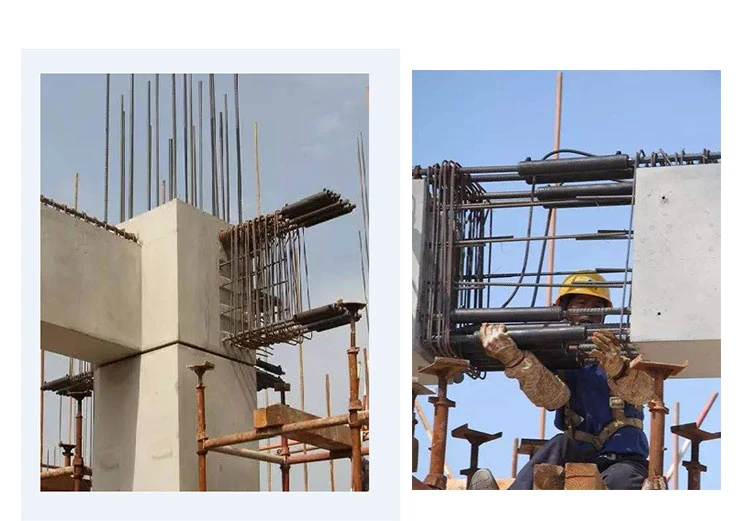

Application of fully grouted coupler in precast composite beams
