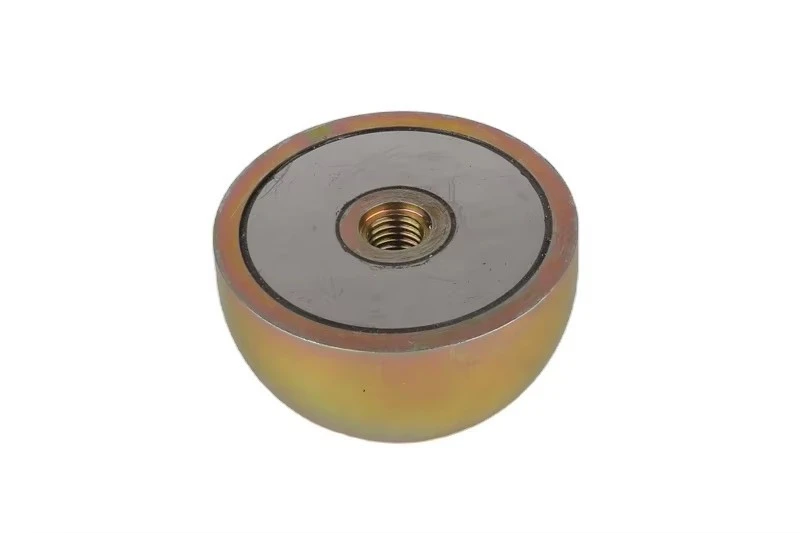

Spherical Head Magnetic Recess Former For Lifting Foot Anchor

The Spherical Head Magnetic Recess Former for lifting foot anchor is a precast concrete accessory designed to provide a secure anchor point for precast elements. The system is designed to efficiently lift and transport precast elements to the installation site. The system consists of a spherical head lifting foot, a magnetic groove formwork and a lifting system. The system is used in conjunction with a Lifting clutch (face type) to lift precast concrete elements.

A lifting clutch is a device that is used to lift precast concrete elements. It is designed to incorporate a specific anchoring system to ensure a secure connection between the load and the lifting equipment. A face type lifting clutch has a flat surface that can be fastened to the load face, providing a direct connection with the precast concrete element.

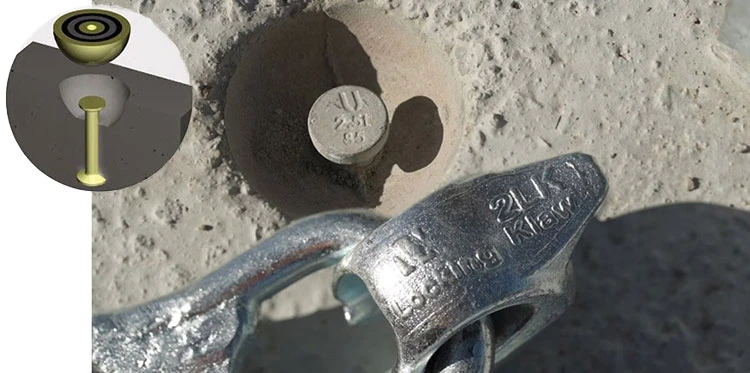

The type of anchor is located on the face of the concrete element

The Spherical Head Magnetic Recess Former Lifting System is available in a range of sizes to fit different precast components. The system is designed to be compatible with most types of precast components and can be customized to suit specific requirements. Some of the standard parameters of the system include:

- Load capacity: 1.3-10 tons

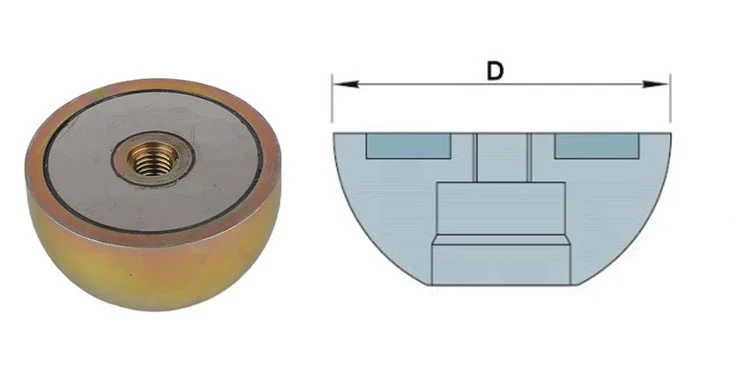

- Head diameter: 60-118 mm

- Lifting height: 80-200 mm

- Magnetic force: 50-190 kg

When using the Spherical Head Magnetic Recess Former, it is essential to follow specific guidelines. Firstly, ensure that the magnetic surface is clean to avoid any dust or debris that may reduce the strength of the magnetic connection. Secondly, confirm that the spherical head fits precisely into the foot anchor socket. Thirdly, avoid any shocks or impacts that may damage the magnetic recess former.

The Spherical Head Magnetic Recess Former has several features and advantages that make it an essential tool in the construction industry. Firstly, it is made of high-quality materials that ensure durability and longevity. Secondly, it has a spherical head that fits perfectly into the foot anchor socket, guaranteeing a strong and reliable connection. Thirdly, it has a magnetic surface that increases the installation speed and reduces the time taken to lift the load. Fourthly, it provides a safe and secure lifting process.

Spherical Head Magnetic Recess Former for lifting foot anchor working scene

It is essential to ensure that the Spherical Head Magnetic Recess Former is compatible with the specific lifting clutch that you are using. A lifting clutch's compatibility will depend on specific factors such as the load capacity, the anchor system, and the shape and size of the load.

The Spherical Head Magnetic Recess Former requires little maintenance. Ensure that the magnetic surface is clean and free of debris to ensure maximum magnetic strength. When not in use, store the recess former in a dry place to avoid rusting or corrosion.

The Spherical Head Magnetic Recess Former is an essential tool in the construction industry. It provides a reliable and robust connection between the load and the lifting clutch and ensures a smooth and safe lifting process. It is vital to follow specific guidelines when using the recess former to ensure maximum efficiency. By maintaining the recess former, you can increase its lifespan and ensure its effectiveness in the construction industry.
