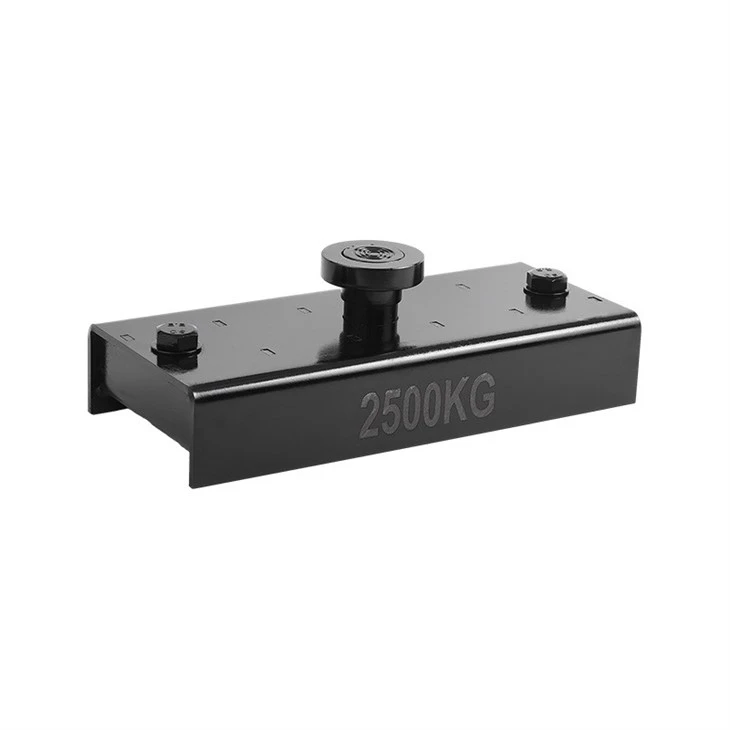

2500kg Carbon Steel Shuttering Magnet

This series of magnetic boxes is specially developed for fixing wooden or iron side molds. Through the rational design of rare earth permanent magnet structure, it releases an adsorption force far exceeding the magnet itself. At the same time, the economical and practical carbon steel shell can also effectively shield and protect the internal magnetic core. Professional welding nuts and 12.9-grade screws are used on both sides to facilitate the connection of external clamps of different shapes, so as to better fix the side mold.

2500KG Tensile Carbon Steel Shell Shuttering Magnet: QCM-2500
Type: Carbon Steel
Composition: NdFeB
Net Weight: 7.8kg
Application Temperature: Up to 80°C
Adhesion (KG): 2500KG
Dimensions (L*W*H, mm): 320x120x60mm
Application Areas: Precast Concrete Panels and Walls, Bridges and Infrastructure, Precast Columns, Beams, Stairs

Surface treatment: blackening, painting, galvanizing, etc.
Working temperature: room temperature (below 80℃), other high temperature environments, customizable.
Service life: Due to the use of permanent magnets, it can be used permanently in principle. However, considering the external use environment and the corrosion resistance of the carbon steel outer box and other connecting parts, it can usually be used for 2-3 years. Of course, it also depends on the daily maintenance of the magnetic box.

Shuttering Magnet, also known as precast concrete magnet or button magnet, is composed of NdFeB magnet, steel housing, magnet plate and knob. Simply press the button with your hand or foot to start. For the large 2500kg carbon steel shuttering magnet, you can use a wooden hammer or rubber hammer to tap it gently. To disable it, the magnet can be released through a steel rod (pull the button). Precast concrete magnets can be used alone or connected to the adapter to fix the formwork.

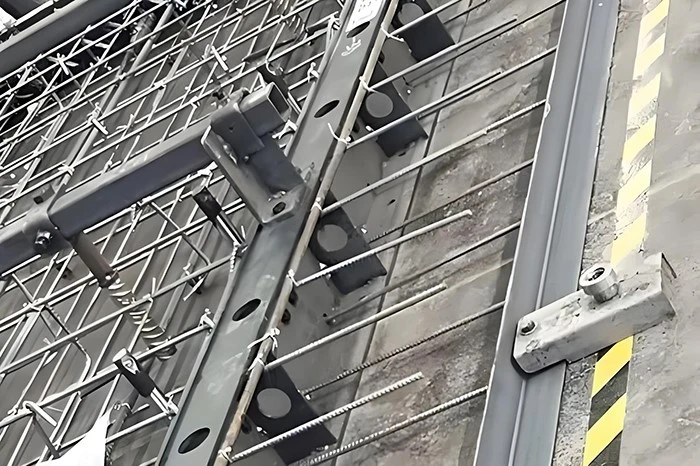

Step-type shuttering magnet usage scenario diagram

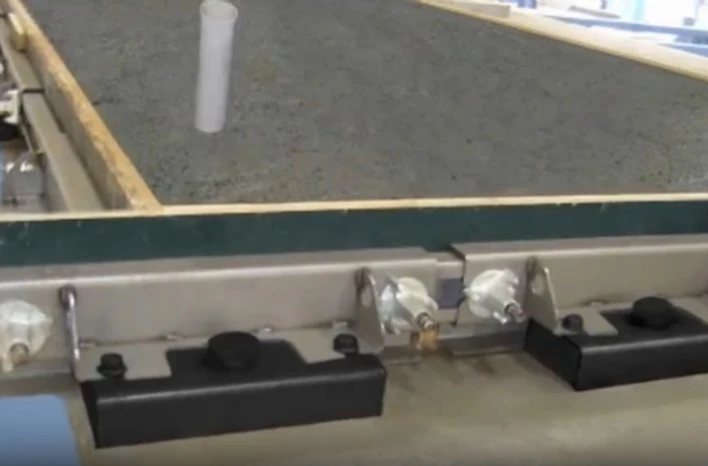

2500kg concrete magnet usage scenario diagram

Advantages of Shuttering Magnet

Very easy and precise positioning, simplifying the formwork assembly process, greatly reducing labor costs and time. Faster installation and removal, fewer workers are required, saving costs and improving project efficiency.

No more welding and bolting that damages stainless steel plates.

Long service life and reusable. It allows users to reuse formwork molds, saving money in the long run. The return on investment will also be shorter.

Significantly improve the working environment, no need to drill holes in the surface, avoid welding, and no need to bolt the formwork table. The surface will remain intact, making it last longer. At the same time, ensure site safety.

2500KG Magnetic Force Carbon Steel Shell Precast Shuttering Magnets provide a wide range of applications, fully suitable for various weights of concrete precast scenes, whether it is a small concrete panel or a large bridge member.
