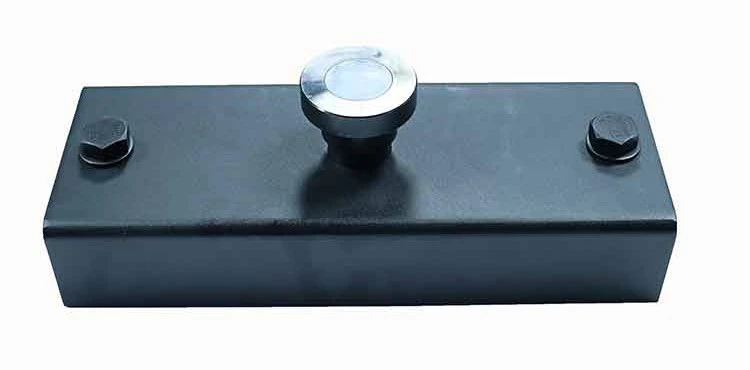

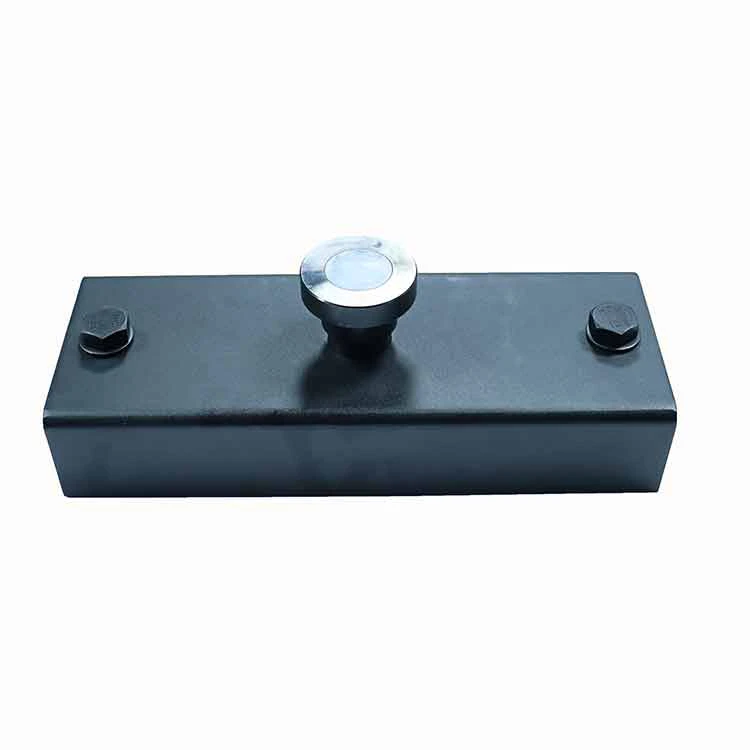

Shuttering Magnet For Concrete Formwork

Safe and efficient Shuttering magnets can be easily placed on the steel platform. With the button on the top of the box pressed, the magnets in the box are pressed down and fit seamlessly with the steel platform. At this time, the prefabricated magnets release a huge magnetic force to firmly fix the concrete frame.As can be seen from the schematic diagram below, this is a step precast concrete magnet. The uniquely designed notch groove is used to press down the edge of the frame.

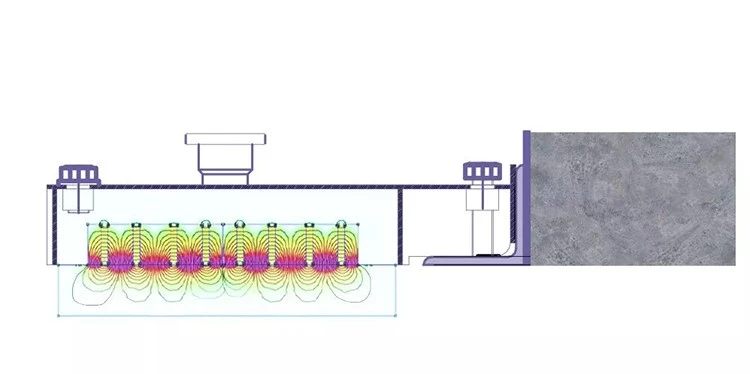

Precast concrete stepping magnet working principle diagram

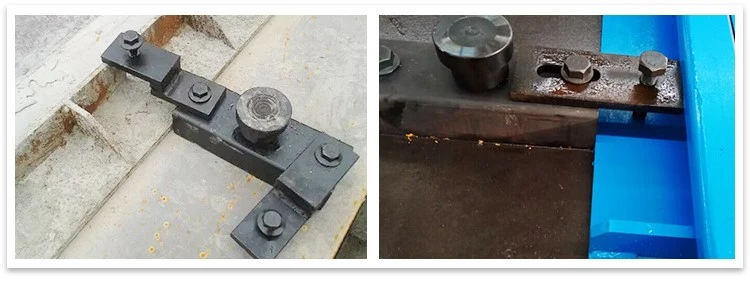

If you choose a product without step magnet, you can lock the adapter with the screws on the box and let the adapter fix the edge of the frame.

Shuttering Magnet Description:

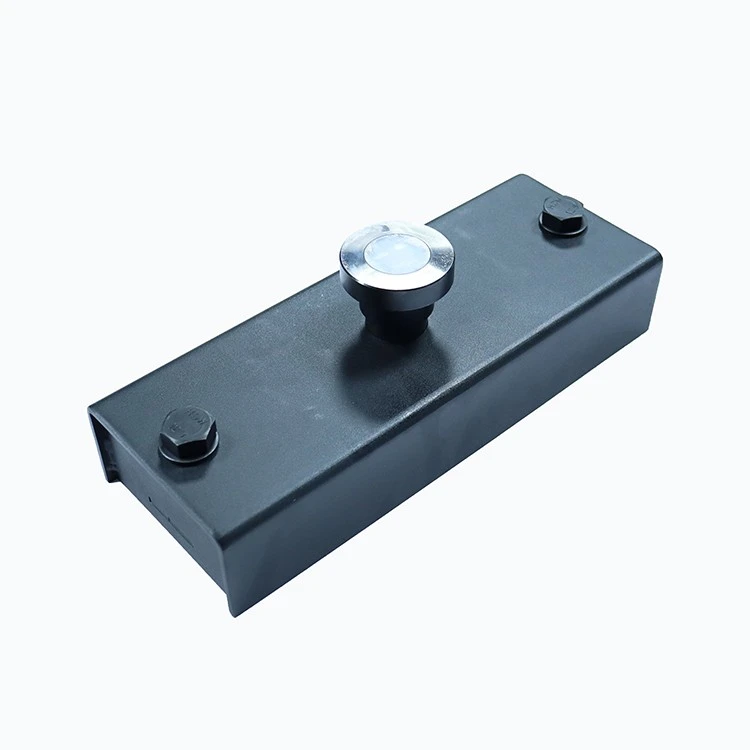

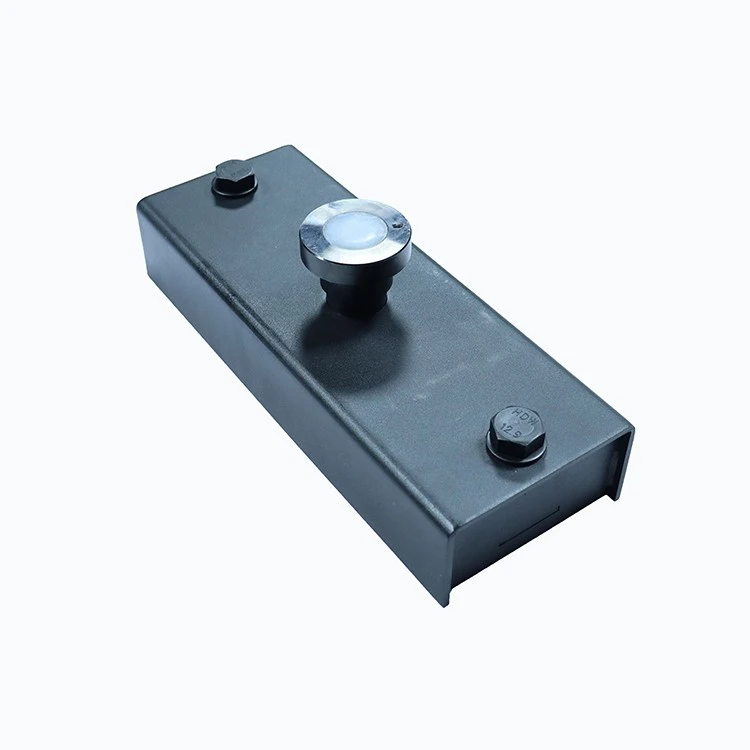

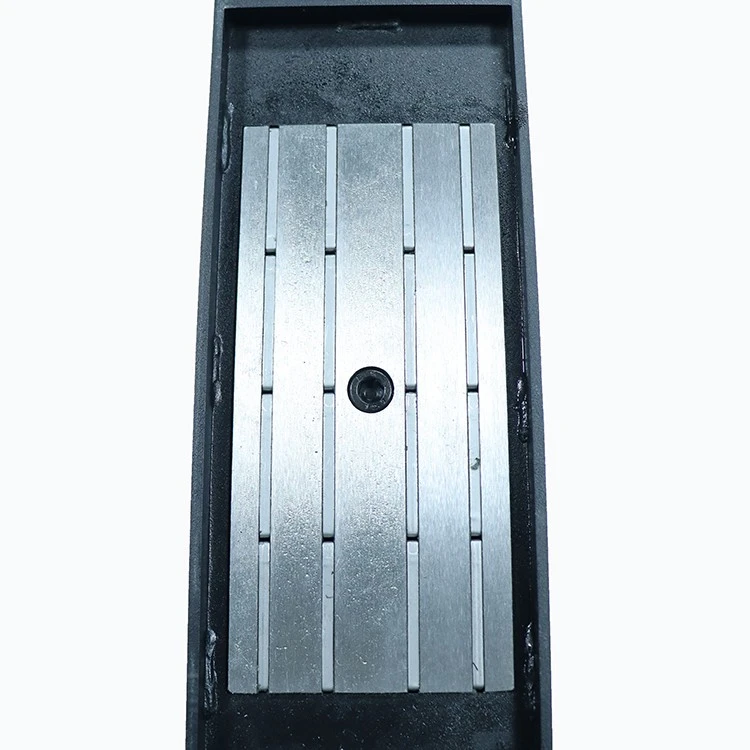

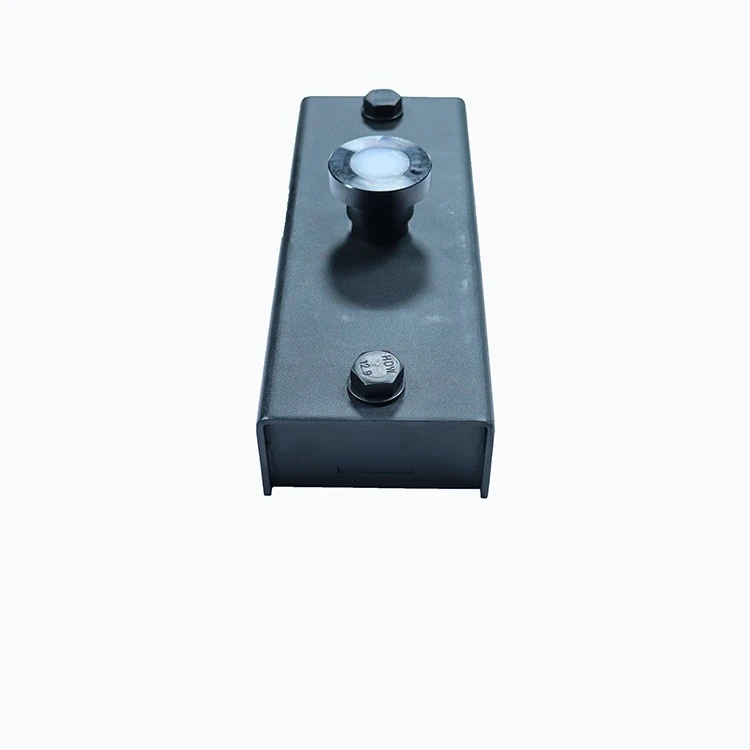

As the main force of the new upgraded products, the shuttering magnet for concrete formwork 1600kg series has large magnetic force and excellent reusability and durability. It has a beautiful appearance, with a carbon steel shell and a ferrule to double protect the fragile magnet. The magnetic matrix consists of 16 permanent strong magnets (neodymium magnets) to amplify the power of the activated magnet. It works on all concrete frames, including steel or wooden formwork frames. The combined operation with the adapter is more flexible. The 12.9 top-grade screws used to connect the adapter have high hardness and tensile strength. Its Rockwell hardness (HRC) can reach between 39-44 and its tensile strength can reach 1220N/mm2. Therefore, the screws can ensure an unbreakable connection with the adapter and provide strong support for the production of precast concrete components. The seamless design of the precast wall production magnet is also a highlight of the product. The product designers strive to minimize the gap to avoid the intrusion of small particles such as concrete, fine sand, and iron filings during the production process.

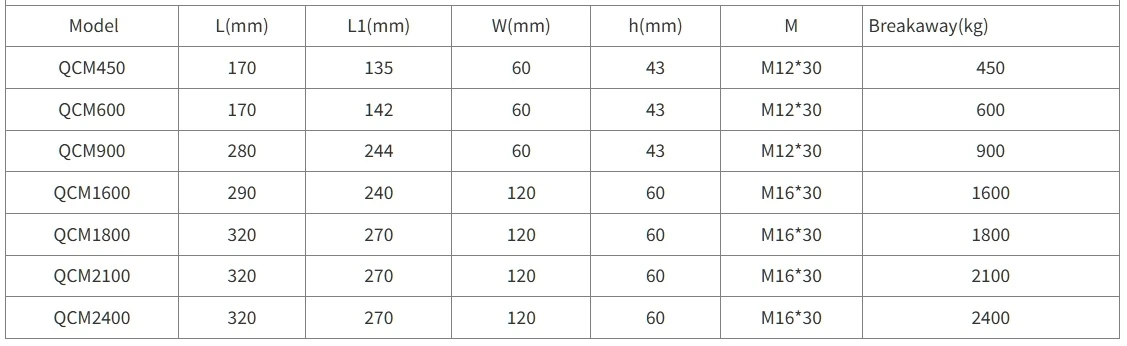

Magnet shuttering product specification sheet

Precast Magnet Detailed Specifications ：
