Water filtration is a critical process across many industries, from food and beverage production to pharmaceuticals, mining, and manufacturing. The goal of water filtration is to remove contaminants that could affect the quality of the end product or damage processing equipment. Among the many filtration methods available, magnetic filter bars are increasingly being used for their ability to attract and capture ferrous particles in liquid systems. But how do they compare to traditional water filtration methods, such as activated carbon filters, reverse osmosis, or mechanical filters? In this article, we will examine the strengths and limitations of magnetic filter bars and compare them to other common water filtration technologies.

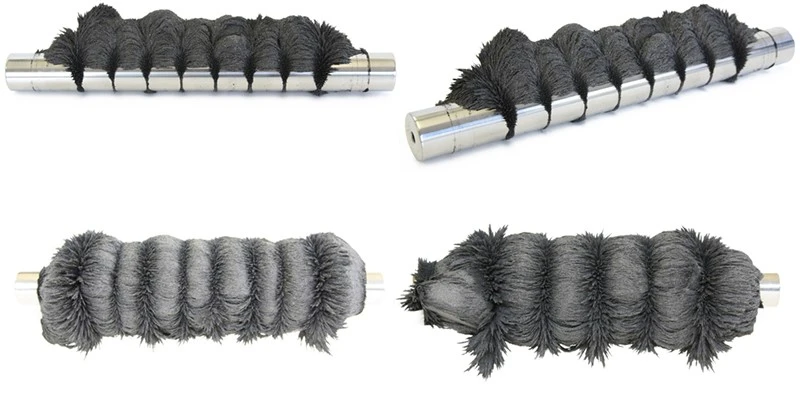

Magnetic filter bars, also known as magnetic rods or magnetic tubes, are specialized devices used to remove ferrous (iron-based) contaminants from water or other liquid flows. These devices consist of a strong magnetic core (often made of neodymium or ferrite magnets) housed in a protective casing, typically made from stainless steel. The magnetic field generated by the rods attracts and holds ferrous particles, preventing them from passing through the liquid system and ensuring that the water remains clean and free from metal contamination.
Magnetic filter bars are particularly effective in industries like food and beverage processing, pharmaceuticals, chemicals, and manufacturing, where even the smallest metal contaminants can compromise product quality and equipment efficiency.
Comparing Magnetic Filter Bars to Other Water Filtration Methods
1. Activated Carbon Filters
Activated carbon filters are one of the most commonly used filtration methods for removing organic contaminants, chemicals, and chlorine from water. Activated carbon works by adsorbing these impurities onto its surface, making it highly effective for treating tap water, industrial effluent, or even water used in food production.
Comparison:
- Effectiveness: While activated carbon filters are excellent for removing chlorine, volatile organic compounds (VOCs), and unpleasant odors, they are not effective at removing ferrous particles. Magnetic filter bars, on the other hand, excel at capturing metal contaminants like iron, steel, and other ferrous metals, which activated carbon cannot remove.
- Application: Magnetic filter bars are specifically used to address metal contamination, whereas activated carbon filters are best suited for water with organic or chemical pollutants.
- Maintenance: Activated carbon filters need to be replaced regularly as the carbon can become saturated over time. Magnetic filter bars, however, are reusable and require minimal maintenance. The only task is to clean off any accumulated metal particles from the magnetic surface.
2. Reverse Osmosis (RO)
Reverse osmosis (RO) is a filtration technology that forces water through a semi-permeable membrane, removing dissolved salts, minerals, heavy metals, and organic contaminants. It is often used in desalination plants, drinking water purification systems, and wastewater treatment applications.
Comparison:
- Effectiveness: RO is highly effective at removing a broad spectrum of contaminants, including heavy metals, salts, and microbes. However, it is less effective at removing suspended particles like larger metal debris or ferrous contamination, which is where magnetic filter bars excel. RO filters may need additional pre-filtration steps (such as magnetic filter bars) to capture metal particles before they reach the membrane.
- Application: While RO is ideal for purifying water to a very high degree, magnetic filter bars are typically used as a preliminary filtration step to capture ferrous particles before they can damage membranes or clog other parts of the filtration system.
- Cost and Maintenance: RO systems require significant energy to operate and frequent maintenance due to membrane fouling. Magnetic filter bars, on the other hand, are low-maintenance and cost-effective, providing a simple, passive solution to remove ferrous particles.
3. Mechanical Filters
Mechanical filters use physical barriers such as screens or mesh to trap suspended solids, particulate matter, and larger contaminants in water. These filters are commonly used in various industries, including municipal water treatment and industrial processing.
Comparison:
- Effectiveness: Mechanical filters are designed to capture larger particles and debris, but they are not effective at capturing smaller metal contaminants like ferrous particles. Magnetic filter bars are far more effective at attracting and holding fine metal particles that mechanical filters might miss.
- Application: Mechanical filters are useful for pre-filtering larger particles, while magnetic filter bars are ideal for fine metal separation in systems where magnetic contamination is a concern.
- Maintenance: Mechanical filters require regular cleaning and replacement, as they can get clogged with particulate matter. Magnetic filter bars are reusable, with minimal maintenance required to remove accumulated metal particles.
4. Ultraviolet (UV) Filtration
Ultraviolet (UV) filtration is primarily used to disinfect water by killing bacteria, viruses, and other microorganisms through the use of UV light. It is commonly used in drinking water treatment and wastewater disinfection.
Comparison:
- Effectiveness: UV filtration is not designed to remove physical contaminants like metal particles or solids. Magnetic filter bars, however, specialize in removing ferrous metal contaminants that UV filters cannot address.
- Application: While UV filtration is excellent for disinfection, magnetic filter bars are used to address physical contamination, particularly in industries where metal particles in liquids or powders can compromise product quality and machinery performance.
- Maintenance: UV systems require regular maintenance of the light bulbs and quartz sleeves to ensure effective disinfection. Magnetic filter bars, in contrast, require little maintenance and can be cleaned and reused.
Advantages of Magnetic Filter Bars
Effective at Removing Ferrous Contaminants: Magnetic filter bars are uniquely designed to capture ferrous particles, which other filtration methods cannot address.
Low Maintenance: Unlike activated carbon or RO systems, magnetic filter bars are reusable and require minimal maintenance, making them a cost-effective solution for industries with metal contamination concerns.
Protection for Equipment: Magnetic filter bars prevent metal debris from damaging sensitive processing equipment, such as pumps, valves, and membranes.
No Need for Chemicals: Magnetic filtration is a chemical-free process, making it environmentally friendly and ideal for applications like food and beverage production where chemical residues are a concern.
Magnetic filter bars offer distinct advantages over traditional water filtration methods, especially when dealing with ferrous contamination. While technologies like activated carbon, reverse osmosis, mechanical filters, and UV filtration serve important roles in removing other types of contaminants, magnetic filter bars specialize in capturing metal particles that could otherwise damage equipment or compromise product quality. By integrating magnetic filter bars into existing filtration systems, industries can ensure a higher level of water purity, improved equipment protection, and reduced maintenance costs.
