Water Meter Magnet

Water meter magnets play a crucial role in the functioning of water meters, particularly in dry dial water meters. These magnets are essential for transferring the motion from the wet chamber, where the water flows, to the dry chamber, where the meter's counter is located. This article will explore the function of water meter magnets, their types, and the challenges they face in terms of interference and tampering.

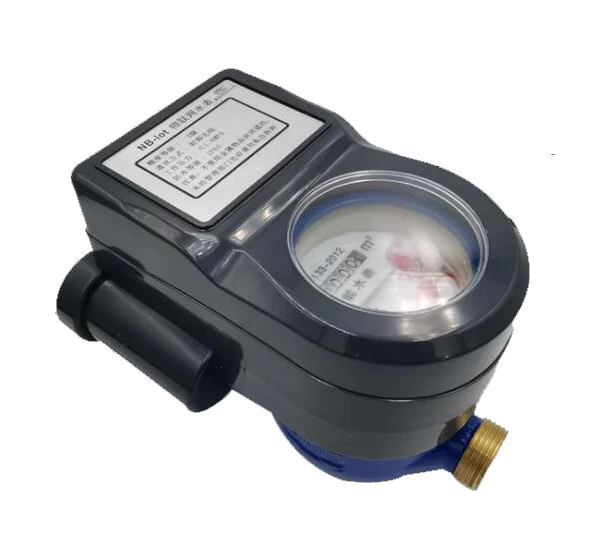

In dry dial water meters, the water flow is measured by a turbine located in the wet chamber. The rotation of this turbine is transferred to the counter mechanism in the dry chamber through a magnetic clutch. This magnetic coupling ensures that the counter mechanism remains dry and protected from water damage. The magnet used in this coupling is typically a ferrite magnet, which is robust and cost-effective.


Ferrite magnets are commonly used in water meters due to their reliability and resistance to corrosion. They provide a stable magnetic field that is essential for accurate measurement. However, with the advent of rare-earth magnets like neodymium magnets, which have much higher energy densities, there have been concerns about their potential to interfere with water meter operations. Neodymium magnets can generate magnetic fields strong enough to disrupt the magnetic coupling in water meters, leading to inaccurate readings.

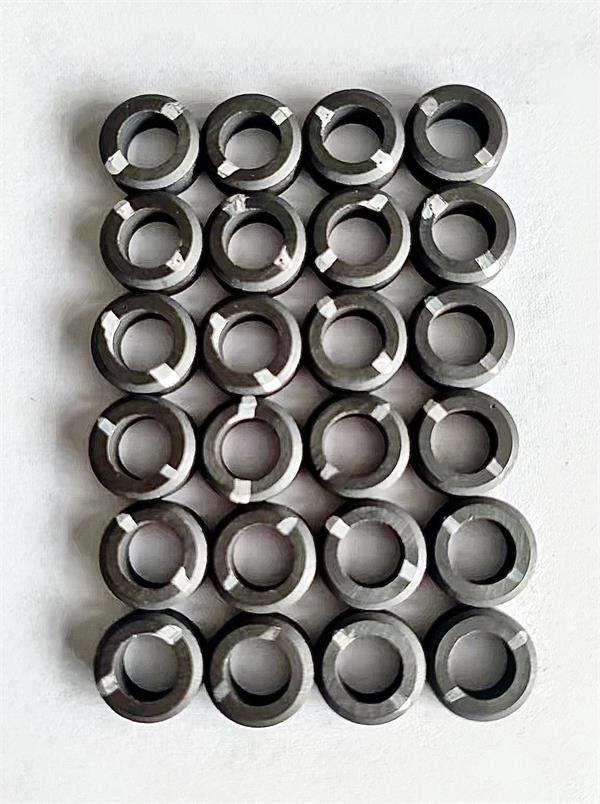

D8.5*d5*3.5

One of the main challenges faced by water meter magnets is interference from external magnetic fields. Strong magnets, such as neodymium magnets, can be placed on the meter to disrupt its operation, causing it to stop measuring water flow accurately. This phenomenon is often used for illegal purposes, such as water theft. To combat this, water meter manufacturers have developed various anti-magnetic technologies and standards. For instance, European standards require water meters to be resistant to magnetic fields up to 100 kA/m.


To protect water meters from magnetic interference, manufacturers have implemented several strategies. These include using non-ferromagnetic materials in the construction of the meter, increasing the distance between sensitive components and the meter's casing, and incorporating magnetic shielding. Additionally, some meters are equipped with sensors that can detect the presence of strong magnetic fields and alert the utility company.

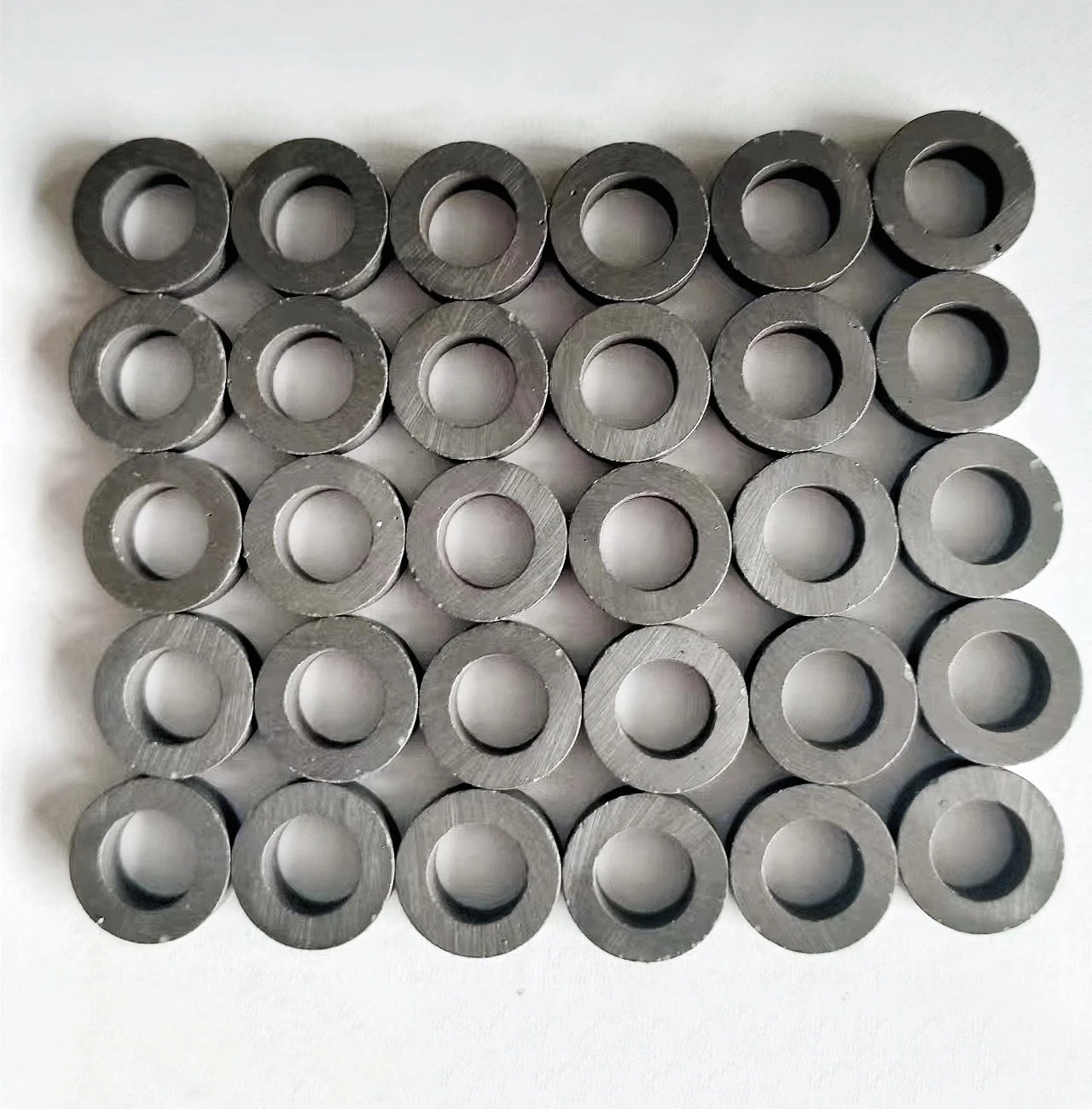

D9.5*d5.5*3.5

Water meter magnets are integral to the accurate functioning of water meters. While they provide a reliable means of transferring motion from the wet to the dry chamber, they also face challenges from external magnetic interference. As technology advances, it is crucial for water meter manufacturers to continue developing and implementing effective anti-magnetic measures to ensure the integrity and reliability of water metering systems.
