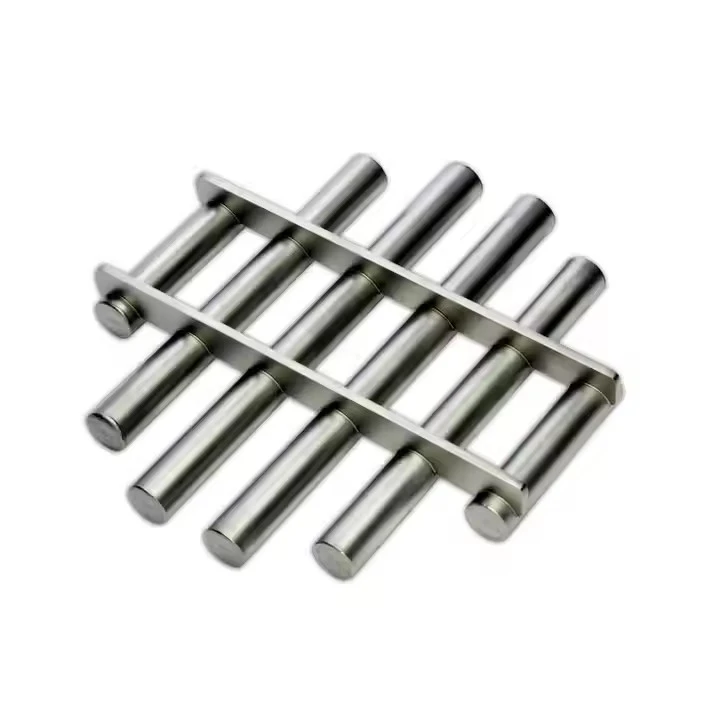

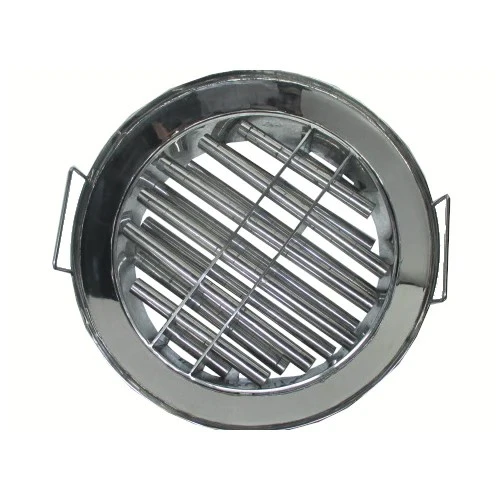

High Intensity Round Magnetic Grate
High Intensity Round Magnetic Grate
Welcome to QCM Magnet, Our high strength circular magnetic grrates are specifically designed to meet the needs of the food, plastics, ceramics, pharmaceutical and other industries. Used to filter out very fine magnetic and weakly magnetic ferromagnetic contaminants from free flowing powders and particles for control purposes.
Product Features
-
Easy Installation: Quick and hassle-free setup for immediate use.
High-Performance: Provides a powerful magnetic attraction of 15,000 gauss for effective separation of micron-sized contaminants.
Easy Cleaning: Maintains cleanliness with minimal effort.
Powerful Neodymium Magnets: Utilizes rare earth magnets for superior magnetic strength.
Certified Strength: Each grate undergoes rigorous testing to ensure certified magnetic strength.
-

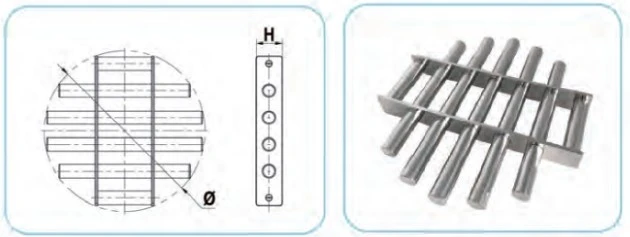

Specifications
|
|
||||
|
Specification |
Size(mm) |
No.of rods |
Weight Kg |
|
|
Φ |
H |
|||
|
MGR100 |
100 |
40 |
2 |
0.5 |
|
MGR150 |
150 |
40 |
3 |
1.3 |
|
MGR200 |
200 |
40 |
4 |
2.5 |
|
MGR250 |
250 |
40 |
5 |
4.0 |
|
MGR300 |
300 |
40 |
6 |
5.6 |
|
MGR350 |
350 |
40 |
7 |
7.8 |
|
MGR400 |
400 |
40 |
8 |
10.2 |
|
MGR450 |
450 |
40 |
9 |
12.8 |
|
MGR500 |
500 |
40 |
10 |
16.0 |
Product Options

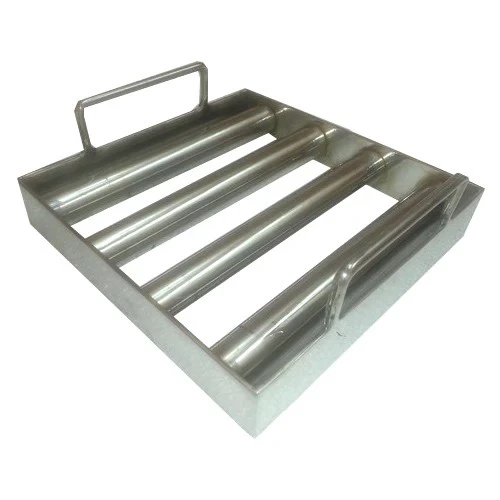

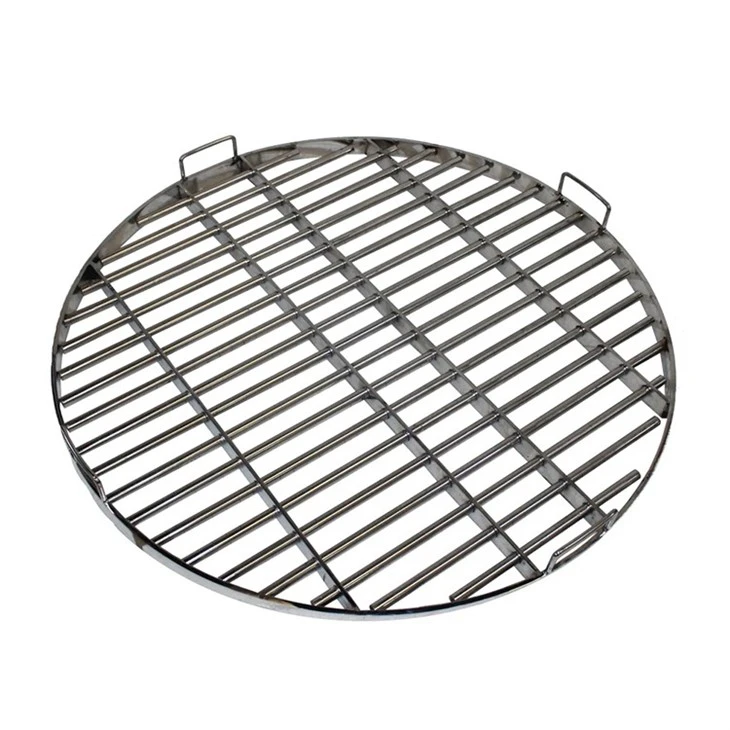

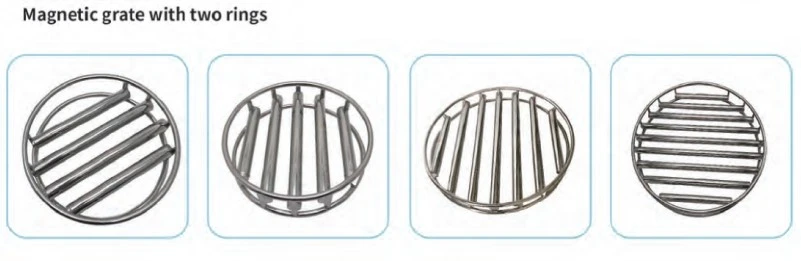

1.Various shape options, square, round, rectangular, easy-to-clean, can be manufactured to any size and equipped with any number of magnetic rods.
2.Grate magnet can be installed at chute, dumping point or receiving hopper.

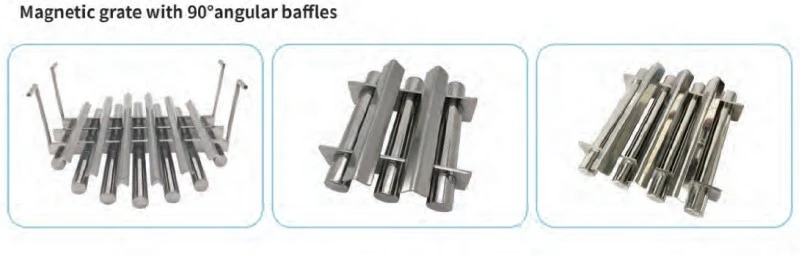

3.Grate magnet can be equipped with deflector angle and deflector round bar.
4.High Magnetic Strength: Available in popular grades of 10,000Gauss, 12,000Gauss, 13,000Gauss, 14,000Gauss, 15,000Gauss.
Customized Service
QCM accepts customized service, please list it in your email:
1.Please provide the detailed dimensions of the product
2.The magnetic strength of the product to be achieved.
3. The maximum temperature that the product can withstand
4.The material to be used for the product
5.Welding requirements
Why Choose Qianci Magnet?
At Qianci Magnet, we pride ourselves on providing custom magnetic solutions tailored to your specific needs. Our commitment to innovation and quality ensures that you receive a product that is both reliable and effective.
Get in Touch
For more information or to place an order, please contact us at shirley.chen@debo-autokit.com or visit our website at www.oem-magnets.com.
