Product Introduction

What is magnetic filter?

Magnetic filtration is a method of removing iron particles from products in liquid or fluid form and is also known as a magnetic coolant separator. The magnetic filter is a filtering and sorting device that uses magnetic force to adsorb fine iron impurities in fluids and semi-fluids. It allows fluid to flow around the magnetic rod or core. This high-power neodymium magnet magnetic filter is a filtering and sorting device that uses magnetic force to adsorb fine iron impurities in fluids and semi-fluids. Used to attract iron particles, this is a method that can be used in almost any environment. and remove them from machine coolants, cutting fluids, oils and lubricants. Magnetic filters make this filtration simple and effective.

How does filters magnet work?

Filters are installed at the desired location along the path of the liquid or slurry.When the material flows through the magnetic filter, iron impurities will be firmly adsorbed on the magnetic surface, thereby effectively purifying the material and protecting the safety of downstream equipment.One common form of magnetic filter is a flow configuration in which particles flow through specific slots that are magnetized so regular flow is not interrupted.

Essential details

Place of Origin:Fujian, China
Brand Name:QC
Model Number:SWMG15/15S
Type:Permanent
Composite:NdFeB Magnet
Shape:Bar
Application:Industrial Magnet
Tolerance:±1%, 0.05mm-0.1mm
Processing Service:Bending, Welding, Decoiling, Cutting, Punching, Moulding
Grade:N35 N38 N40 N42 N45 N48 N50 N52, neodymium magnet

Delivery Time:8-14 days
Size:150X150X40MM
Coating:Ni,Zn, NiCuNi
Magnetism direction:Axially Magnetized
Weight:2.2kg
Processing:Sintered Permanent Neodymium Magnet
Max Working Temperature:80 Celsius
Magnet shape:Bar Magnet
PAYMENT:30% Deposit 70% Balance before shipping
Type of Magnet:Ndfeb Permanent Magnet

Supply Ability
Supply Ability:500000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details:Inner sponge paper outsourcing five floor double corrugated boxes. If you have any other package requirement. Please contact us.
Port:Xiamen

Lead time:

Quantity(pieces)	1 - 10000	>10000
Lead time (days)	14	To be negotiated

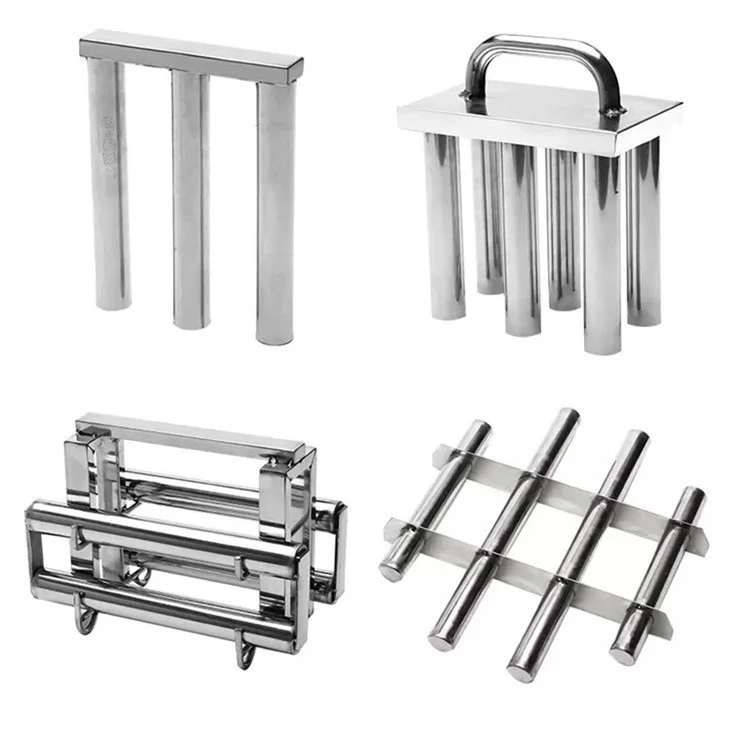

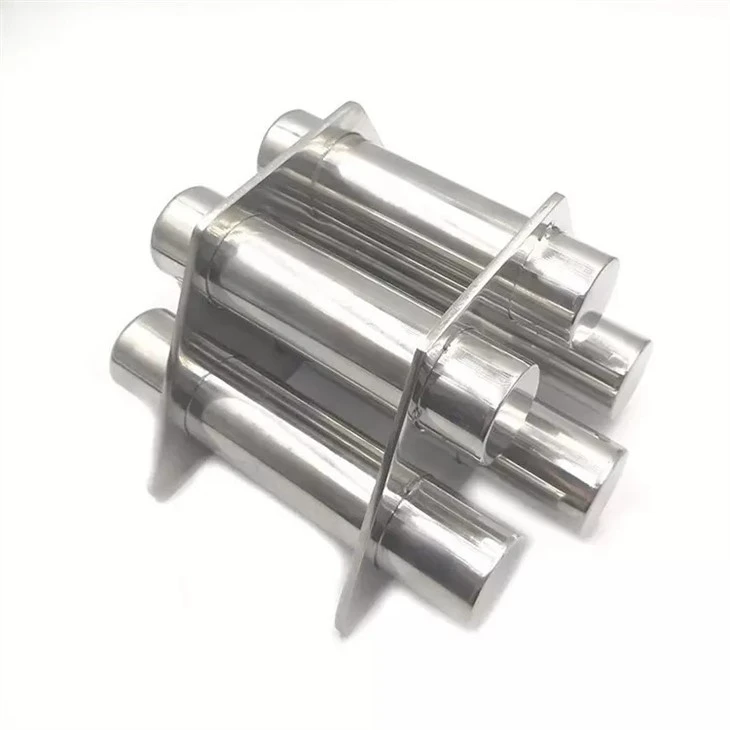

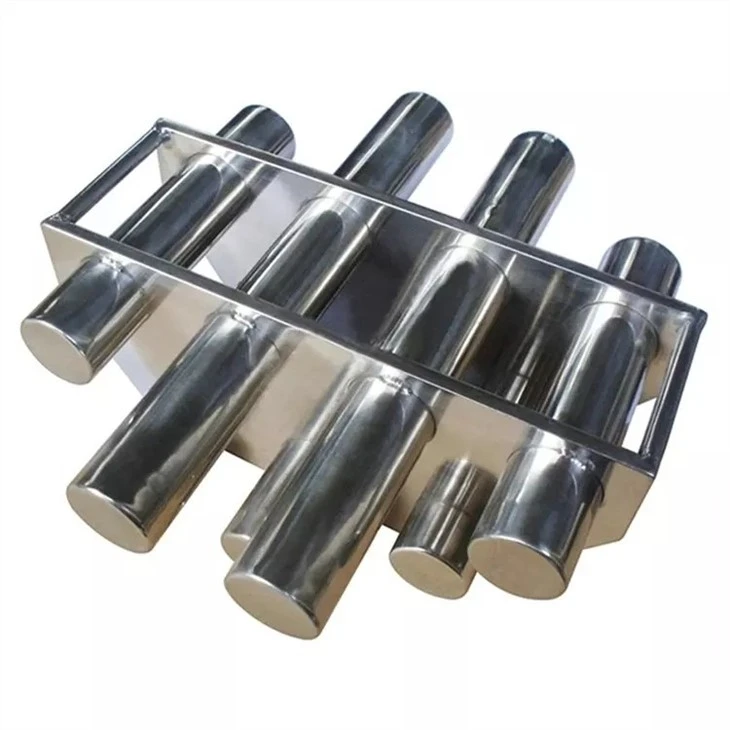

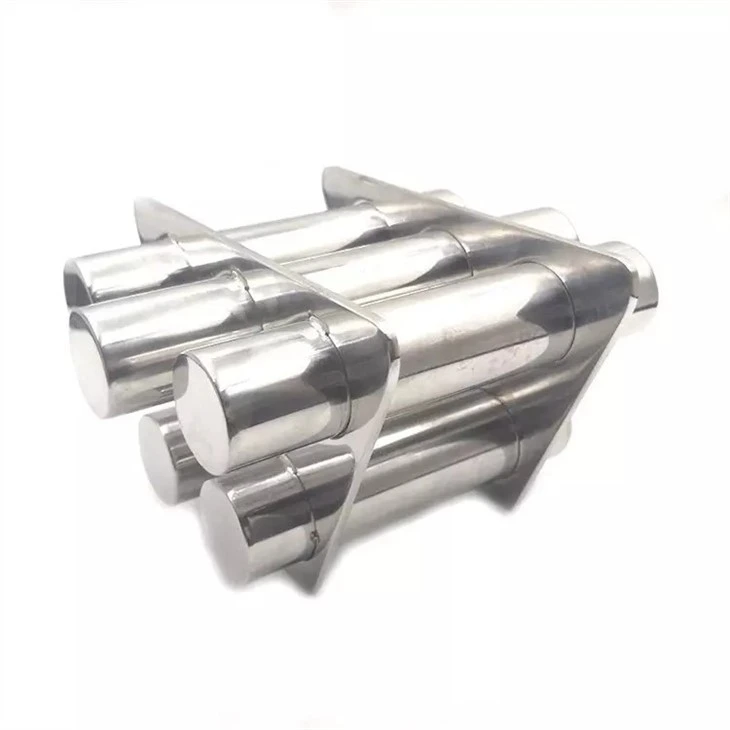

Product Name:Magnetic Filter/ Filter Magnet / Magnetic Eliminator

1. Features: Frame and tube material is 304 or 316L stainless steel, good corrosion resistance and no pollution.

2. Standard magnetic bar is: D25mm, the length will according to your request, we can make it from 100-2500mm.

3. Surface gauss: 8000-13000Gs.

4. Surface treatment: The frame and magnetic bar surface can be fine polished and full welded to meet food grade or pharmacy application.

5. Work temperature: Standard working temperature<80 degree, if needed, max. working temperature from 80-350 degree.

ITEM NO.	SIZE(MM)			BARS	WEIGHT(KG)
ITEM NO.	A	B	H	BARS	WEIGHT(KG)
SWMG10/10S	100	100	40	2	1
SWMG15/15S	150	150	40	3	2.2
SWMG20/20S	200	200	40	4	3.7
SWMG25/25S	250	250	40	5	5.5
SWMG30/30S	300	300	40	6	8
SWMG35/35S	350	350	40	7	10
SWMG40/40S	400	400	40	8	13.5
SWMG45/45S	450	450	40	9	17
SWMG50/50S	500	500	40	10	20.5

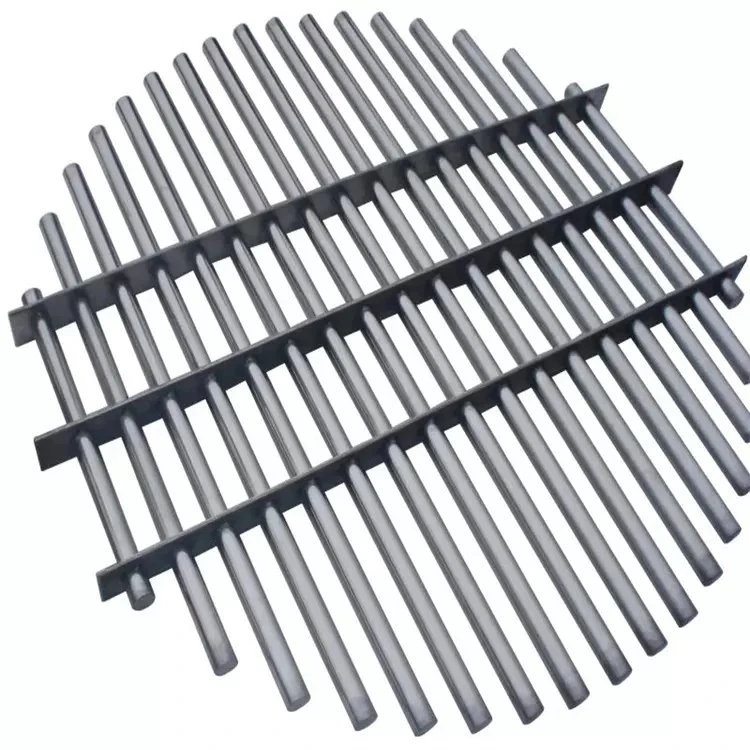

Round magnetic grate model:
Magnetic grids are widely used in chemical, food, medicine and other fields. The maximum surface Gaussian of the magnetic grid can reach about 15000GS. The size and length of the magnet filter tube and the shape of the frame can be varied according to customer requirements.

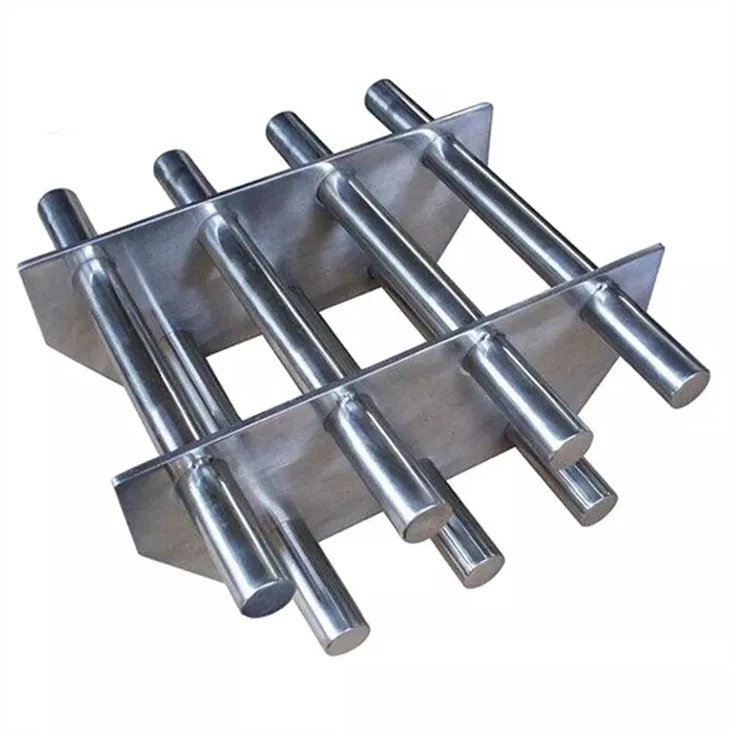

Square magnetic grate model:

Item	A	B	H	Bars	Weight(kg)
MG10/10S	100	100	40	2	1
MG15/15S	150	150	40	3	2.2
MG20/20S	200	200	40	4	3.7
MG25/25S	250	250	40	5	5.5
MG30/30S	300	300	40	6	8
MG35/35S	350	350	40	7	10
MG40/40S	400	400	40	8	13.5
MG45/45S	450	450	40	9	17
MG50/50S	500	500	40	140	20.5
