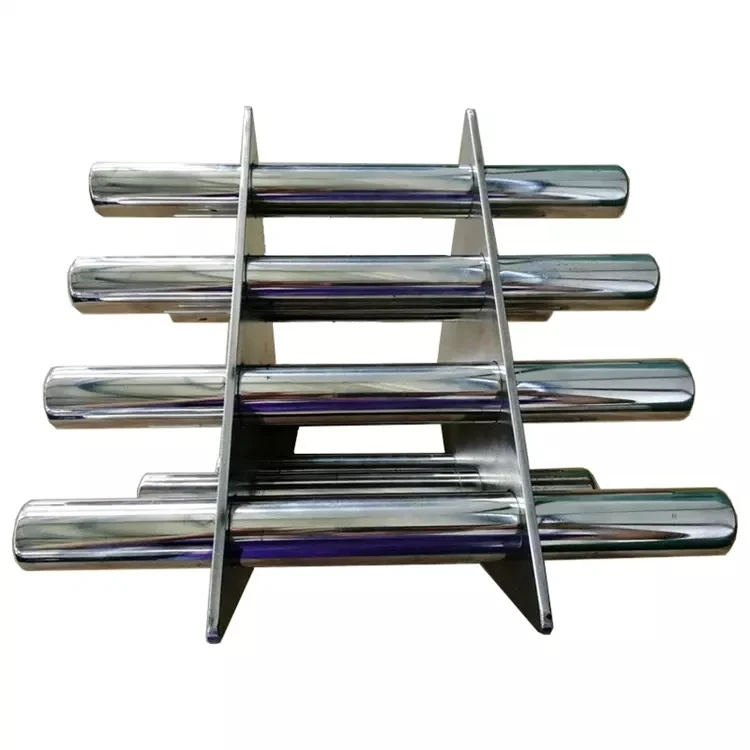

Magnetic Grid

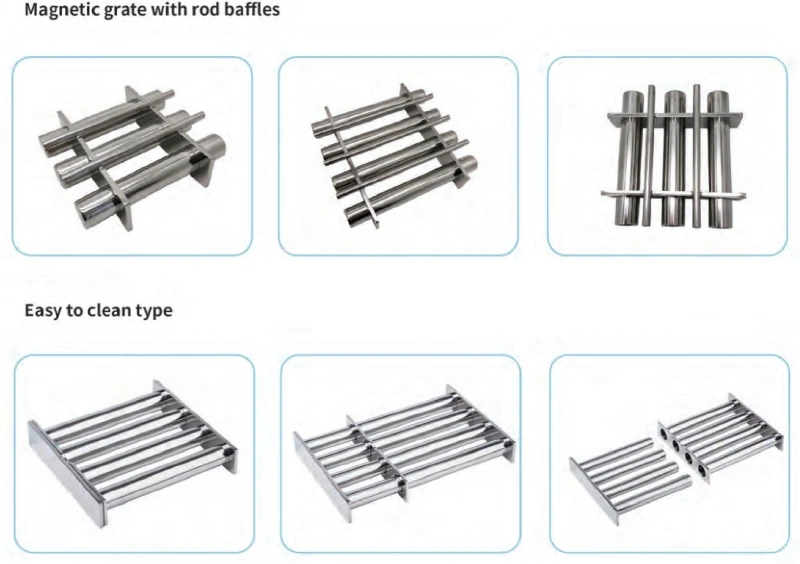

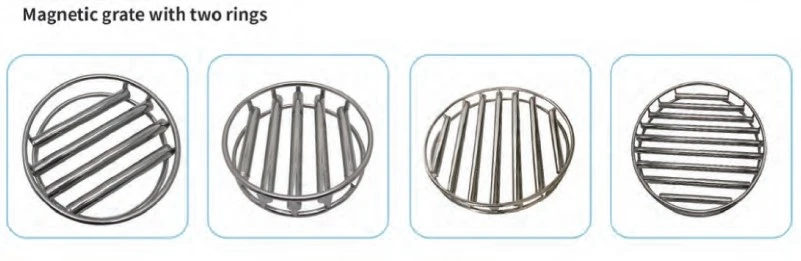

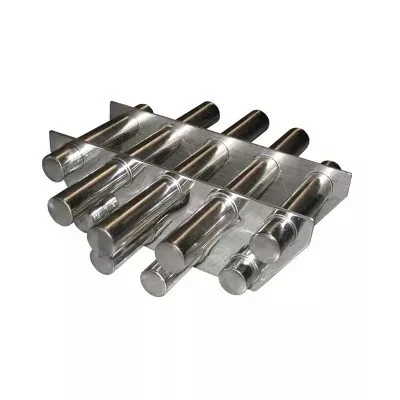

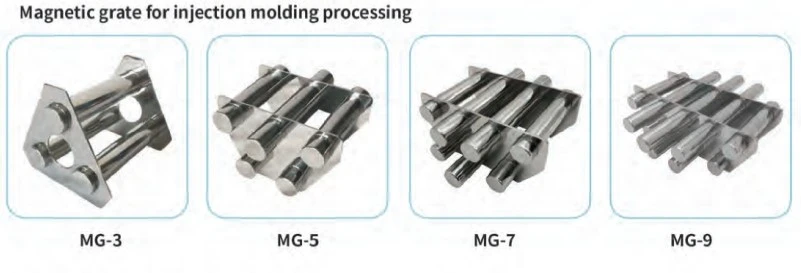

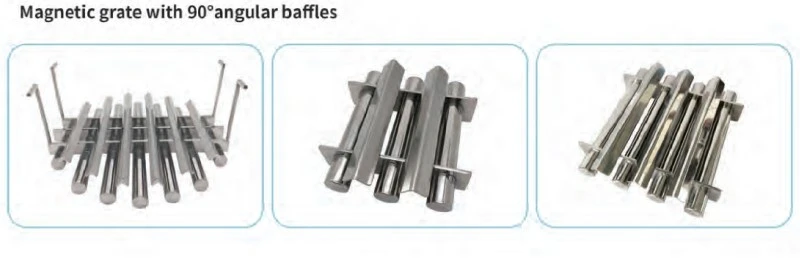

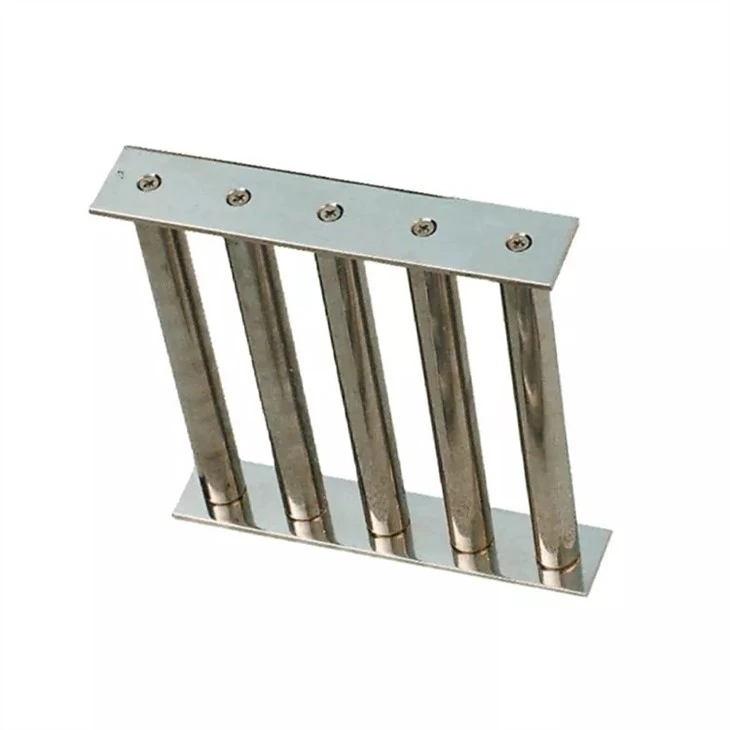

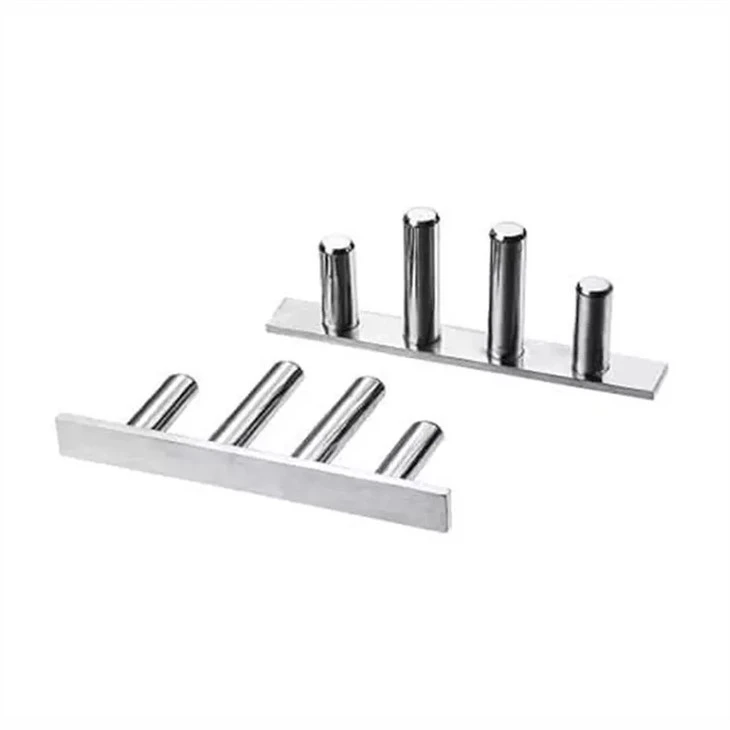

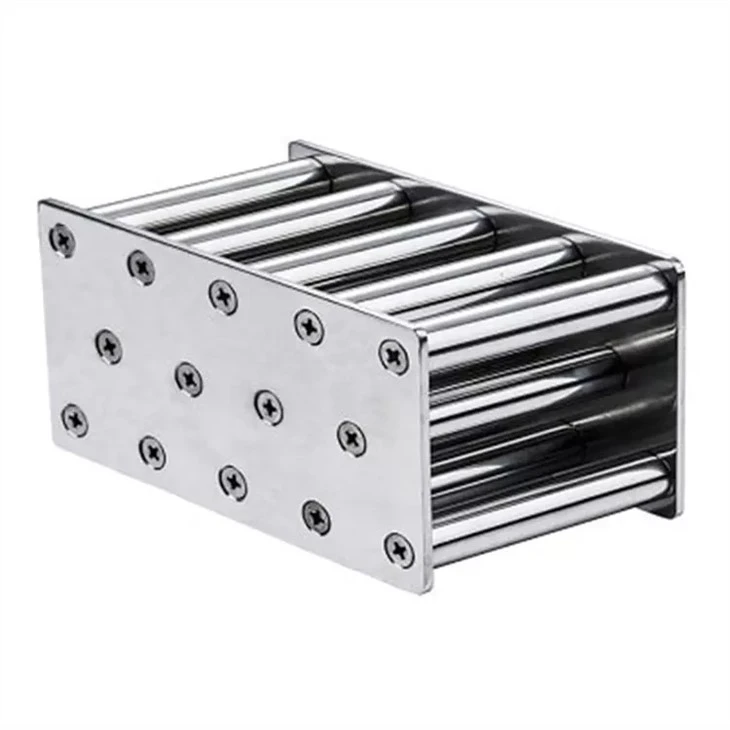

Magnetic Grids filter metal particles and debris in food, pharmaceutical, plastic, and ceramic applications. They can be mounted or laid in separation boxes, chutes, drawers, hoppers, and rectangular housings. Made of magnetic bars and a stainless steel frame, the Magnetic Grids are simply screwed together so they can be easily disassembled when cleaning is required.
Performance
Magnetic performance: 10000, 12000, 13000, 14000 and 15000 Gauss
Performance reading: Tube surface
Magnet grade: N35 and N45 - check and confirm by hysteresis diagram before use
Temperature: Standard operating temperature ≤80°C, maximum operating temperature can reach 350°C on request.
Filter rod diameter: QCM standard diameter 25 mm, other commonly used diameters D10, D16, D19, D20, D22, D28, D32, D38, D50, D76, D100
Magnetic flux density: 600mT (milli-Tesla)
Certification: RoHS, REACH, UV resistant, SSNT 1000h, Code of Conduct
Magnetic field: 30 mm
Advantages:
Easy installation
Reduces the risk of "sparking"
Removes micron-level contaminants
Meets audit requirements
Very compact installation
Extracts particles invisible to the naked eye (30 μm)
Easy to clean
Easy to install in pipes and hoppers
Long-lasting suction
Customized product:
