Magnetic Neodymium Grate

Magnetic Neodymium Grates are specialized magnetic separators designed to remove ferrous metal contaminants from bulk materials during processing. They are particularly effective in industries such as food processing, pharmaceuticals, and plastics, where maintaining product purity is crucial.

Key Features of Neodymium Grates

- Material Composition: These magnetic grids are made from high-strength neodymium magnets, one of the strongest permanent magnets available. The magnetic strength of the bars can be customized and is currently produced by QCM (10,000 gauss, 12,000 gausses, 13,000 gausses, 14,000 gausses, 15,000 gausses), which is effective in capturing even very small ferrous particles.

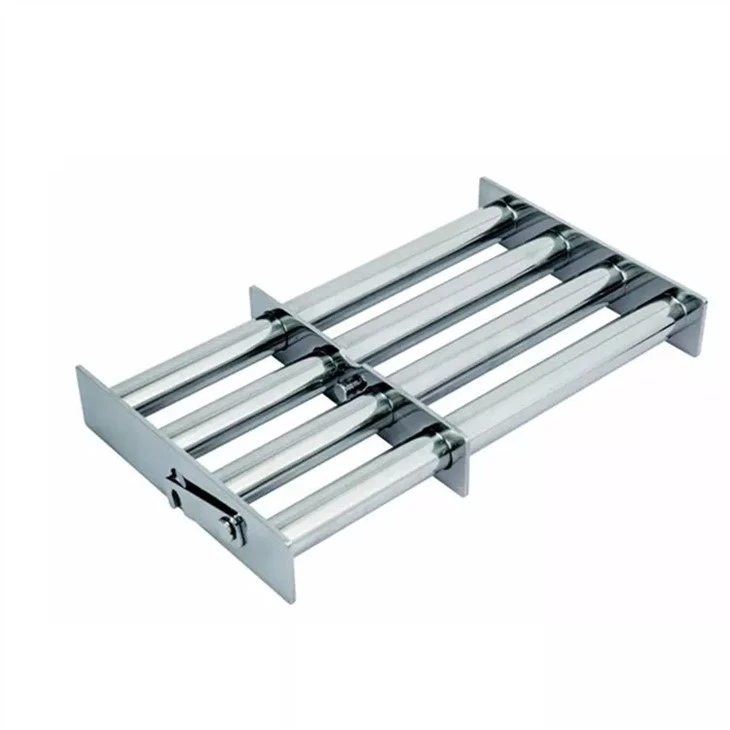

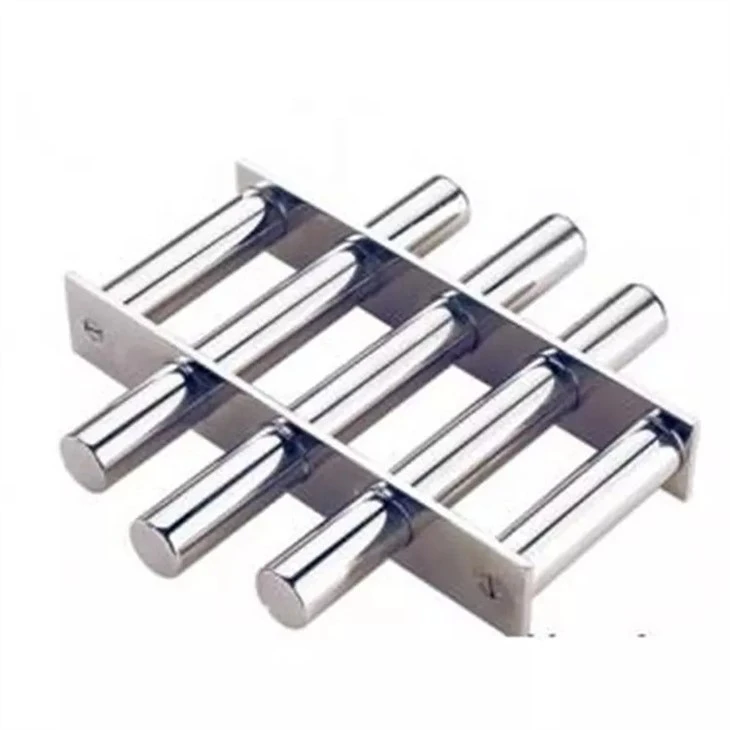

- Design: Magnetic grates consist of multiple magnetic rods arranged in a grid pattern within a stainless steel frame. This design allows materials to flow through while the rods capture metal contaminants. The rods are made from food-grade stainless steel (SUS316 grade), ensuring they can withstand harsh cleaning agents and maintain hygiene standards.

- Operating temperature: Standard operating temperature > 80°C, can also be customized to a maximum of 300°C.

- Welding Requirements: Can be seamlessly welded to meet food and sanitation industry standards.

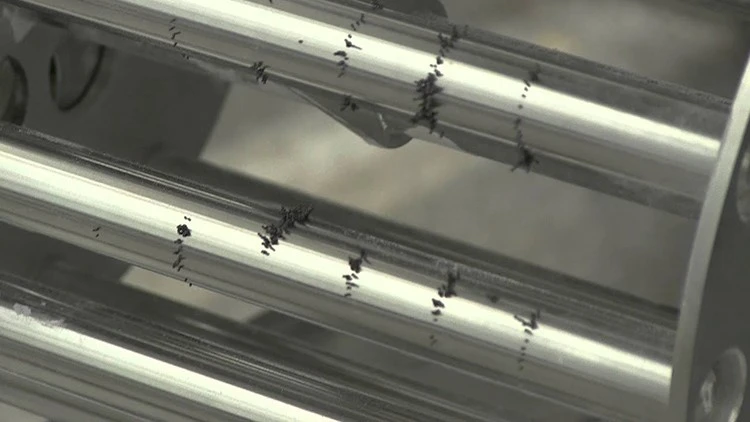

- Ease of Maintenance: The design facilitates easy cleaning; operators can quickly remove the magnetic rods to dispose of collected contaminants without significant downtime.

Applications

Magnetic Neodymium Grates are widely used in various applications:

- Food Industry: To ensure that food products are free from metal contaminants, enhancing safety and compliance with health regulations.

- Pharmaceuticals: To protect sensitive products from contamination during manufacturing processes.

- Plastic and Chemical Industries: To prevent damage to machinery caused by ferrous debris in raw materials.
