Mag Filter

Mag Filter Grate

The Mag Filter Grate is a robust, one-piece magnetic unit for separating ferrous particles from free-falling materials. Made of corrosion-resistant stainless steel, it offers customizable sizes, high Gauss strength, and can operate in various temperatures, suitable for food and pharmaceutical industries.

Send Inquiry

Product Introduction

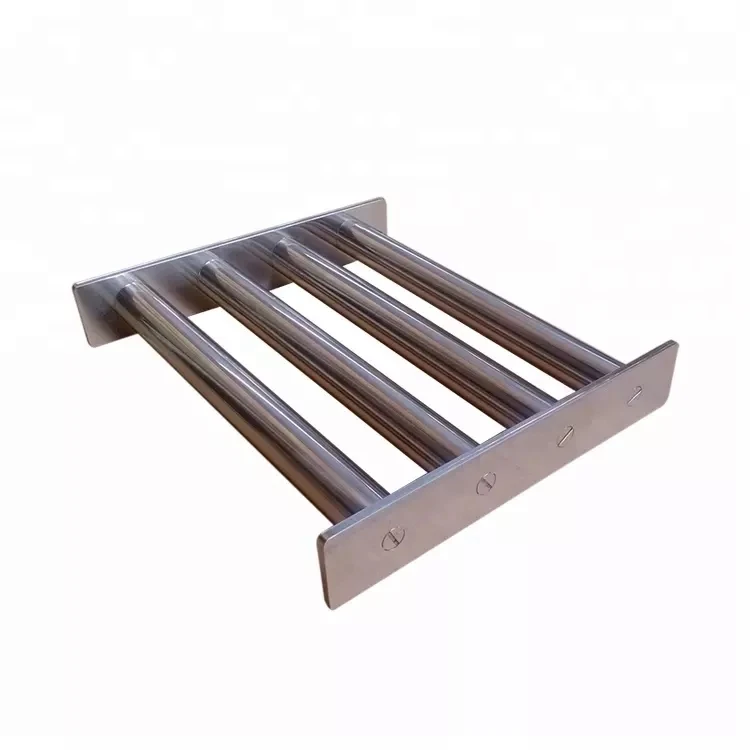

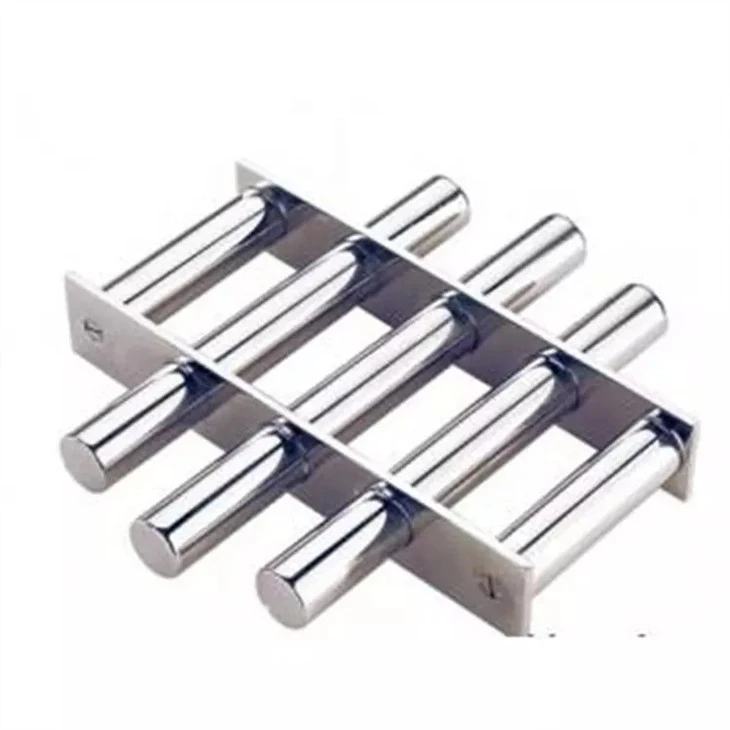

The Mag Filter Grate comprises magnetic rods and frames welded together to form a sturdy one-piece unit, ideal for applications where particles are free-falling. These units can be mounted (or simply laid) in hoppers, outlets, conveyors, etc. to separate ferrous particles mixed with dry, granular or free-flowing materials.

Specification

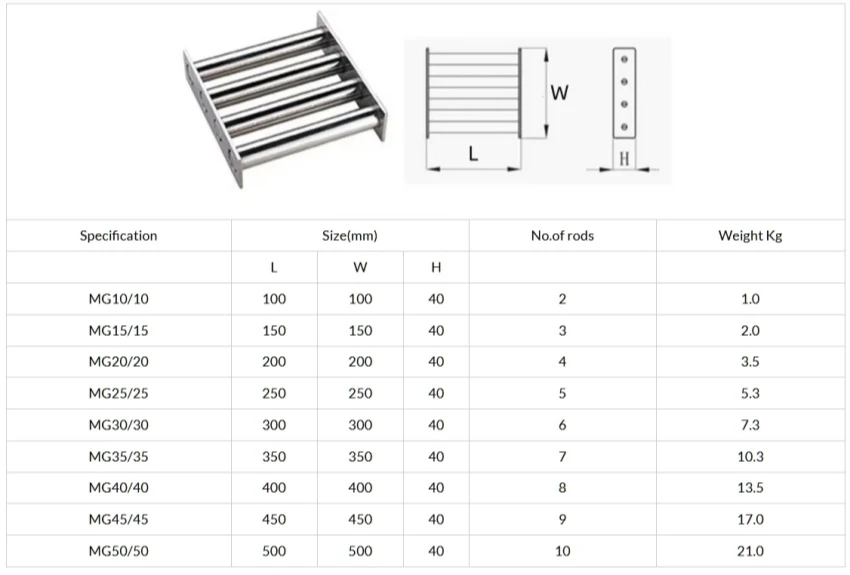

Square magnetic grid standard size

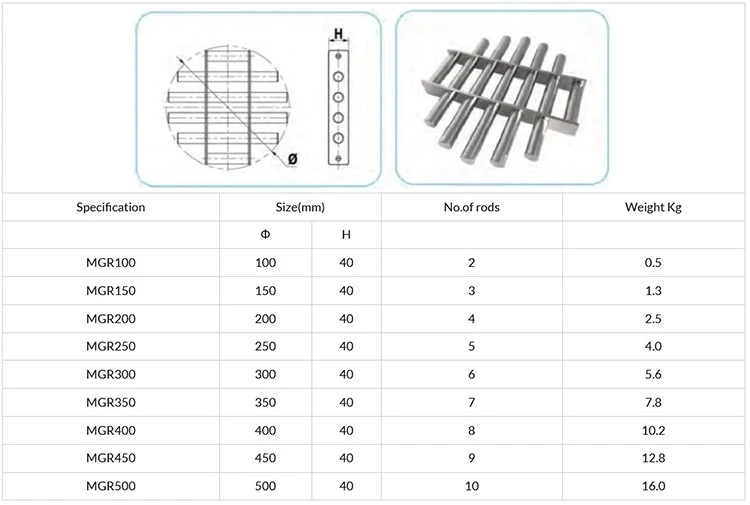

Round magnetic grate standard size

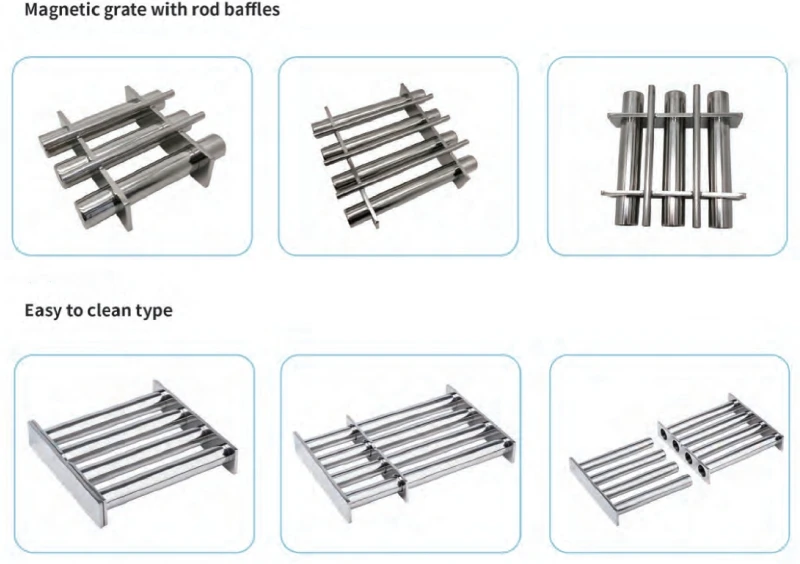

Optional features:

1. Features: The frame and tube are made of 304 or 316L stainless steel, which is good for corrosion resistance and does not pollute.
2. The standard magnetic bar is: D25mm, the length can be according to your requirement, and we can make it from 100-2500mm.
3. Surface Gauss: 10000-15000Gs.
4. Surface Finish: The frame and magnetic bar surface can be finely polished and seamlessly welded to meet food-grade or pharmaceutical applications.
5. Operating Temperature: Standard operating temperature <80 degrees Fahrenheit, maximum operating temperature 80-350 degrees Fahrenheit if required.

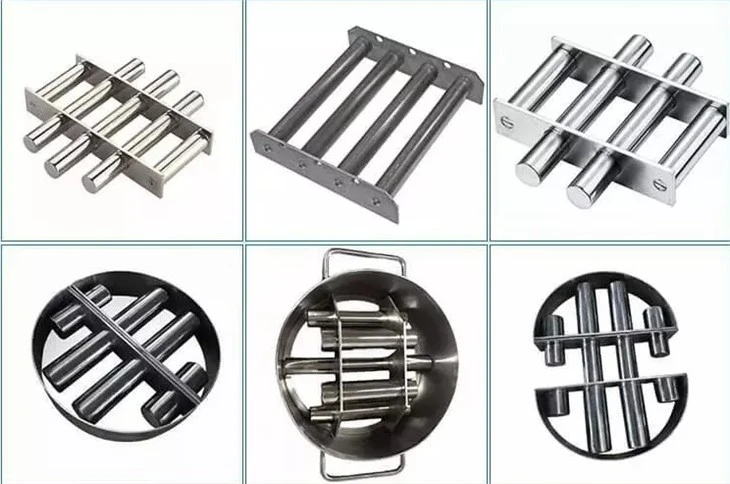

6. Size and Shape: Any size and shape, e.g. square, rectangular, round.

Customized product:

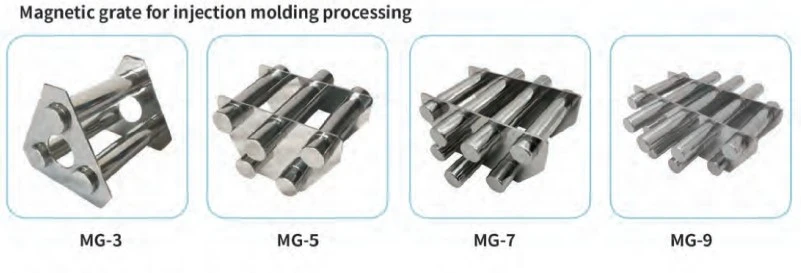

Magnetic grate for injection molding processing
