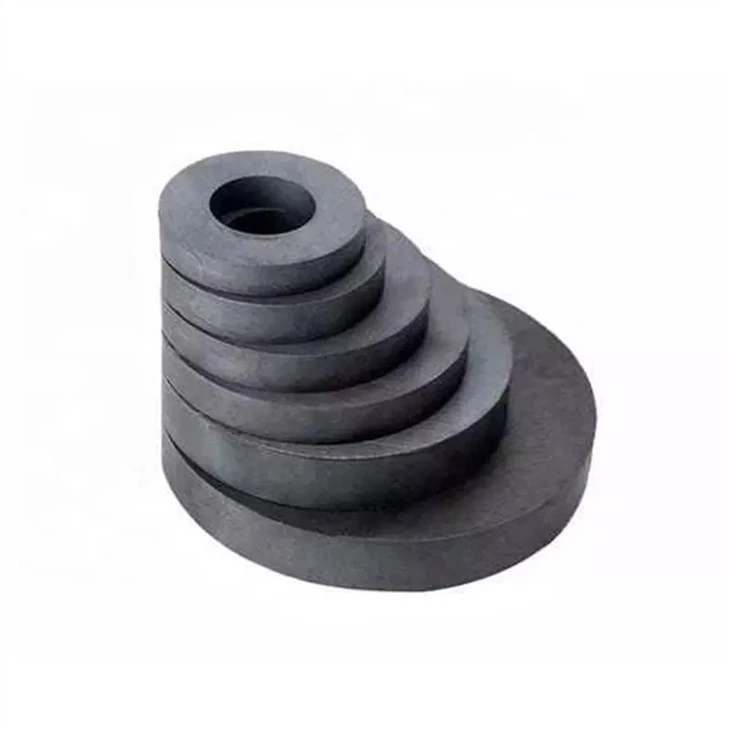

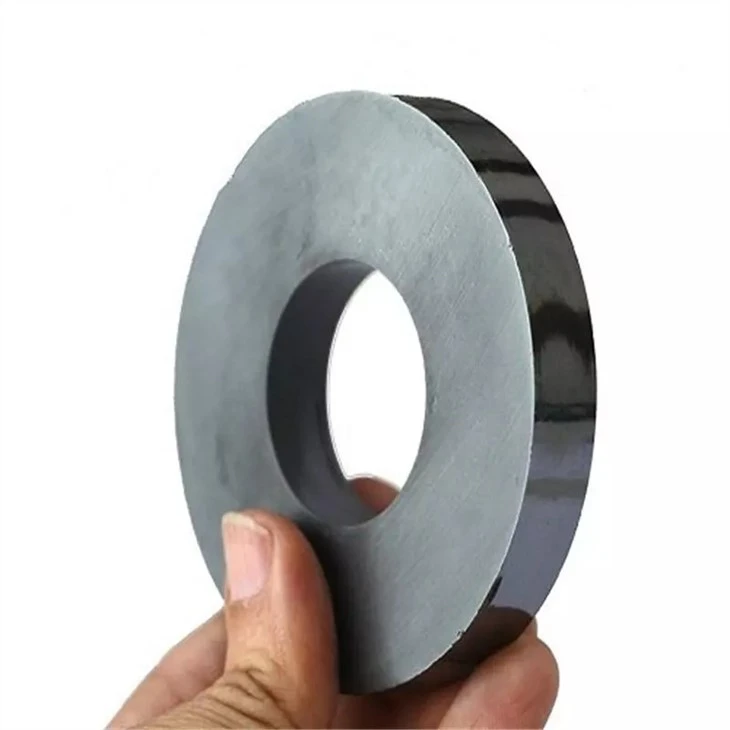

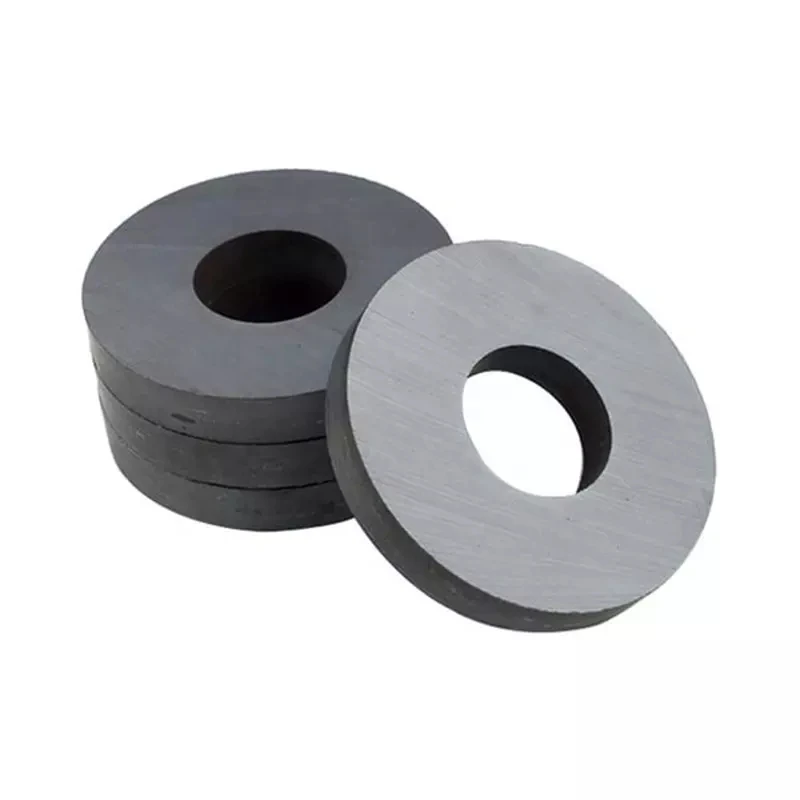

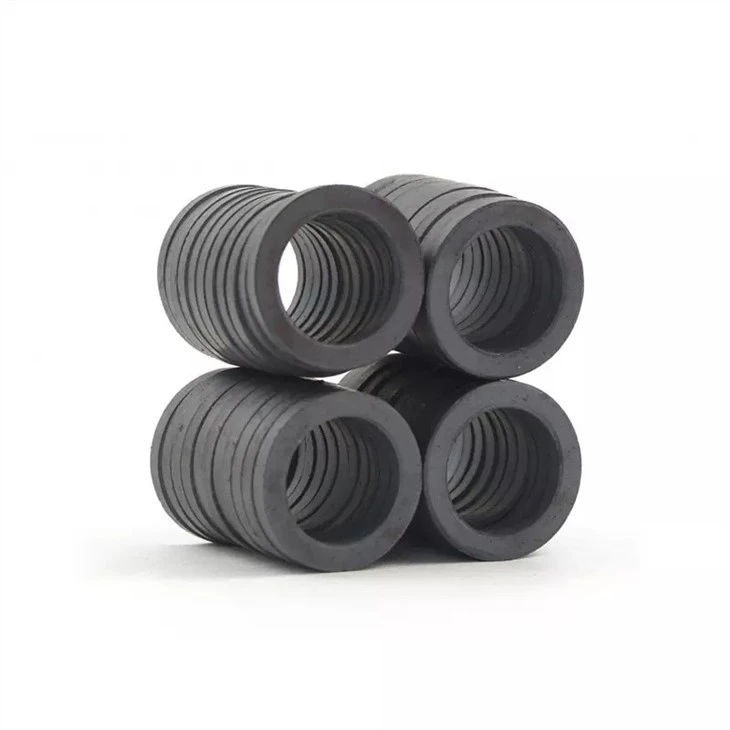

Ring Ferrites

1. Material: SrO, BaO, Fe2O3

2.Grade: Y10T,Y20,Y25,Y30,Y30BH,Y35, etc

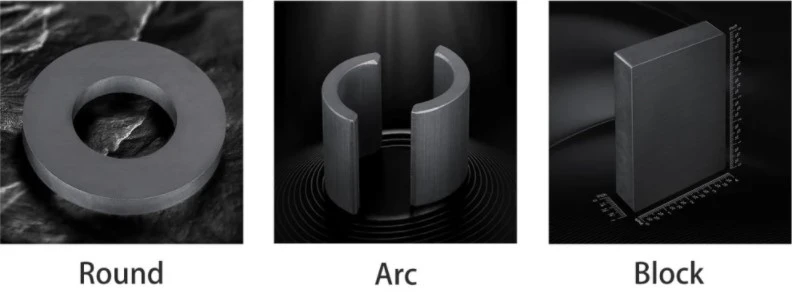

3. Size and Shape: Arc, Segment, Block, Ring, and up to customer's request.

5. Application: Widely used in ammeter, audio, phone, TV, dynamo, Motors, Meters, Speakers, Sensors, Medical Machine products, Magnetic Sport products, etc

Specification	Hole diameter	L(cm)	W(cm)	H(cm)
45x8mm	22mm	4.50	2.20	0.80
50x10mm	22mm	5	2.20	1
60x10mm	32mm	6	3.20	1
70x10mm	33mm	7	3.20	1
80x10mm	32mm	8	3.20	1
80x15mm	41mm	8	4	1.50
90x15mm	45mm	9	4.50	1.50
100x15mm	45mm	10	4.50	1.50
100x15mm	60mm	10	6	1.50
110x15mm	60mm	11	6	1.50
120x20mm	60mm	12	5	2
156x20mm	80mm	15.60	8	2
220x25mm	110mm	22	11	2.50

Ferrite magnets, also known as Ceramic Magnets, still offer benefits in terms of their incomparable cost performance and high corrosion resistance. Ferrite magnets can be divided into Sintered Ferrite Magnets and Bonded Ferrite Magnets according to the manufacturing process. A Ferrite disc magnet is also measured by diameter (D) and thickness (T) which is exactly similar to a Neodymium disc magnet. Ferrite disc magnets can be supplied in a variety of sizes and across a broad of simple applications, including fridge magnets, souvenir magnets, and whiteboard magnets. Besides the above civilian applications, ceramic disc magnets also can be applied to sensors, electricity meters, instruments, and medical apparatus.

Packaging & Shipping

Package: Inner sponge paper outsourcing five floor double corrugated boxes. If you have any other package requirements. Please contact us.

Our package is to better ensure the safety of your goods, professional environmentally, friendly, convenient, and efficient packaging services will be provided.



FAQ

Q1: What's your advantage?

A: Honest business with competitive prices and professional service on the export process.

Q2:How I believe you?

A: We consider honesty as the life of our company, we can tell you the contact information of some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, that your order and money will be well guaranteed.

Q3:Where are you? Can I visit you?

A: Sure, welcome to visit our factory at any time.

Q4: How about the delivery time?

A: Within 15-35 days after we confirm your requirement.

Q5: What information do I need to provide to you before the quotation?

 A: a. Dimension or drawing with tolerance.

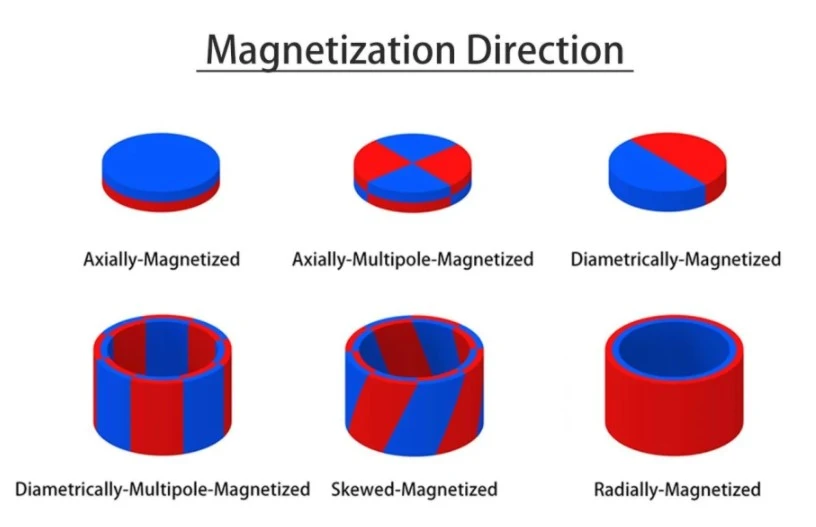

b. Magnetic Direction

c. Magnet grade or pull Force

d. Coating

e. Quantity and delivery time

What kind of payment does your company support?

A: T/T, 100% L/C at sight, Cash, and Western Union are all accepted.

Q7: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
