High Intensity Square Magnetic Grid

We bring you a high strength magnetic grid iron remover that has a magnetic force of 10,000-15,000 gauss and can capture metal particles as small as 30 microns. It consists of an arrangement of magnetic tubes which are then fixed in a square frame. You can determine whether or not you need an outer frame depending on the usage scenario.

For some customizable details, you can further communicate with our sales staff for consultation.

Optional features:

Surface treatment: polishing, sandblasting;

Surface material: SUS304, SUS316;

Common levels of magnetic strength of magnetic bars: 10000Gauss, 12000Gauss, 13000Gauss, 14000Gauss, 15000Gauss;

Working temperature: <80℃, <100℃, <120°C, <150°C, <180℃, <200℃, <300℃;

Size and shape: The size and shape can be made into multi-layer type, circular ring, irregular polygon, semicircle, etc. according to requirements;

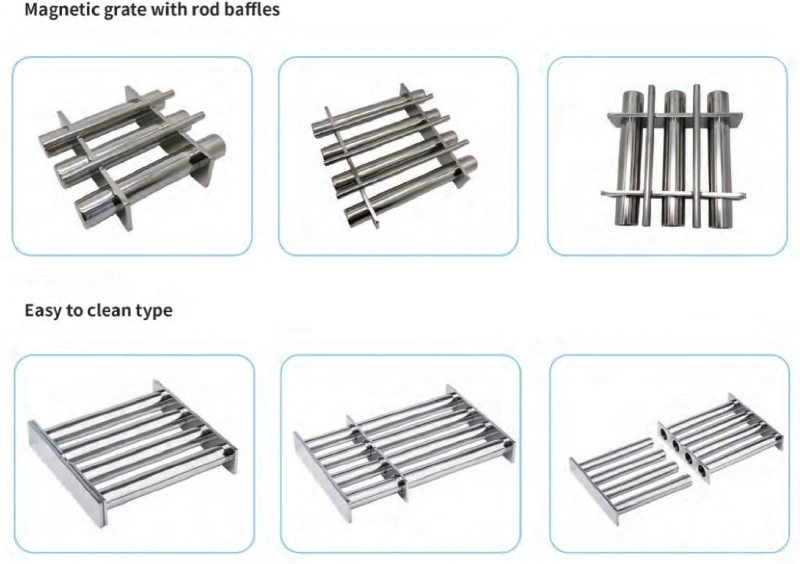

Cleaning method: conventional type, easy-to-clean sleeve type.

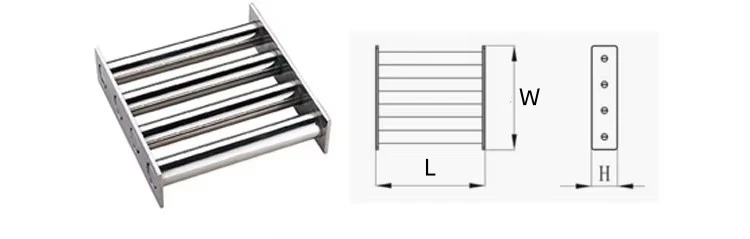

Square shape available in standard sizes

      If you have Square Magnetic Grid purchasing needs, this is a very cost-effective product. We are a large-scale production factory, and our output can meet the needs of large orders. And product quality is guaranteed. Our products have passed 3C certification and related industry standards. If you don't know much about us, you can try ordering in small quantities. After you have experienced our products, you can make larger purchases. Our customers are all over the world and can be customized according to customers' different product needs.
