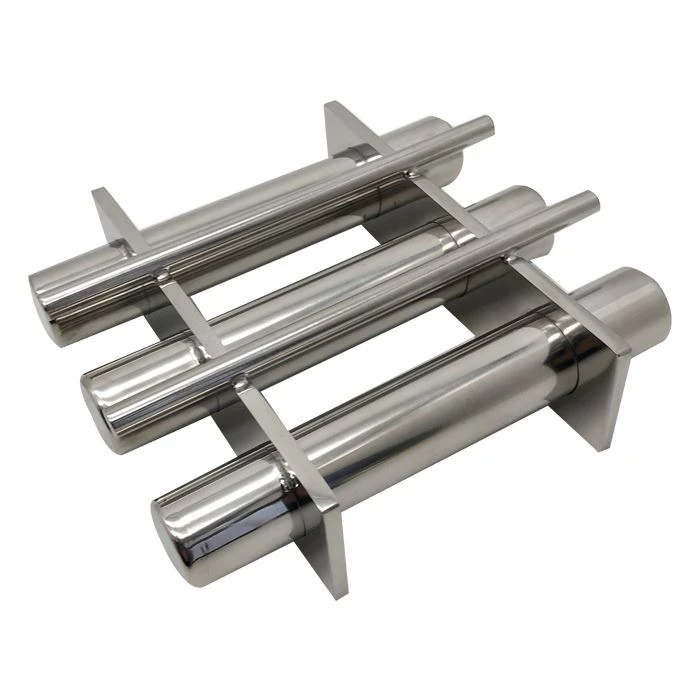

Neodymium Grate Magnets with Rod Baffles
Magnetic grates with rod baffles are specialized devices designed to separate ferrous contaminants from free-flowing materials in various industrial applications. These grates consist of a framework of stainless steel that houses magnetic rods, which create a strong magnetic field to attract and hold metal particles.
Key Features of Magnetic Grates with Rod Baffles
- Construction: Magnetic grates are made from stainless steel (SUS304 or SUS316) and contain rods that can be filled with rare earth magnets. The rods are arranged in a grid pattern, allowing materials to flow through while capturing ferrous debris.
- Functionality: The primary function of these grates is to remove fine iron contamination from various products such as sugar, grain, plastic granulate, and powdered chemicals. They are installed at outlet points in processing lines or hoppers, where the material can pass directly over the magnetic rods.

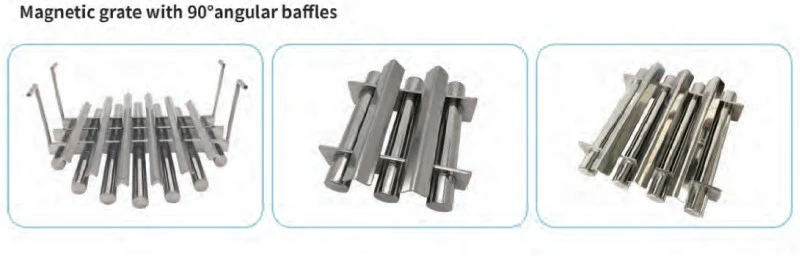

- Baffle Design: Rod baffles are included to optimize the flow of materials over the magnetic rods. They help direct the product stream, ensuring that it comes into contact with the magnets effectively. This design enhances the efficiency of ferrous particle capture while maintaining a steady flow of materials.
Customized product:
Magnetic grate with rod baffles

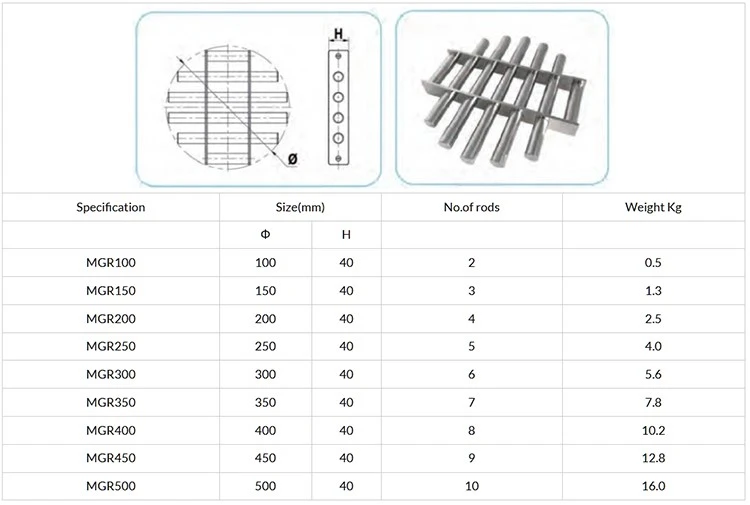

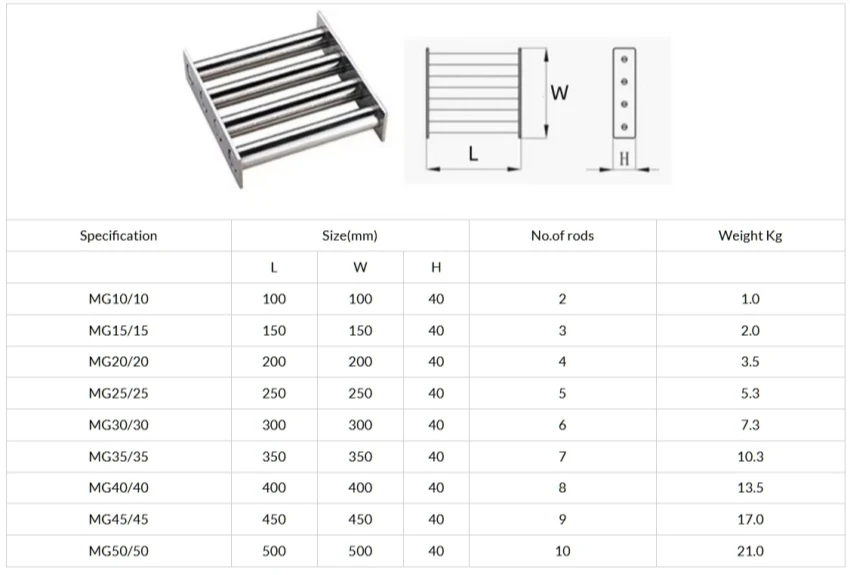

- Customization: Magnetic grates can be customized in terms of size and shape to fit specific applications. They are available in round, square, rectangular, and even custom shapes to accommodate different industrial setups.
- Applications: These devices are widely used in industries such as food processing, pharmaceuticals, plastics, and chemicals to ensure product purity by preventing contamination from ferrous materials.
Advantages
- Effective Contamination Removal: The high-density magnetic field created by the rods is effective at capturing small ferrous particles that can produce quality.
- Ease of Installation and Maintenance: Magnetic grates can be easily installed within existing infrastructure and are designed for straightforward cleaning and maintenance.
