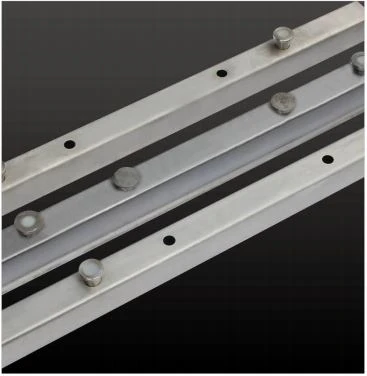

Magnetic Formwork System For Precast Concrete Industry

The Magnetic Formwork System is an innovative technology for the precast concrete industry. It consists of a formwork system with an integrated magnetic mechanism, which is particularly suitable for the production of complex elements such as slender concrete structures, double-walls and grid-beam ceilings. The system magnetically holds the formwork firmly in place, ensuring precise alignment and stability of the elements, while simplifying the process of installing and removing the formwork.

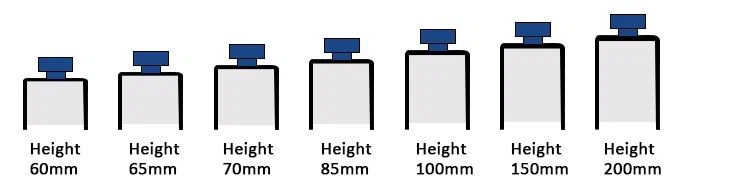

Height of Magnetic Formwork System

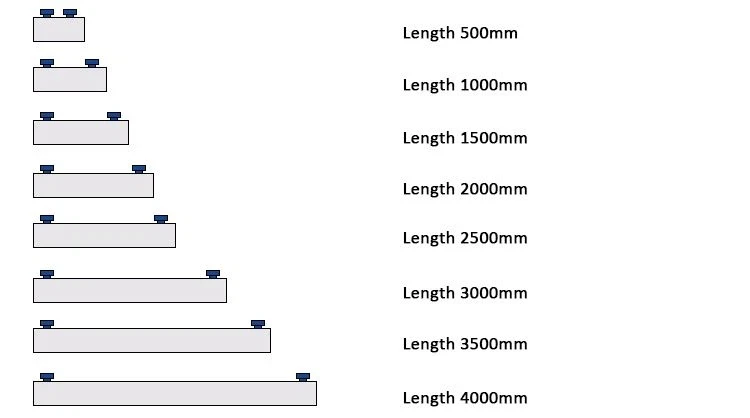

The length of the Magnetic Formwork System

The main features of the magnetic formwork system include:

- Simple and safe operation

- Easy maintenance due to open system design

- Magnetic force of up to 900 kg, depending on the ground material (steel, thickness, temperature, roughness)

- Formwork can be replaced by removing only three screws

- The shell used is a stainless steel profile, resistant to concrete corrosion.

- Easy to clean

- A spring element under the button helps to unlock the magnetic force during the demoulding process.

In addition, the Magnetic Formwork System offers the following advantages:

- Increased efficiency: The Magnetic Formwork System provides quick and easy formwork placement and stripping processes, speeding up production cycles and increasing overall productivity.

- Increased Flexibility: The Magnetic Formwork System is very flexible and can be adjusted to different geometries and sizes to accommodate different precast concrete elements.

- Precise alignment: Magnets ensure precise alignment and tight joints between formwork elements and formwork tables, reducing deviations and potential errors in the finished product.

- Cost savings: The magnetic formwork solution can reduce the use of bolts/clamps and reduce the formwork loss rate, which can reduce labor costs by 30% compared with traditional formwork. At the same time, it protects production materials and ensures the long service life and perfect surface quality of the formwork.

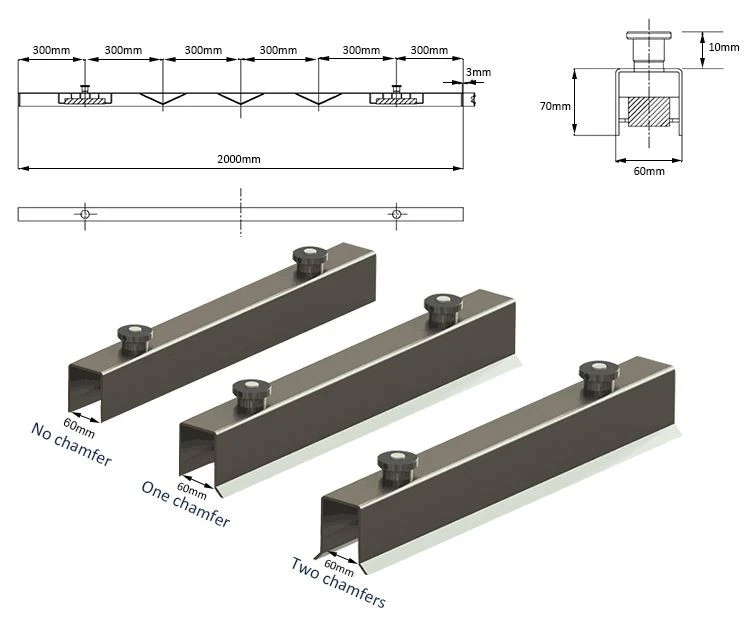

Magnetic Formwork System comes with a chamfering function

In precast concrete production, the Magnetic Formwork System significantly reduces installation time and final production costs by simplifying the installation and dismantling of formwork. It is suitable for the systematic production of facade panels, mezzanine walls, solid walls and floor slabs, and its lightweight design, with lengths of up to 3.98 meters and heights ranging from 60mm to 400mm, makes it both lightweight and attractive for both manual operation and robotic arm/gate systems.
